Description
915nm 10W Fiber Coupled Diode Laser
Features：
915nm wavelength
10W output power
105µm fiber core diameter
0.22N.A. 1040nm-1200nm feedback protection
Applications：
Laser pumping
Medical Use
Material Processing
Optical Data:
CW-Output Power: 10w
Center Wavelength: 915±10nm
Spectral Width (FWHM): 6nm
Wavelength Shift with Temperature: 0.3nm/℃
Wavelength Shift with Current: 1nm/A

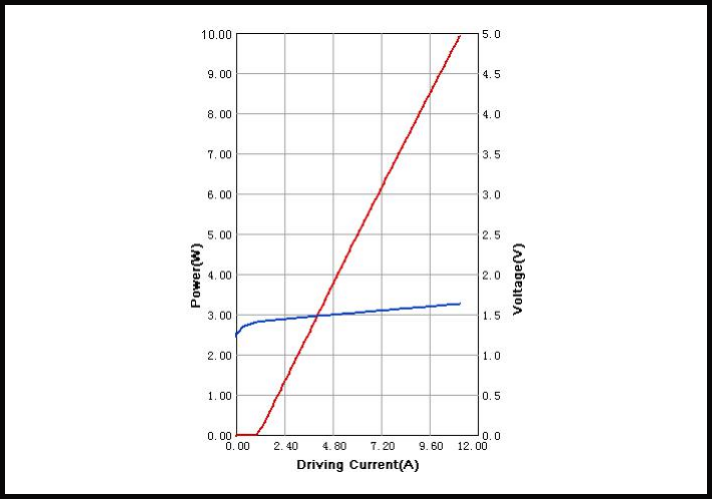

Electrical Data:
Electrical-to-Optical Efficiency: 45%
Operating Current:12~13A
Threshold Current: 0.9A
Operating Voltage: 1.6~2
Slope Efficiency: 0.9
Fiber Data:
Core diameter: 105μm
Cladding diameter: 125μm
Buffer diameter: 250μm
Numeric aperture: 0.22
Total Fiber length：0.9~1m
Fiber Loose Tubing Diameter/Length: 0.9mm PVC 1.5cm
Minimum Bending Radius: 60mm
Fiber termination:no
Feedback Isolation：
Wavelength Range:1040~1200nm
Isolation: 30dB
Others:
ESD: 500V
Storage Temperature（Non-operating）: -20~70
Lead Soldering Temp: 260℃
Lead Soldering Time: 10sec
Operating Case Temperature: 15~35℃
Relative Humidity: 15~75%
Please kindly check the datasheet:
