Description
940 nm 50 mW Laser Diode QSI Infrared Laser Module Diode TO-18

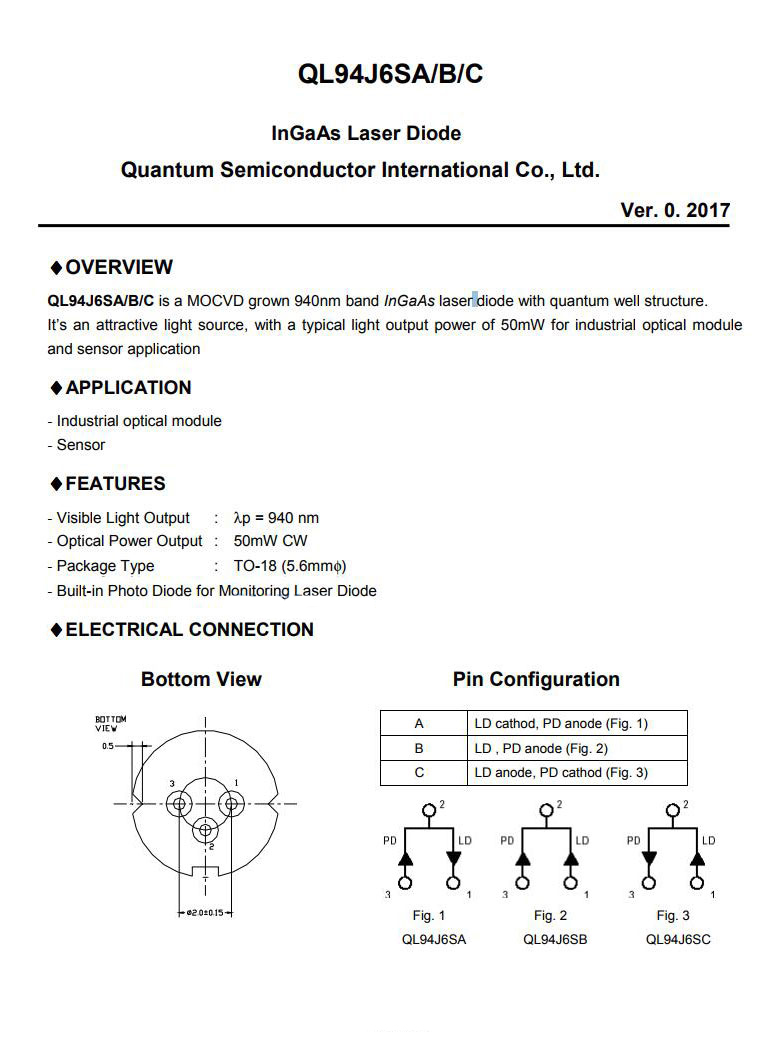

QL94J6SA / B / C is a MOCVD grown 940 nm band InGaAs laser diode with quantum well structure. It’s an attractive light source, with a typical light output power of 50 mW for industrial optical module and sensor application.
[Feature]
1. Wavelength: 940 nm (standard)
2. Optical power output: 50 mW CW
3. Package type: TO-18 (5.6 mmφ)
4. Built-in photodiode for laser diode monitoring
[Use]
1. Industrial optical module
2. Sensor
940 nm laser diode : fiber coupled laser diodes from 250 mW singlemode up to 200 W multimode
RPK940S Fiber Coupled Laser Diode, 940nm, Single emitter
Key Features: 10W CW output power 940nm 105µm core diameter MM fiber 0.22 Numerical Aperture Highly efficient Highly stable Superior beam quality Long diode lifetime
