Description

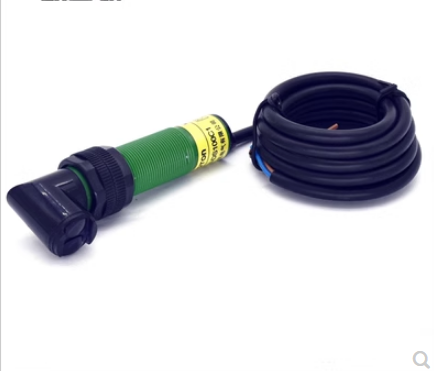

Elbow infrared diffuse reflectance photoelectric switch with adjustable sensing distance with reflector sensor

Model: E3FN-DS100C1
Material: Polymer
Installation size: installation diameter 18mm
Output current: 300mA max
Power supply voltage: DC 6V, 12V, 24V, 36V available
Output voltage: DC 6V, 12V, 24V, 36V
Detection distance: 10CM, 30CM, 100CM, 300CM, 500CM
Response time: 2.5ms
Detect objects: Any opaque object
Output form: DC 3-wire NPN normally open
Waterproof rating: IP67
Protection class: IP54
Housing material: ABS plastic
Protection function: polarity protection. Short-circuit protection
Power cord length: 1.5m
Standard detection object: 5*5 white matte paper
