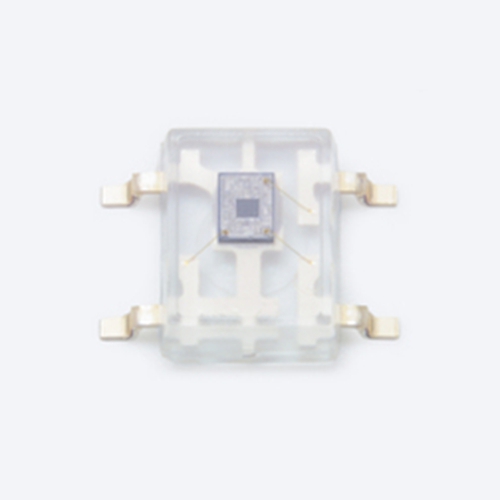

hamamatsu Schmitt trigger circuit photo IC S12558-02DT High reliability photo IC operable at 2.2 V

Download Datasheet:

hamamatsu Schmitt trigger circuit photo IC S12558-02DT High reliability photo IC operable at 2.2 V

The S12558-02DT is a photo ICs comprised of a photodiode, amplifier, schmitt trigger circuit and output transistor, all integrated onto a single chip and molded with clear resin into a miniature package. An optical encoder resistant to tough environmental conditions can be configured by combining the S12558-02DT with infrared LED L6895-10 (made by Hamamatsu).

Features
-Low voltage operation (2.2 V)
-Open collector output
-“L” level output at light input
-Surface mount type (Gull wing type)
