hamamatsu Si photodiode array S10917-35GT RGB color sensor integrated in small and thin package
Download Datasheet:
hamamatsu Si photodiode array S10917-35GT RGB color sensor integrated in small and thin package

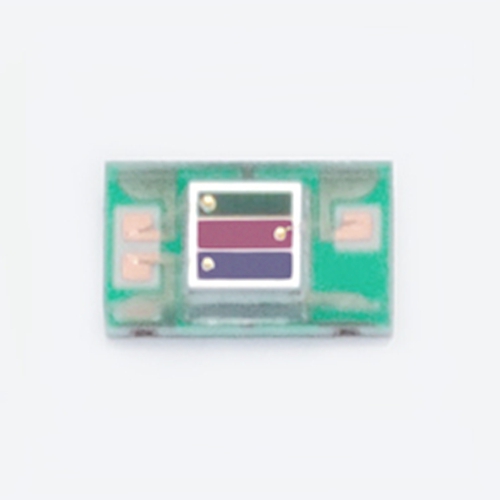

The S10917-35GT is a compact color sensor with a 3-channel photodiode mounted in one package, and sensitive to red (λ=590 to 680 nm), green (λ=470 to 600 nm) and blue (λ=390 to 530 nm) light. An infrared-cut filter is formed on the photosensitive area. This color sensor achieves superior cost performance and is suitable for monitoring brightness of RGB-LED backlight LCD in hand-held devices such as cell phones.
Features
– Infrared-cut filter formed on active area
– Superior cost performance
– Small, thin package: 3.0 × 1.6 × 1.0t mm
– 3-channel (RGB) Si photodiode
– Photosensitive area: 1 × 1 mm/3-segment (RGB)
– RoHS-compatible
– Surface mount type
Specifications
| Product type | RGB photodiode |
|---|---|
| Package material | Plastic |
| Package type | COB type |
| Package size | 3.0 × 1.6 × 1.0 mm |
| Photosensitive area | 1 × 1 mm |

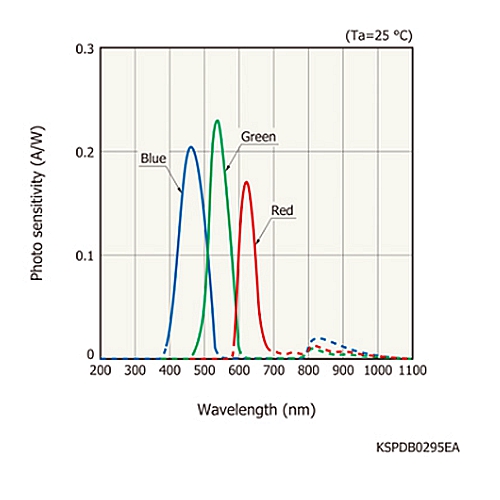

| Spectral response range (Blue) | 390 to 530 nm |
| Spectral response range (Green) | 470 to 600 nm |
| Spectral response range (Red) | 590 to 680 nm |
| Peak sensitivity wavelength (Blue) | 460 nm |
| Peak sensitivity wavelength (Green) | 540 nm |
| Peak sensitivity wavelength (Red) | 620 nm |
| Photosensitivity (Blue) | 0.2 A/W |
| Photosensitivity (Green) | 0.23 A/W |
| Photosensitivity (Red) | 0.17 A/W |
| Dark current (max.) | 0.05 nA |
| Terminal capacitance | 12 pF |
| Rise time | 0.1 μs |
| Operating temperature | -25 to +85 deg.C |
| Storage temperature | -40 to +85 deg.C |
| Measurement condition | Typ. Ta=25 deg.C, per element, Photosensitivity: λ=λp, Dark current (all elements): VR=1 V, unless otherwise noted |
