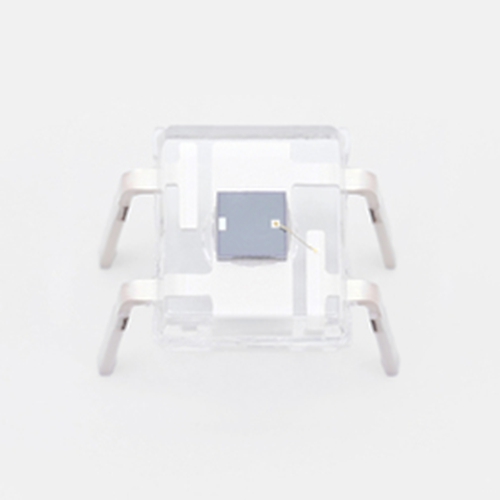

hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package
hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package - Image 2
hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package - Image 3

hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package

$299.00

hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package Download Datasheet: hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package Features – Visible to near IR range (Suppressed IR sensitivity type) Specifications Photosensitive area 1.3 × 1.3 mm Package Plastic Package category — Cooling Non-cooled Reverse voltage (max.) 10 V Spectral…

Category:

Description

hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package

Download Datasheet:

hamamatsu Si photodiode S4797-01 Si Photodiode molded into clear plastic package

Features
– Visible to near IR range (Suppressed IR sensitivity type)

Specifications

Photosensitive area 1.3 × 1.3 mm
Package Plastic
Package category —
Cooling Non-cooled
Reverse voltage (max.) 10 V

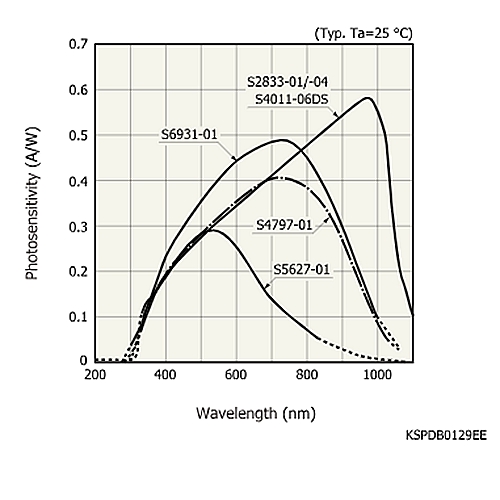

Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 720 nm
Photosensitivity (typ.) 0.4 A/W
Dark current (max.) 20 pA
Rise time (typ.) 0.2 μs
Terminal capacitance (typ.) 50 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
