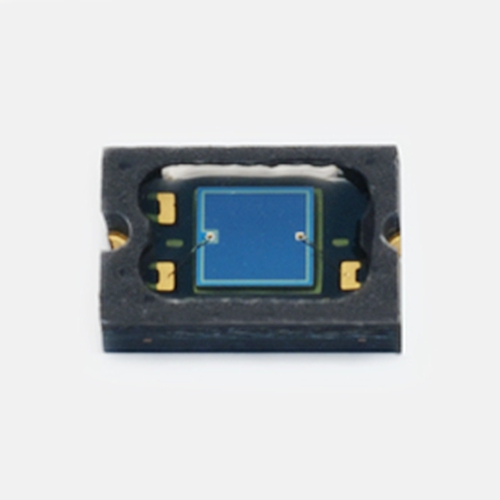

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range

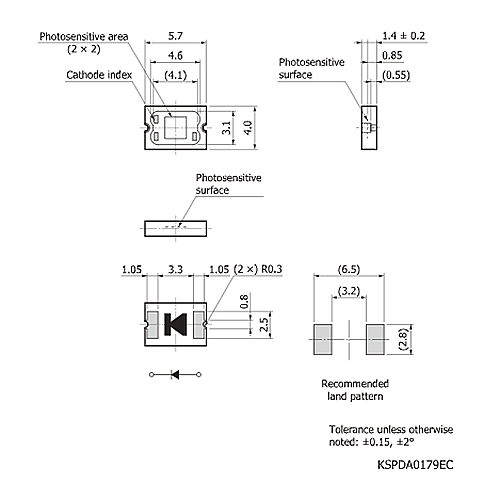

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range - Image 2

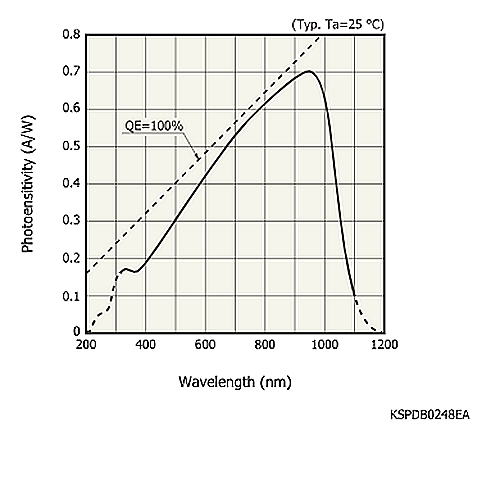

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range - Image 3

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range

$299.00

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range Download Datasheet: hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range The S9674 is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). The…

Category:

Description

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range

Download Datasheet:

hamamatsu Si photodiode S9674 Applicable to lead-free solder reflow and wide temperature range

The S9674 is a photodiode that is applicable to lead-free solder reflow and has an extremely wide operating and storage temperature range (-40 to +125 °C). The small and thin leadless package allows reducing the mount area on a printed circuit board.

Features
– Suitable for lead-free solder reflow
– Surface mount type, small and thin leadless package
– Operating/storage temperature: -40 to +125 °C
– Photosensitive area: 2 × 2 mm
– High sensitivity: 0.7 A/W (λ=960 nm)

Specifications

Photosensitive area 2.0 × 2.0 mm
Package Glass epoxy
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.7 A/W
Dark current (max.) 1000 pA
Rise time (typ.) 2 μs
Terminal capacitance (typ.) 500 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR==5 V, Terminal capacitance: VR=0 V, f=1 MHz, unless otherwise noted
