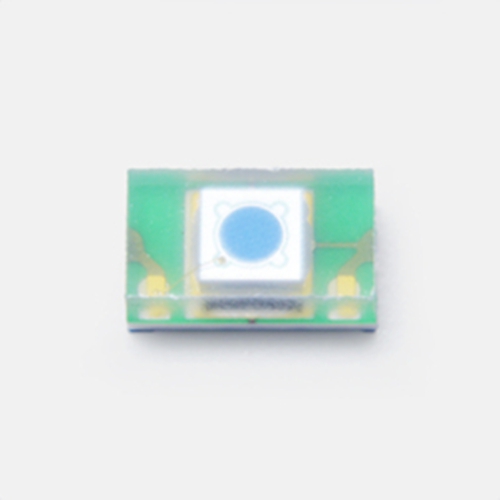

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode

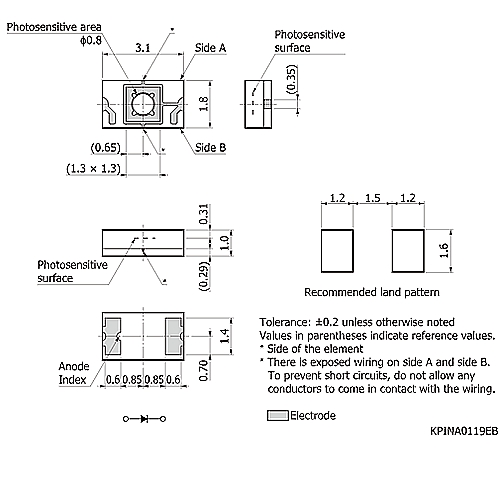

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode - Image 2

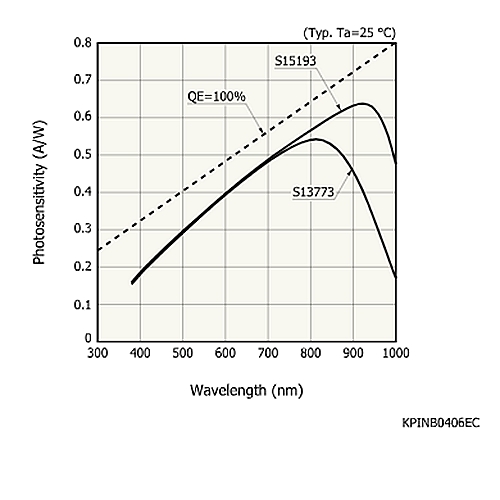

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode - Image 3

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode

$299.00

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode Download Datasheet: hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode The S13773 is a Si PIN photodiode with sensitivities in the visible to near infrared range and is compatible with lead-free solder reflow. The S13773 features high-speed response while the S15193…

Category:

Description

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode

Download Datasheet:

hamamatsu Si PIN photodiode S13773 Surface mount type, high-speed Si photodiode

The S13773 is a Si PIN photodiode with sensitivities in the visible to near infrared range and is compatible with lead-free solder reflow. The S13773 features high-speed response while the S15193 features improved near infrared sensitivity. They are suitable for distance measurement laser monitoring.

Features
– High-speed response: 500 MHz
– Surface mount type
– High reliability (wide temperature range)

Specifications

Photosensitive area φ0.8 mm
Number of elements 1
Package Glass epoxy
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 380 to 1000 nm
Peak sensitivity wavelength (typ.) 800 nm
Photosensitivity (typ.) 0.54 A/W
Dark current (max.) 500 pA
Cutoff frequency (typ.) 500 MHz
Terminal capacitance (typ.) 3 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=λp, Dark current: VR=10 V, Cutoff frequency: VR=10 V, RL=50 Ω,-3 dB Terminal capacitance: λ=830 nm VR=10 V, f=10 MHz, unless otherwise noted
