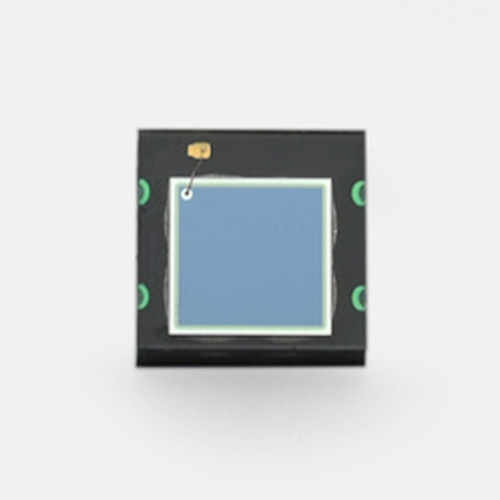

hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow
hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow - Image 2
hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow - Image 3

hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow

$299.00

hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow Download Datasheet: hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow The S16392-01CT is a Si PIN photodiode for visible to near infrared range and is compatible with lead-free solder reflow processes. The small and thin leadless package allows reducing…

Category:

Description

hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow

Download Datasheet:

hamamatsu Si PIN photodiode S16392-01CT COB type, applicable to lead-free solder reflow

The S16392-01CT is a Si PIN photodiode for visible to near infrared range and is compatible with lead-free solder reflow processes. The small and thin leadless package allows reducing the mount area on a printed circuit board.

Features

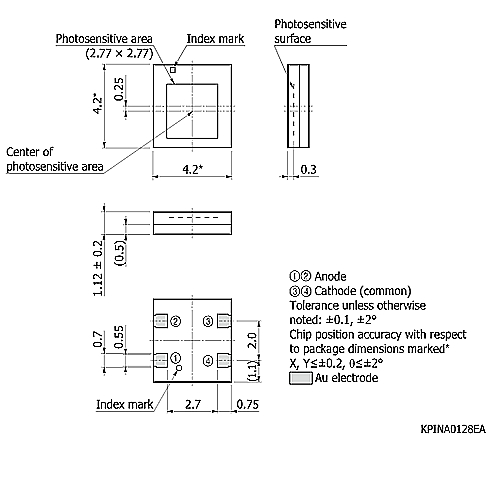

– COB type, small and thin leadless package
– Photosensitive area: 2.77 × 2.77 mm
– High sensitivity: 0.7 A/W (λ=960 nm)

Specifications

Photosensitive area 2.77 × 2.77 mm
Package Glass epoxy
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 20 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.7 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 25 MHz
Terminal capacitance (typ.) 15 pF
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=960 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, unless otherwise noted
