hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package

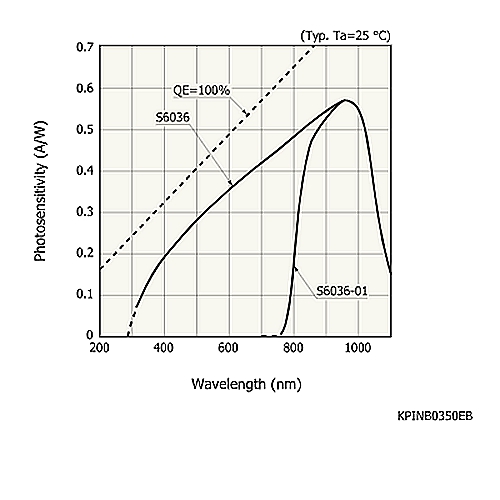

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package - Image 2

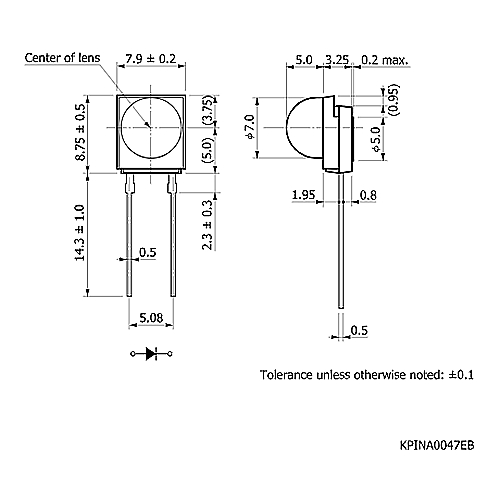

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package - Image 3

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package

$299.00

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package Download Datasheet: hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package The S6036-01 is a Si PIN photodiode molded into a plastic package with a Φ7 mm lens. Features – Plastic package with φ7 mm lens – High-speed response: 25 MHz typ. (VR=12 V,…

Category:

Description

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package

Download Datasheet:

hamamatsu Si PIN photodiode S6036-01 φ7 mm lens plastic package

The S6036-01 is a Si PIN photodiode molded into a plastic package with a Φ7 mm lens.

Features
– Plastic package with φ7 mm lens
– High-speed response: 25 MHz typ. (VR=12 V, λ=850 nm)
– High sensitivity: 0.56 A/W (λ=λp)
– Directivity: ±25° (half angle)
– Visible-cut type

Specifications

Photosensitive area φ7.0 mm
Package Plastic
Package category With lens
Cooling Non-cooled
Spectral response range 760 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.56 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 25 MHz
Terminal capacitance (typ.) 15 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=12 V, Cutoff frequency: VR=12 V, Terminal capacitance: VR=12 V, f=1 MHz, unless otherwise noted
