Description

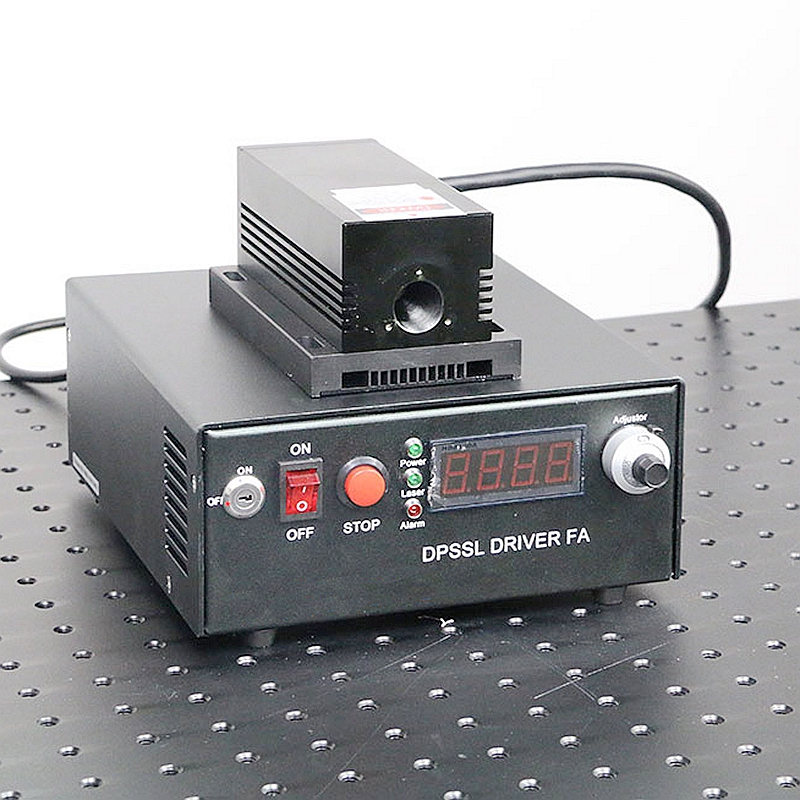

1064nm 12W High Power Semiconductor Laser Diode Laser System

[Specifications]
Product Name: 1064nm IR Semiconductor Laser
Lead Time: 1~3 weeks! Custom product available!
Output Wavelength: 1064nm±20nm
Output Power: 12W
Spatial Mode: Multi-mode
Operating mode: CW or Modulation
Prejudiced way: 10:1
Pointing Stability: <0.05 mrad
Beam diameter: 5mm
Beam Divergence Angle:  5 mrad
Power stability: <±3% per 2 hrs
Bean Height: 29mm
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser Head dimension: Near 155(L)x77(W)x60(H) mm
Power Supply: Split type power supply / Lab Adjustable power supply
Power Supply-1: Split Power Supply (Choose)
Power Supply-2: Lab Adjustable Power Supply (Choose)
Modulation: 0~30KHz Analog or TTL
Warranty: 1 Year
