Description

Single Mode 375nm Laser Diode Ultra Violet from Nichia NDU4116

The NDU4116 from Nichia Corporation is a Laser Diode with Wavelength 370 to 380 nm, Output Power 0.07 W, Operating Voltage 5.4 V, Operating Current 0.11 A, Threshold Current 30 to 75 mA. More details for NDU4116 can be seen below

Product Details

Part Number NDU4116
Manufacturer:Nichia Corporation
Description:Single-Mode LD
General Parameters
Configuration:Single Emitter
Operation Mode:CW Laser
Wavelength:370 to 380 nm
Output Power:0.07 W
Operating Voltage:5.4 V
Operating Current:0.11 A
Threshold Current:30 to 75 mA
Laser Color:Ultra Violet
Fiber Modes:Single Mode
Package Type:TO-Can
Package:5.6 mm
Type:Free Space Laser Diode
Output Power (CW):0.07 W
Physical Properties:RoHS

SPECIFICATIONS (CW MODE)
Optical Output Power: 70mW (@Tc=25°C)
Peak Wavelength: 370nm~380nm
Package: 5.6mm TO-Can
Wavelength Tolerance: +/- 5nm
Threshold Current: 50 mA
Forward Current: 110 mA
Forward Voltage: 5.4 V
Slope Efficiency: 1.2 W/A
Beam Divergence Parallel: 9 degrees
Beam Divergence Perpendicular: 22.5 degrees
ABSOLUTE MAXIMUM RATINGS
Optical Output Power (Tc=25°C): 80 mW
Allowable Reverse Current: 85 mA
PD Reverse Voltage: 5 V
Storage Temperature: -40 ~ 85 °C
Operating Case Temperature: 10 ~ 40 °C

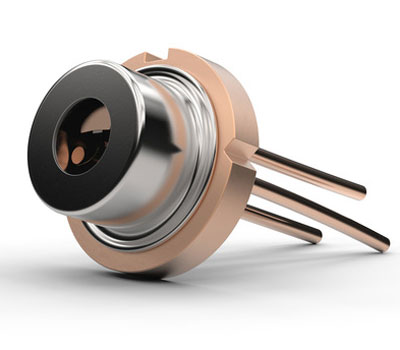

375nm Violet Laser Diode, Nichia pn NDU4116

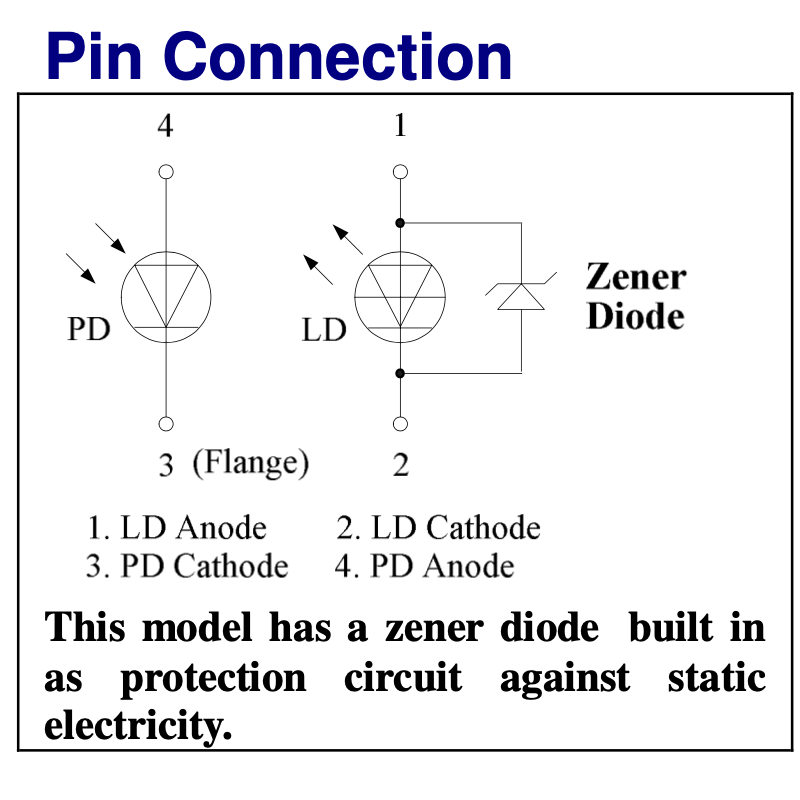

These 375nm laser diodes from Nichia offer single-mode optical output power of up to 70mW. They are housed in a TO-Can type 5.6mm package with a zener diode for electrostatic protection, and a monitor diode for APC mode control.

NDU4116 Features:
Single-Mode Output
Optical Output Power: 70 mW
Package Type: 5.6 mm with Photodiode and Zener Diode

Quality and Reliability
These diode lasers offer exceptional quality and reliability. They are designed with high reliability for critical applications such as their use in equipment used in airplanes, aerospace, submersible repeaters, nuclear reactor control systems, automobiles and traffic control equipment.

As with all Nichia components, these lasers are only available directly from Nichia. Please consult Nichia’s sales staff directly for price and delivery quotation.
