Description

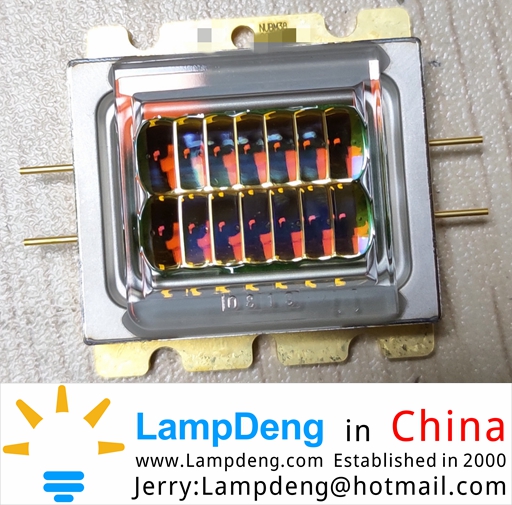

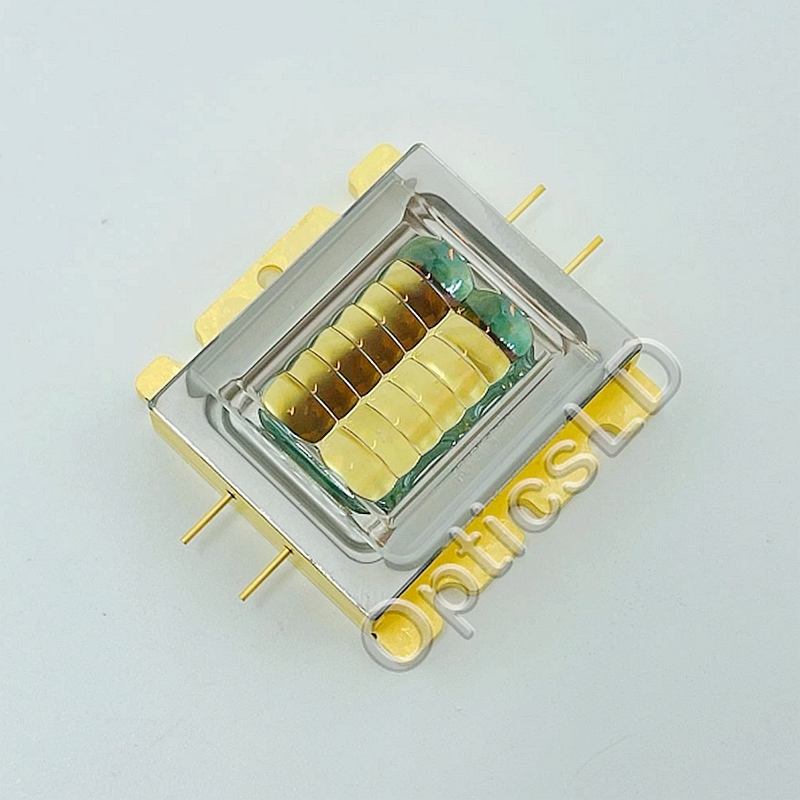

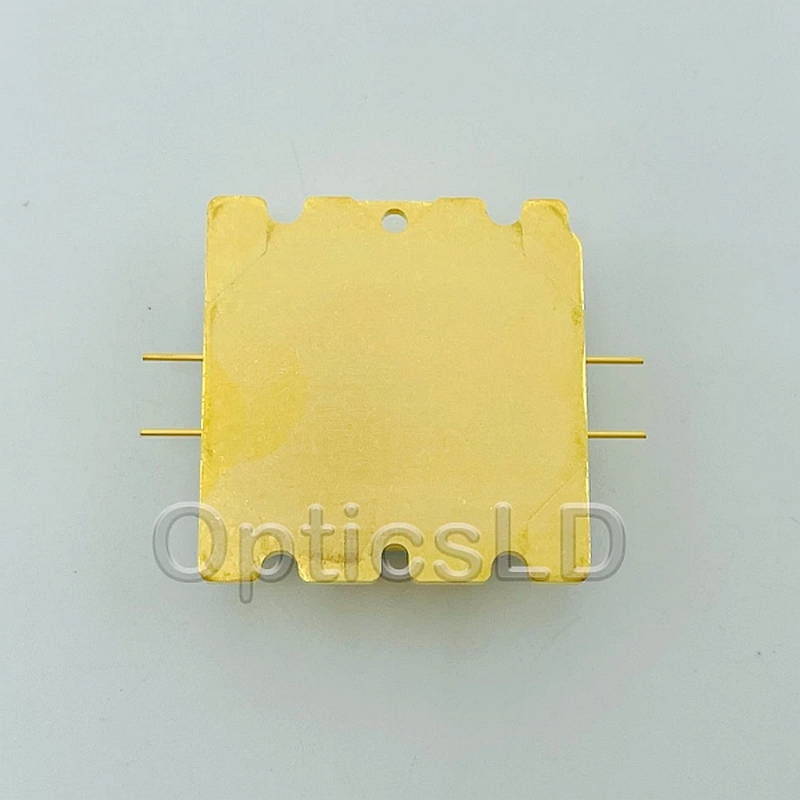

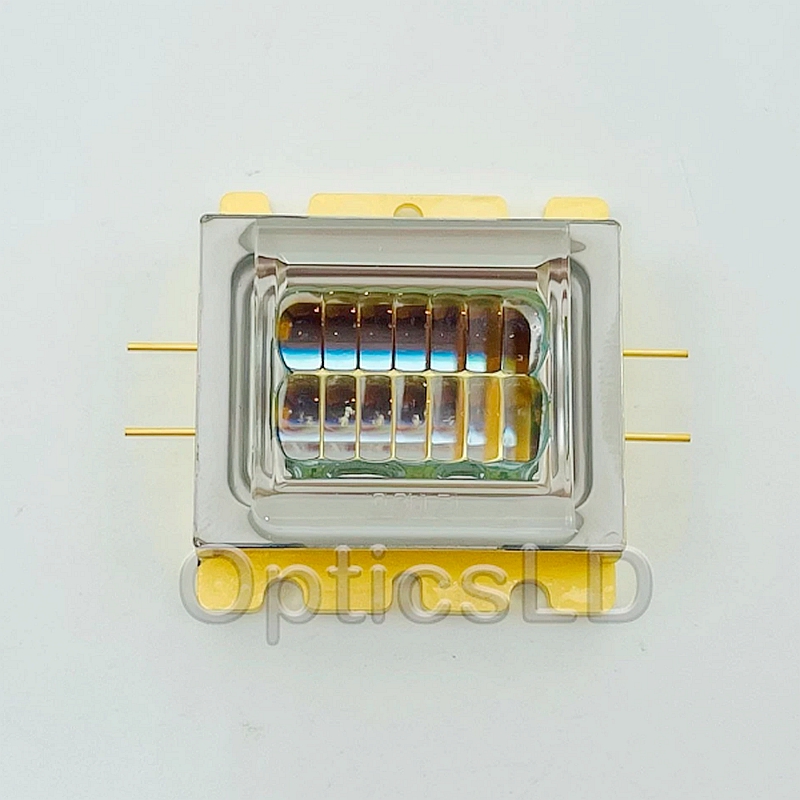

Nichia NUBM35 Blue 14LDs 455nm 67W Laser Diode Chip Array
Electrical Parameters
Operating Current: Ensure the driving current is within the rated range of the laser diode to avoid overloading or underloading.
Operating Voltage: Use a power supply that matches the rated voltage of the laser diode to prevent overvoltage or undervoltage.
Constant Current Drive: Use a constant current power supply to avoid current fluctuations.
ESD Protection: Wear an anti-static wristband during operation to prevent electrostatic discharge damage.
Thermal Management
Heat Dissipation Design:Ensure proper heat dissipation using heat sinks, fans, or thermoelectric coolers (TECs).
Temperature Control: Monitor the operating temperature to avoid overheating (typically not exceeding the maximum operating temperature).
Heat Sink Installation: Properly install the heat sink to ensure good contact with the laser diode.
Beam Control
Beam Alignment: Ensure the laser beam is properly aligned with the target to avoid misalignment or scattering.
Beam Divergence: Adjust the beam divergence as needed using lenses or optical components to optimize beam quality.
Beam Path: Ensure the beam path is free of obstacles to prevent accidental reflections or scattering.
Safety Precautions
Laser Safety Class: Understand the safety class of the laser diode (e.g., Class III) and take appropriate protective measures.
Protective Eyewear: Wear safety goggles matched to the laser wavelength to avoid direct exposure to the eyes.
Avoid Direct Exposure: Never direct the laser beam at eyes, skin, or reflective surfaces.
Environmental Conditions
Operating Temperature: Use the laser diode within its specified operating temperature range.
Humidity Control: Avoid using the laser diode in high-humidity environments to prevent condensation or corrosion.
Clean Environment: Operate in a dust-free environment to avoid contamination of the optical surfaces.
Installation and Operation
Proper Installation: Follow the manufacturer’s installation guidelines to ensure correct setup.
Pin Connection: Ensure the anode and cathode are correctly connected to avoid reverse polarity.
Mechanical Stress: Avoid applying excessive mechanical stress to the laser diode to prevent damage.
Lifetime Considerations
Avoid Continuous Full Power Operation: Prolonged operation at full power can shorten the laser diode’s lifespan.
Regular Maintenance: Periodically check the laser diode’s operating status and cooling system.
Driver Circuit
Stable Power Supply: Use a stable power supply and driver circuit to avoid voltage or current fluctuations.
Soft Start: Implement a soft-start circuit to prevent current surges during power-up.
Overcurrent Protection: Include overcurrent protection in the driver circuit to prevent accidental damage.
Optical Components
Clean Optical Surfaces: Regularly clean the optical surfaces of the laser diode to avoid dust or stains affecting beam quality.
High-Quality Optics: Use high-quality optical components (e.g., lenses, mirrors) to ensure efficient beam transmission.
Regulations and Certifications
Compliance: Ensure the laser diode complies with local regulations and certifications (e.g., FDA, CE).
Safety Labels: Clearly mark the laser safety class and warning labels on the device.
Testing and Debugging
Gradual Testing: Gradually test the laser diode’s performance before full operation.
Parameter Monitoring: Continuously monitor the laser diode’s current, voltage, and temperature during operation.
Storage and Transportation
Anti-Static Packaging: Use anti-static packaging for storage and transportation.
Avoid Vibration: Prevent excessive vibration or shock to avoid damaging the laser diode.
