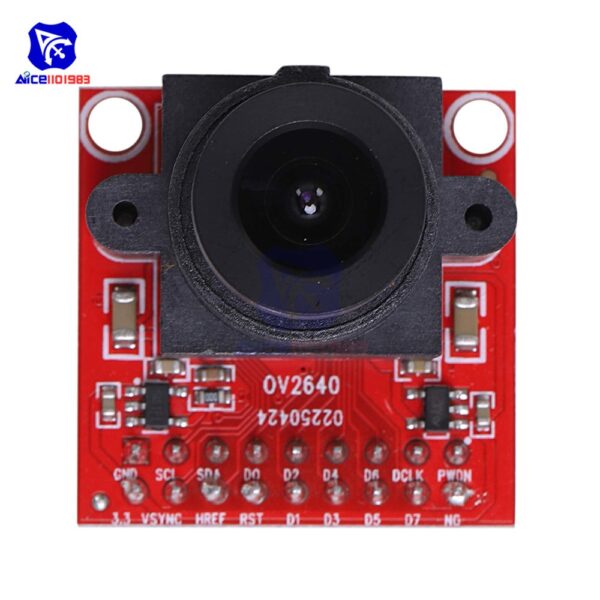

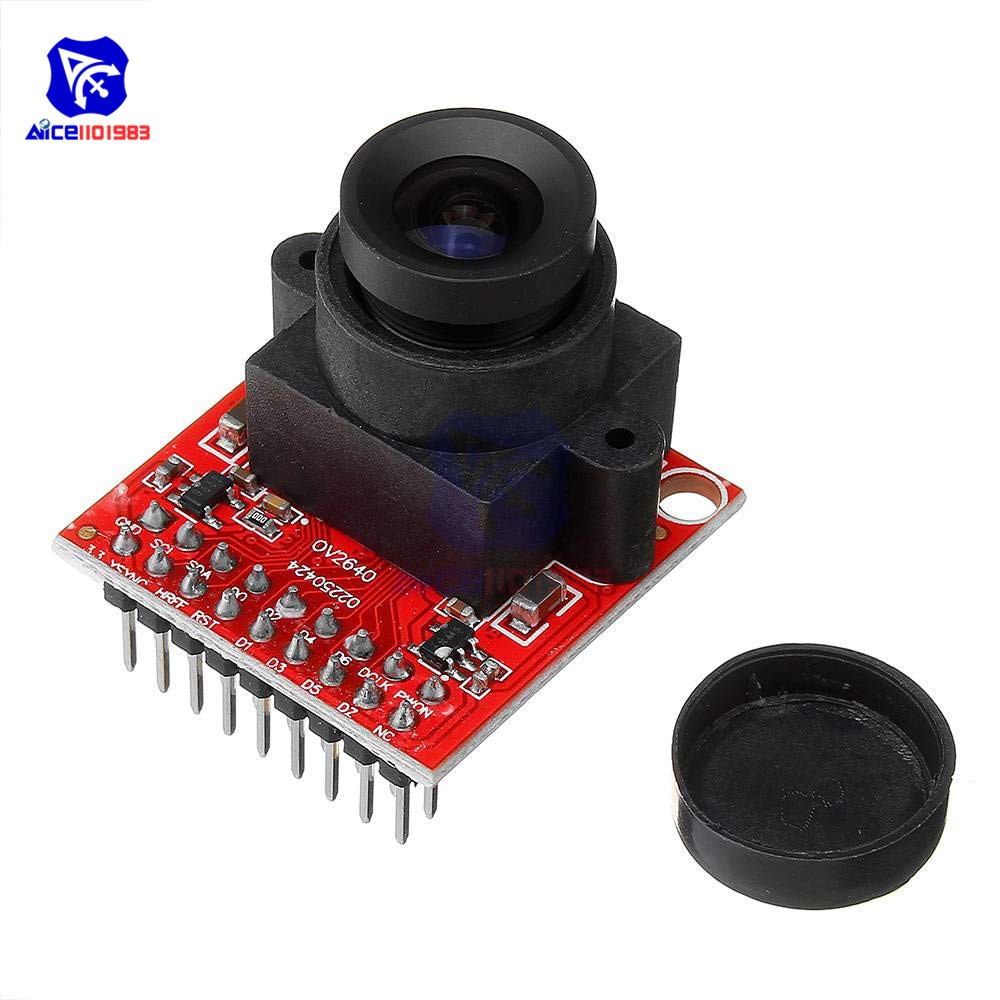

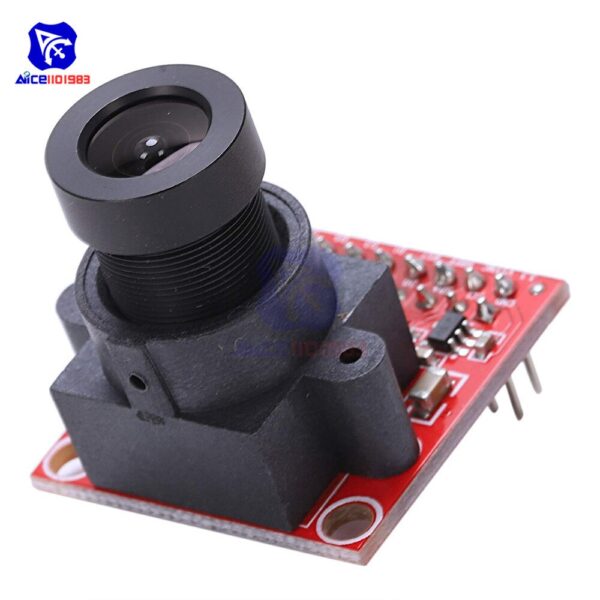

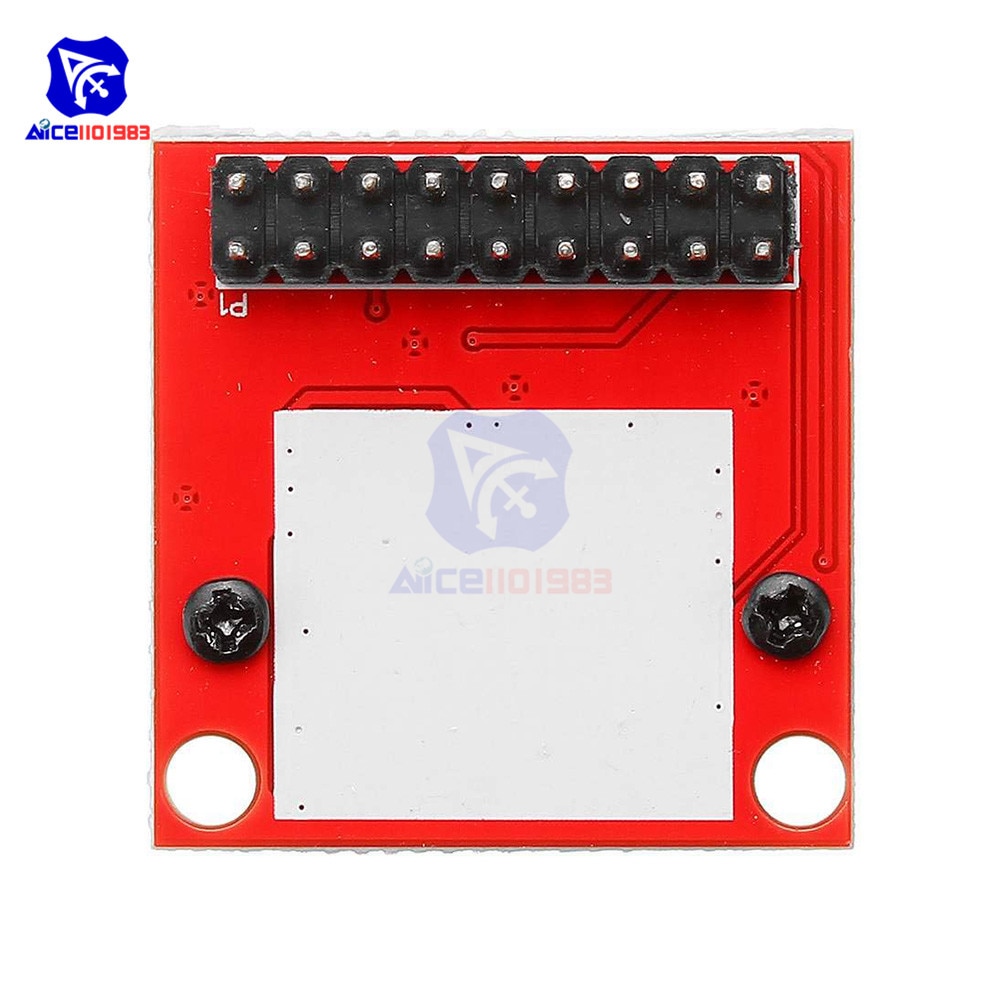

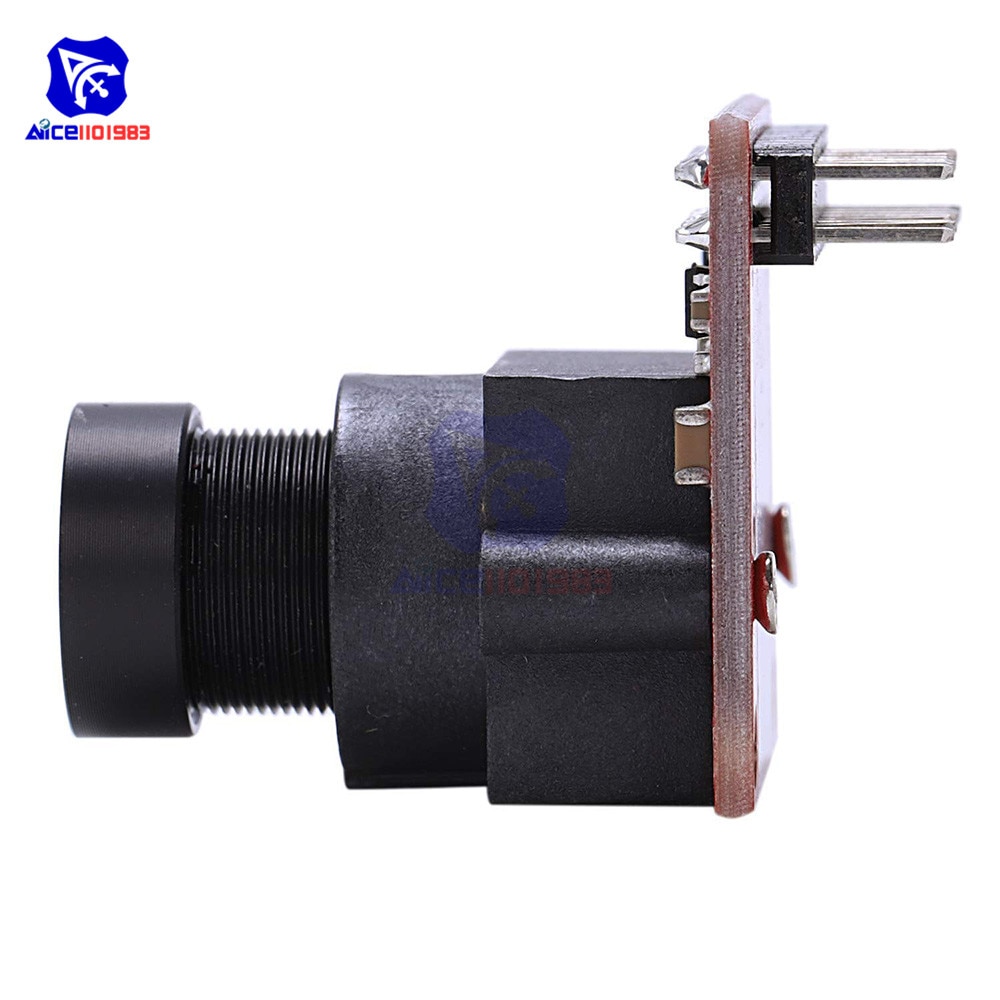

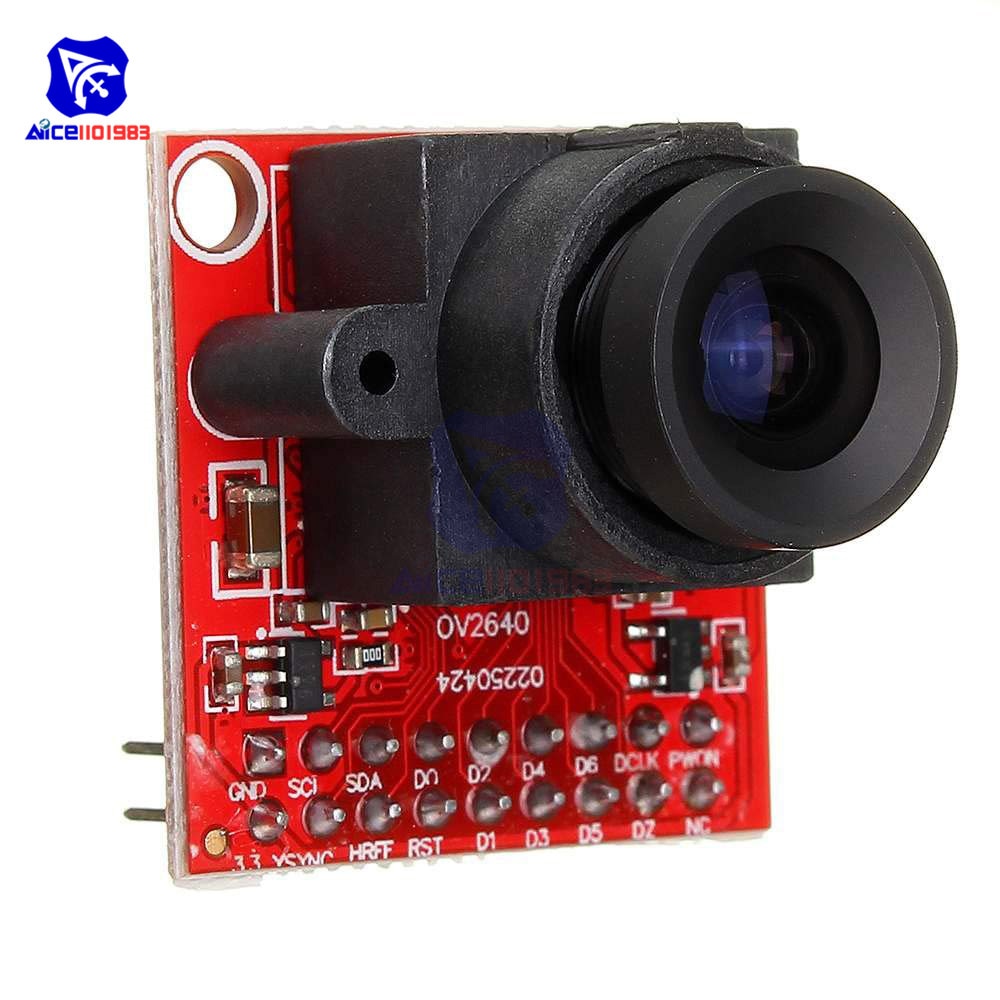

OV2640 Camera Module 2MP Megapixel STM32F4 Driver Source Code Support JPEG Output for Arduino
- Condition: New
- Type: Logic ICs
- Model Number: OV2640 Camera Module
- Supply Voltage: 3.3V
- Dissipation Power: Please Check Description
- is_customized: Yes
- Operating Temperature: -20 -65℃
- Application: Computer
- Package: SOP
The OV2640 image sensor is small in size and low in operating voltage, providing all the features of a single UXGA camera and image processor.
Through the SCCB bus control, it is possible to output 10-bit sample data of various resolutions such as full frame, sub-sampling, and window.
Users have complete control over image quality, data format and transmission.
All image processing functions including gamma curve, white balance, saturation, chrominance, etc.
It can be programmed via the SCCB interface.
Image Sensors use unique sensor technology to improve image quality and reduce sharp and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, and floating.
The output format: RGB565 / JPEG / YUV / YCbCr and so on.
Control interface: SCCB.
Working voltage: 3.3V
Size: module size: 27mmX27mm
Sensor size: 1/4 inch
1 * OV2640 STM32F4 Camera Module
