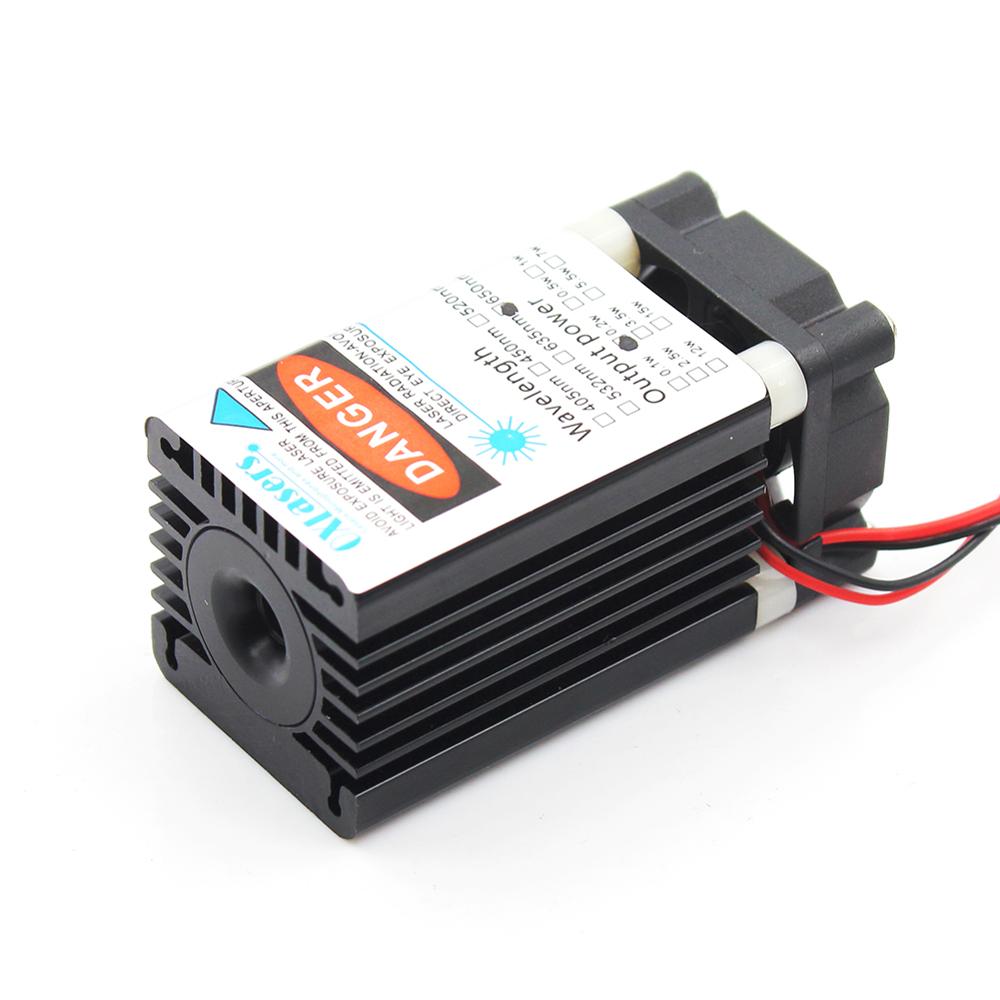

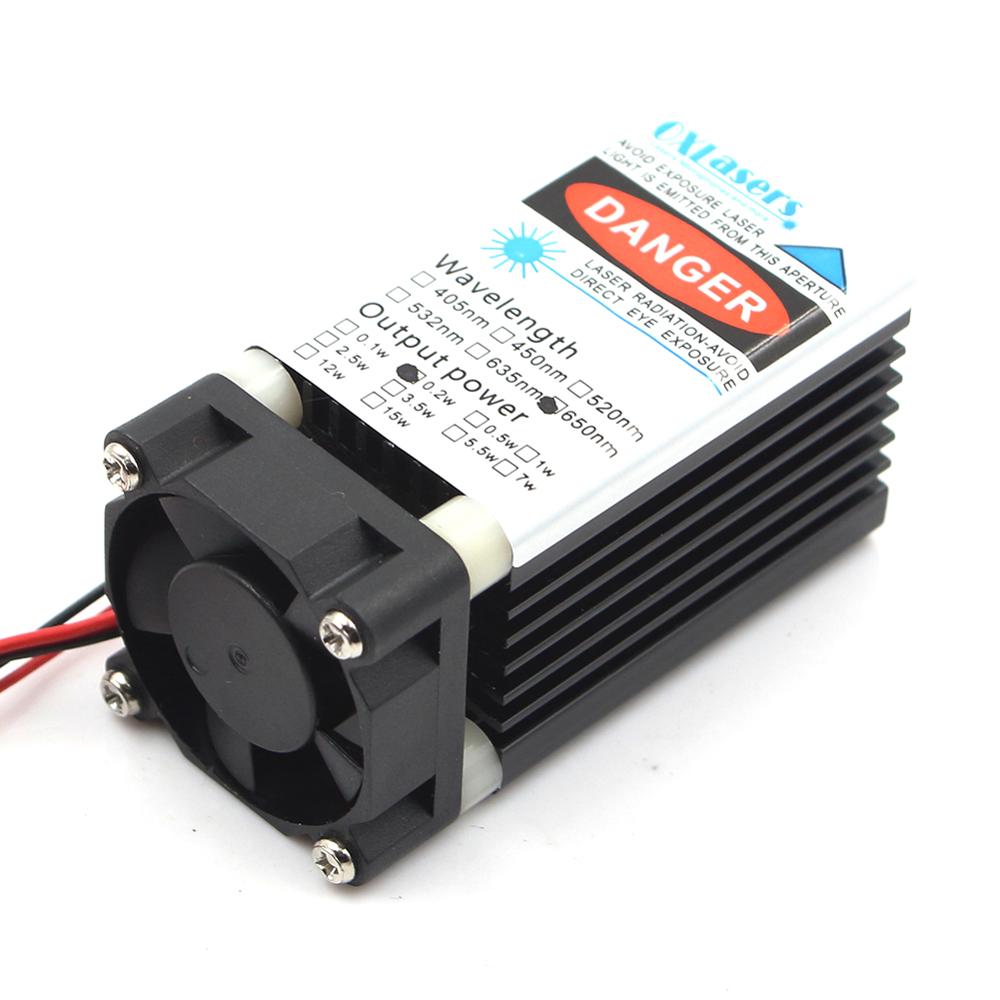

450nm 100mW Blue Laser Module TTL 445nm Blue Laser Light Fixed Focus with Cooling Fan for Stage lighting and Lab


SKU: 4001213852364 Category: Tag:



1 Brand: OXLasers
2 Wavelength:  445nm-450nm
3 Output power:100mW(Real Output:80-90mW
 Power can be adjusted by 0-5V PWM Signal)

4 spot pattern: round dot
5 divergence angle ≤1-2mrad
6 Laser Class Class 3
7 modulation mode TTL modulation
8 input stability ±5%
9 Laser input voltage 7V
10 Recommended ambient temperature -10~40°C

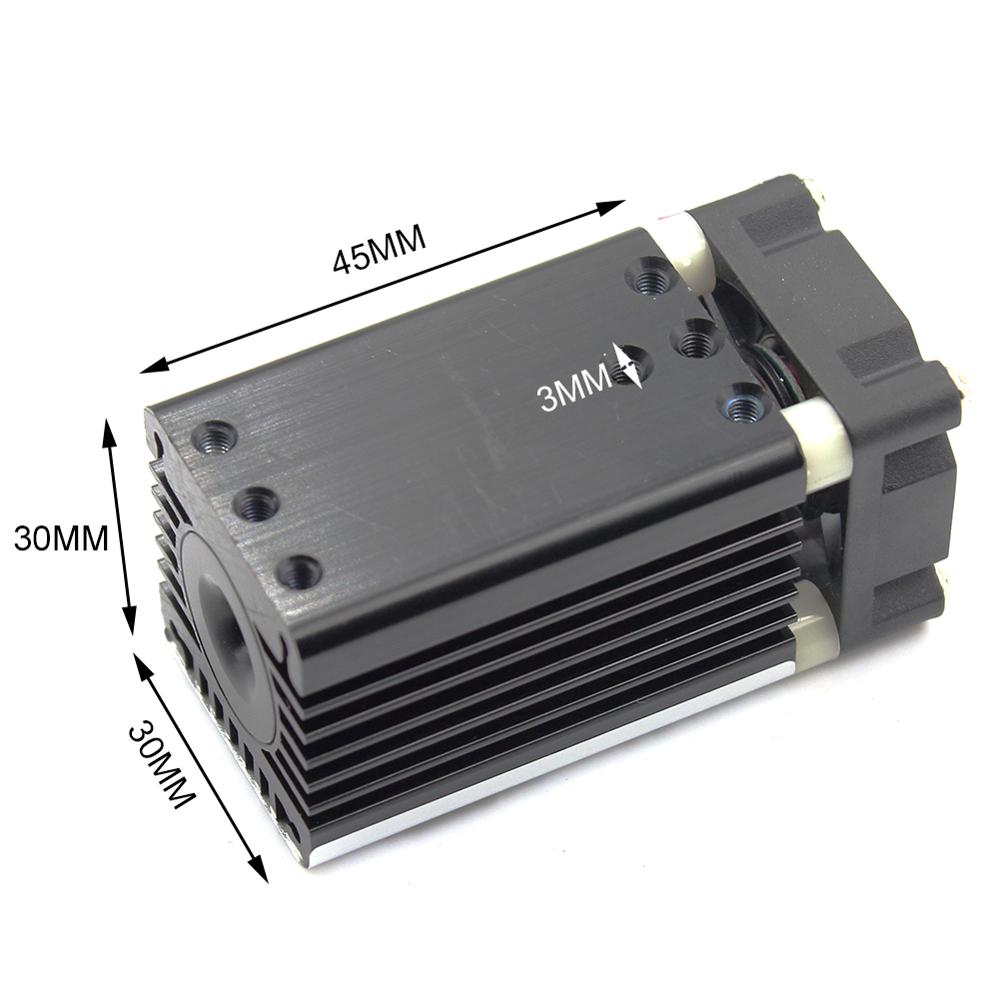

11 size 30*30*45mm

12 Working Voltage: 12V DC


Thin beam diameter:  about 3mm

​Fat beam diameter: about 11mm



Packing List:

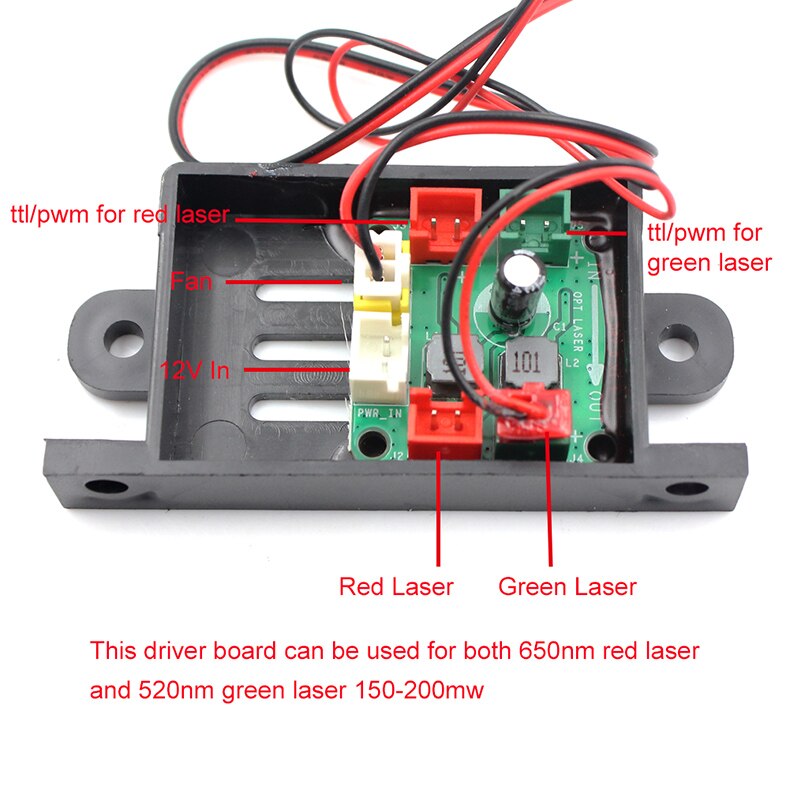

Driver Board*1

12V 2A Power Adapter Plug*1

DC-2PIN connect wire*1
