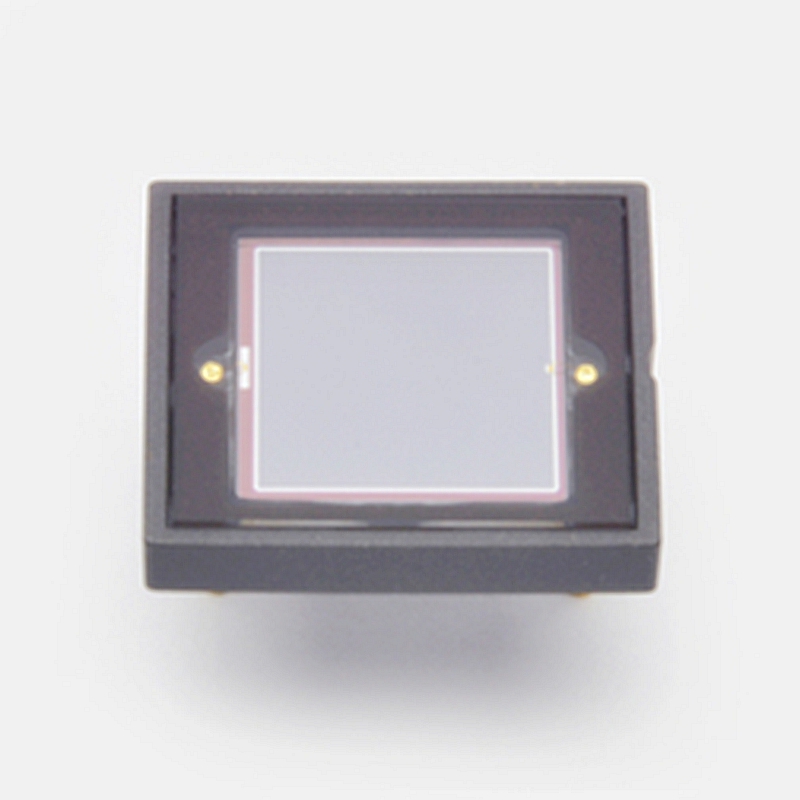

Name: S1227 66BQ Si Photodiode
SKU: 1611
Availability: InStock

S1227 66BQ Si Photodiode

$37.00

For UV to visible, precision photometry; suppressed IR sensitivity Features – High UV sensitivity (quartz window type): QE＝75 % (λ=200 nm) – Suppressed IR sensitivity – Low dark current Specifications Photosensitive area – 5.8 × 5.8 mm Package – Ceramic Package category – N/A Cooling – Non-cooled Reverse Voltage (max.) – 5V Spectral Response…

Description

For UV to visible, precision photometry; suppressed IR sensitivity

Features
– High UV sensitivity (quartz window type): QE＝75 % (λ=200 nm)
– Suppressed IR sensitivity
– Low dark current

Specifications

Photosensitive area – 5.8 × 5.8 mm

Package – Ceramic

Package category – N/A

Cooling – Non-cooled

Reverse Voltage (max.) – 5V

Spectral Response Range – 190 to 1000 nm

Peak sensitivity wavelength (typ.) – 720 nm

Photosensitivity (typ.) – 0.36 A/W

Dark current (max.) 20 pA

Rise time (typ.) – 2 μs

Terminal capacitance (typ.) 950 pF

Noise equivalent power (typ.) – 5.0×10^-15 W/Hz^1/2

Measurement condition – Typ. Ta=25 ℃, Photosensitivity: λ=720 nm, Dark current: V_R=10 mV, Terminal capacitance: V_R=0 V, f=10 kHz, unless otherwise noted
