Description

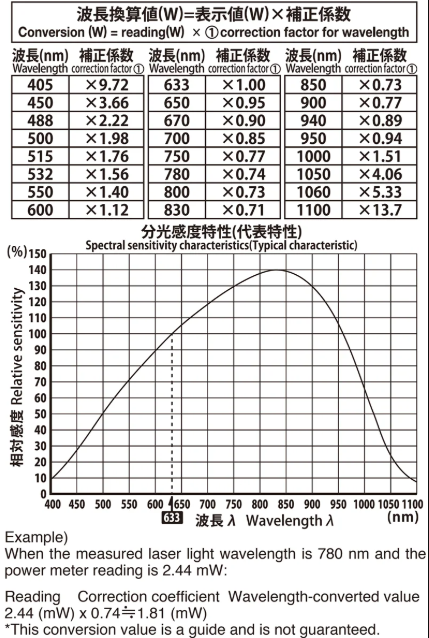

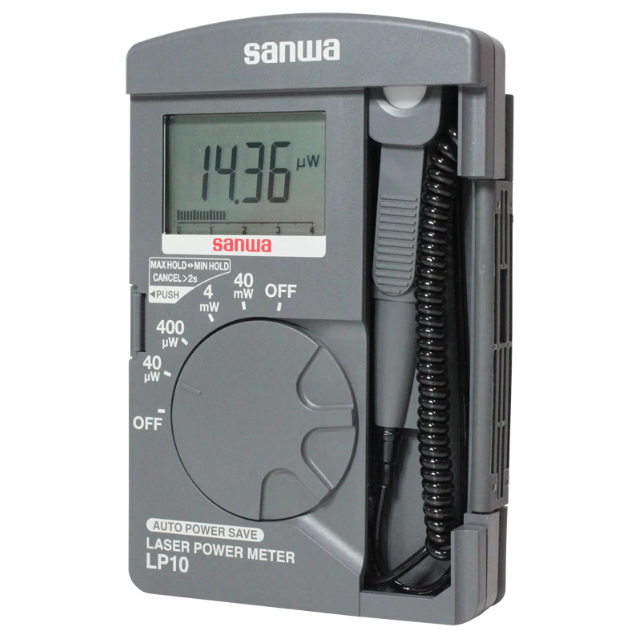

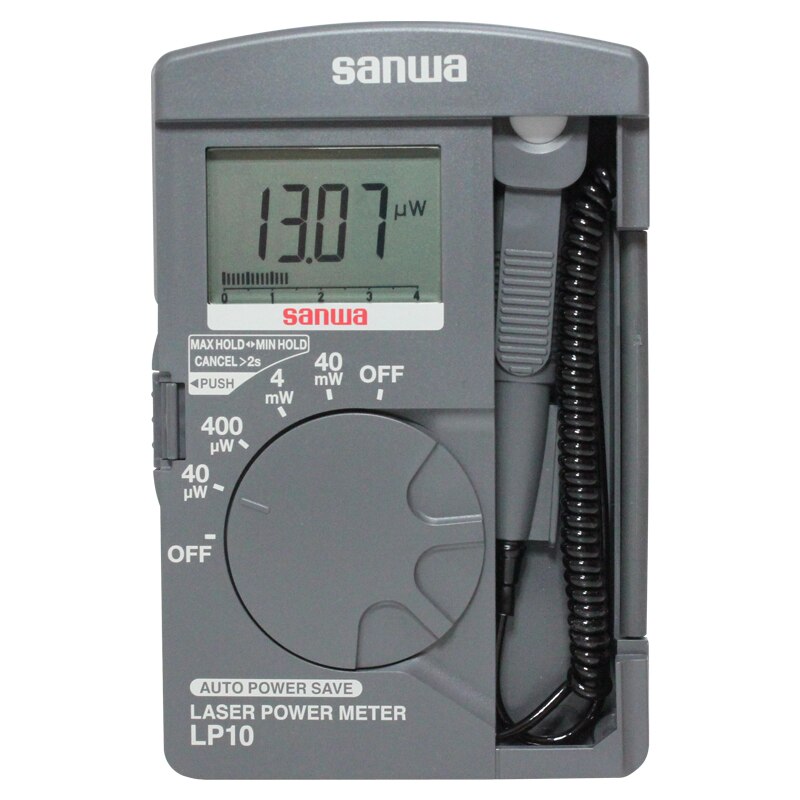

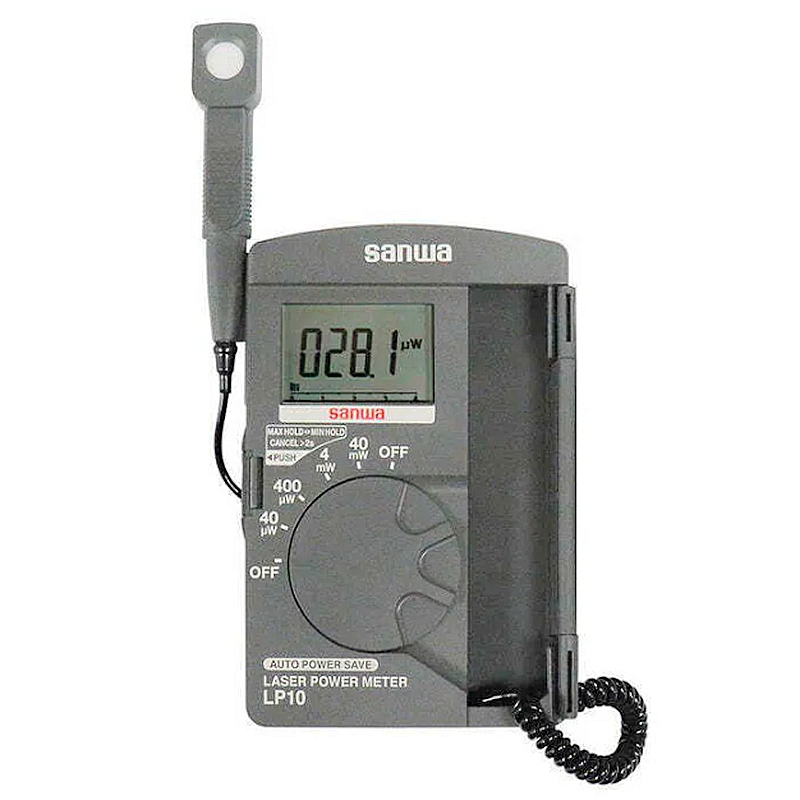

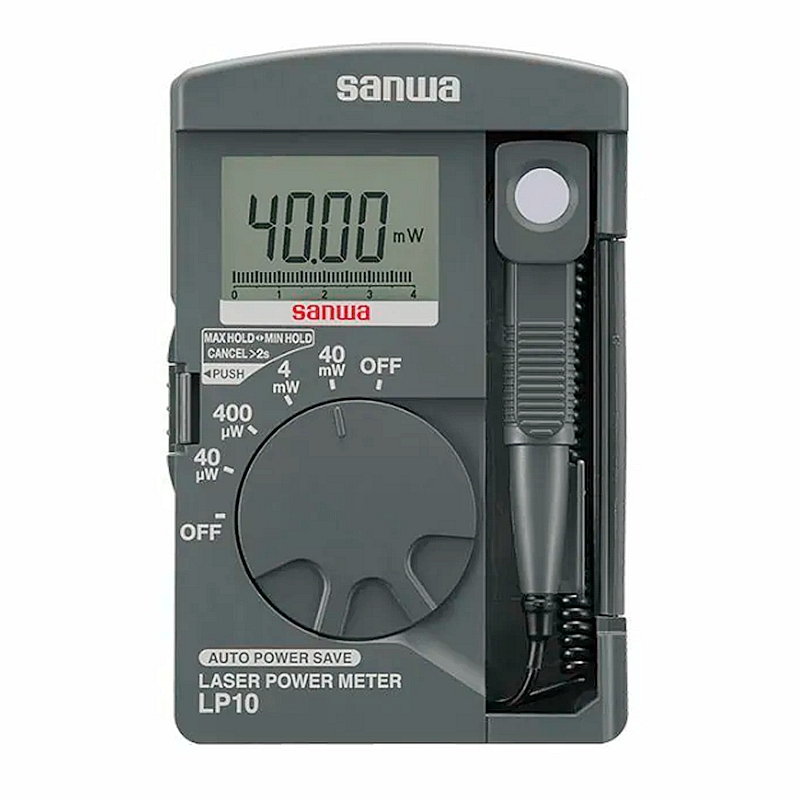

Using 633 nm of a He-Ne laser as the reference wavelength, this instrument enables direct reading of the optical power of visible-range laser light from a visible laser source – pointer, DVD player’s optical pickup, etc. The power of other wavelengths can also be measured by converting the reading according to the spectral sensitivity characteristic table (typical values).

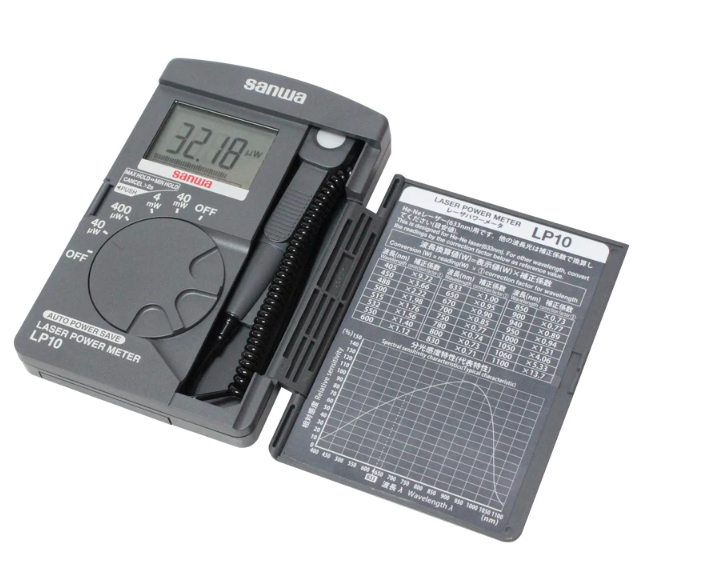

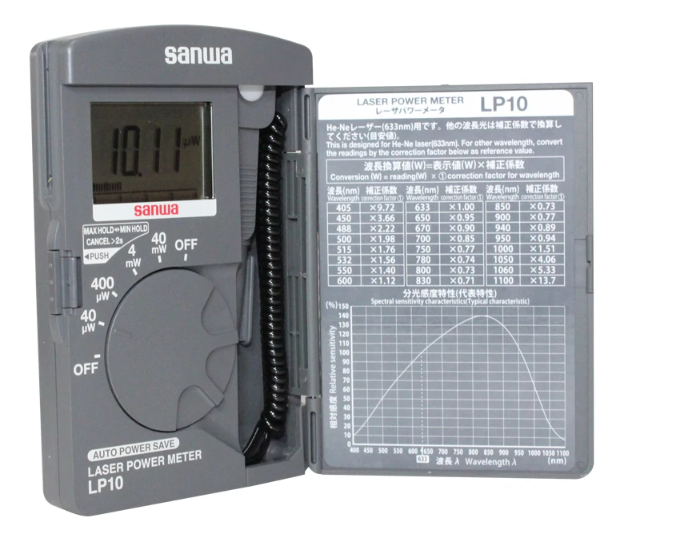

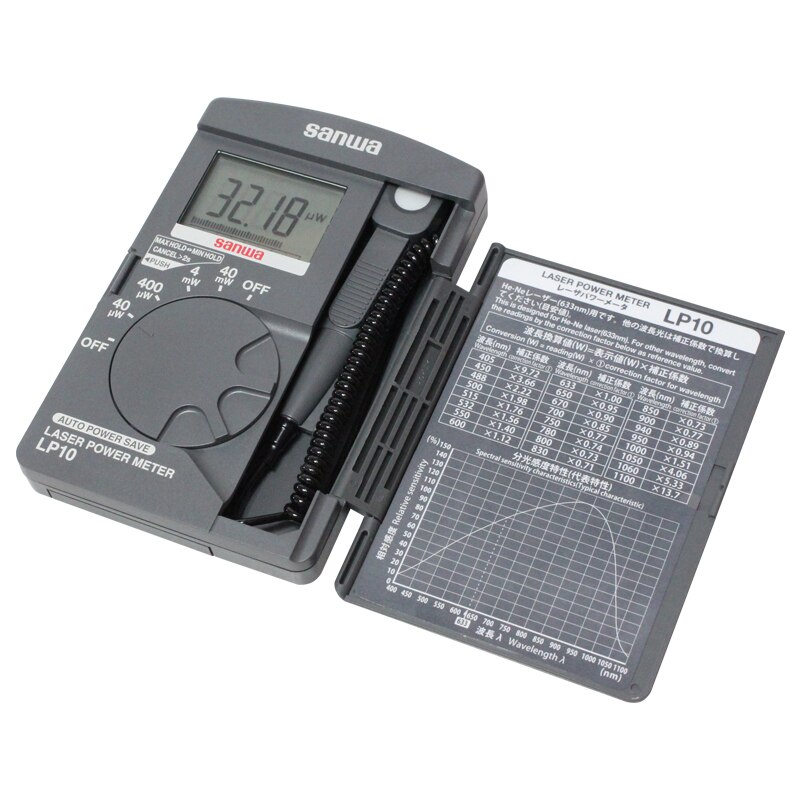

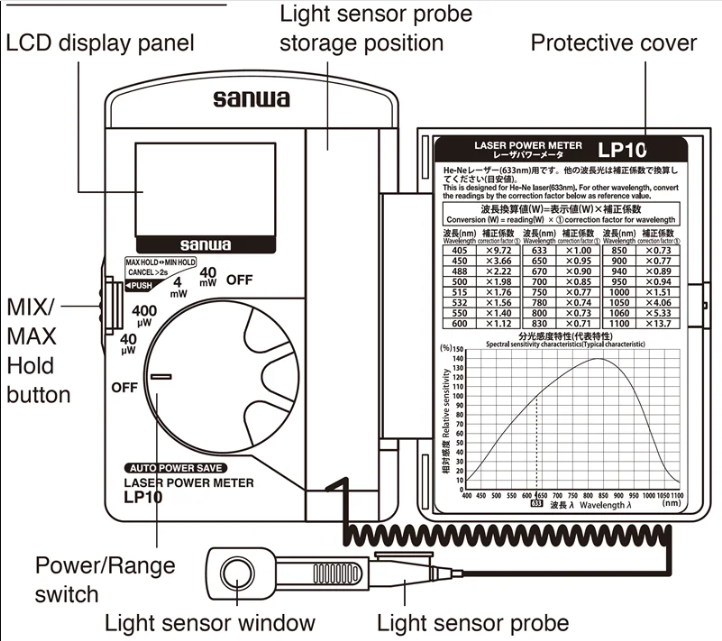

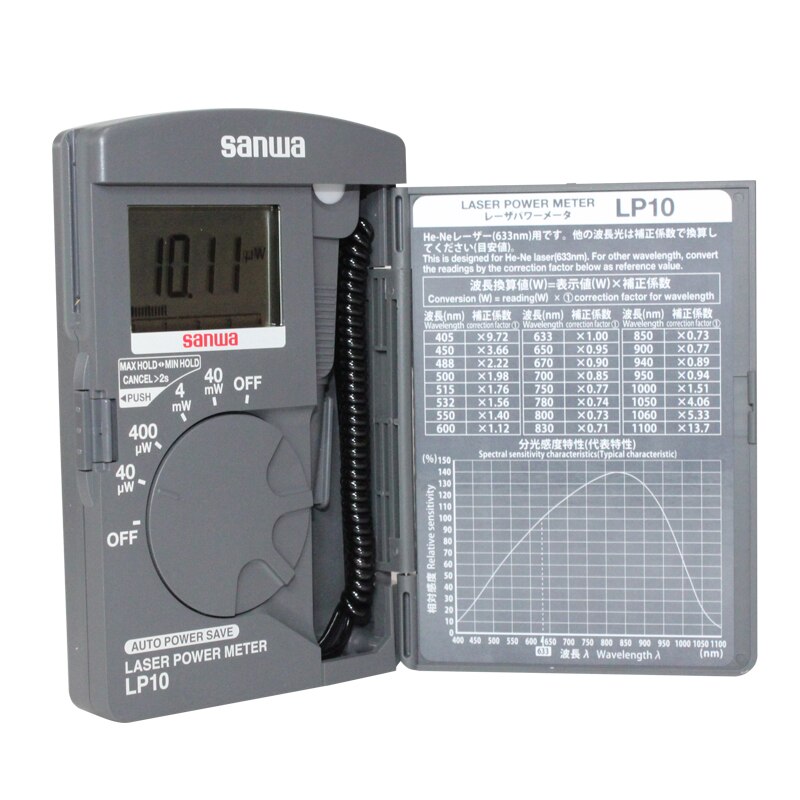

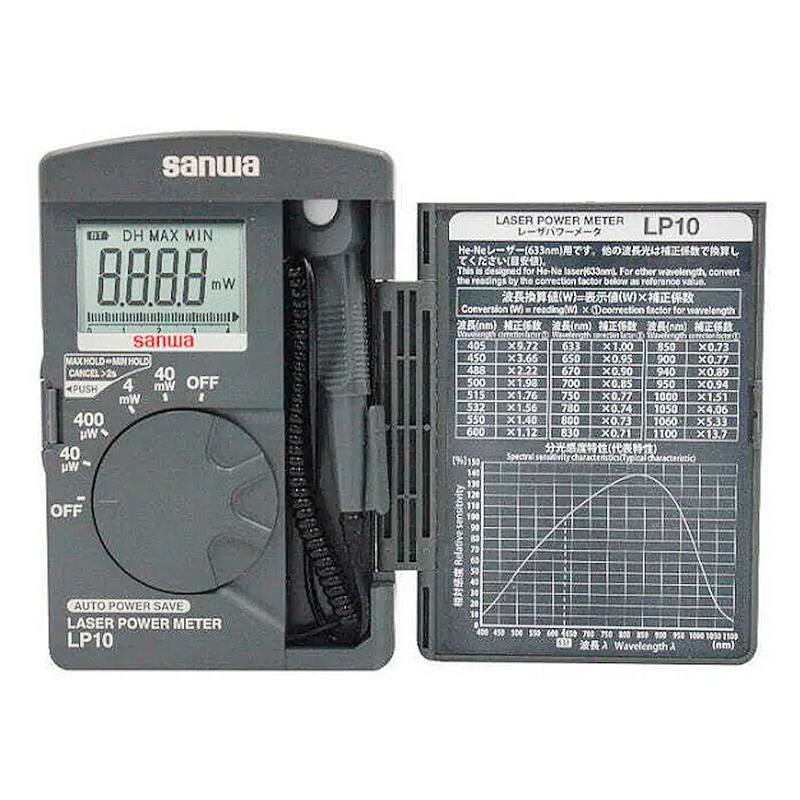

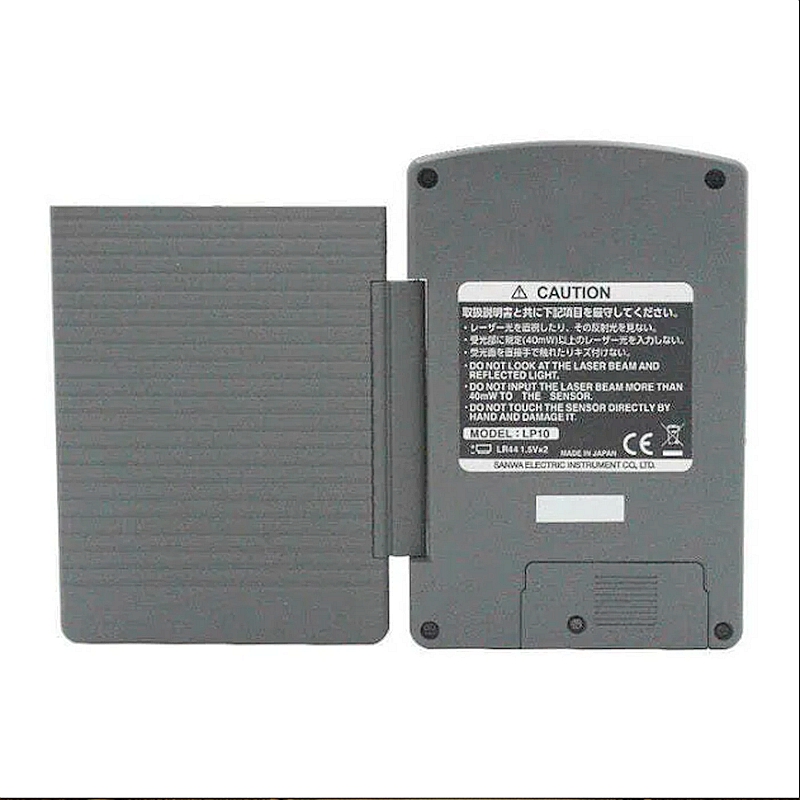

The light sensor in this device is a silicon photodiode (light sensor surface diameter 9 mm) with a diffusion sheet. It can measure wavelengths within the 400 nm to 1100 nm range. The cleverly designed cover folds flat in back of the unit when in use, and protects the unit when closed.

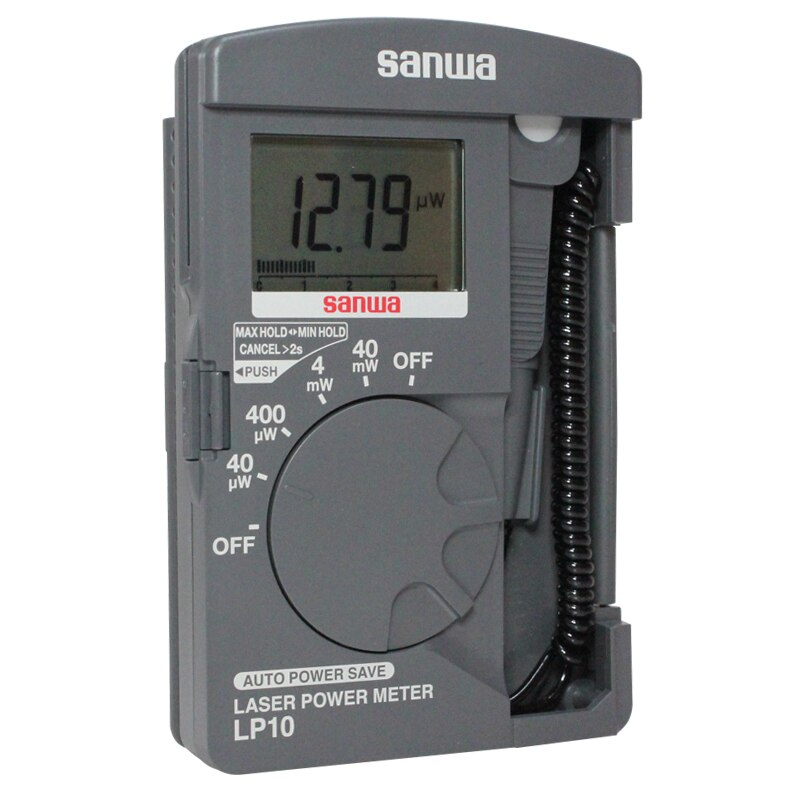

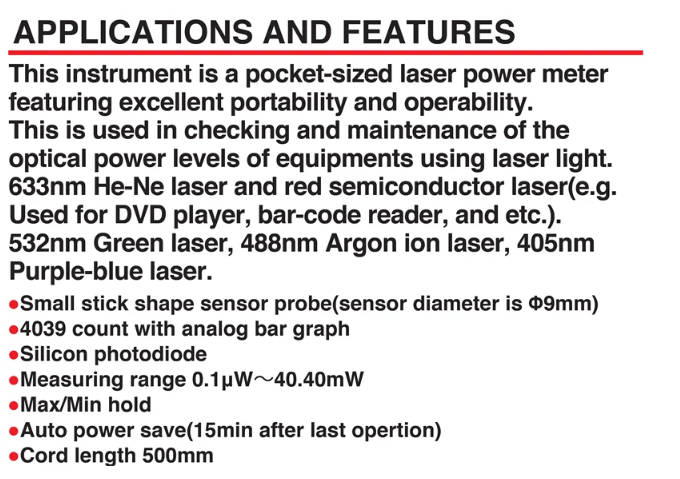

• Small stick shape sensor probe
• 4039 counts with analog bar graph
• Silicon photodiode
• Measuring range 0.1μW～40mW
• Max/Min hold
• Auto power save
• Cord length 500mm

Includes meter, stick sensor and instruction manual.

Meter Dimensions: 4½” × 3″ × ¾” (114 × 76 × 19 mm)
Weight: 3.9 oz (111 g)
