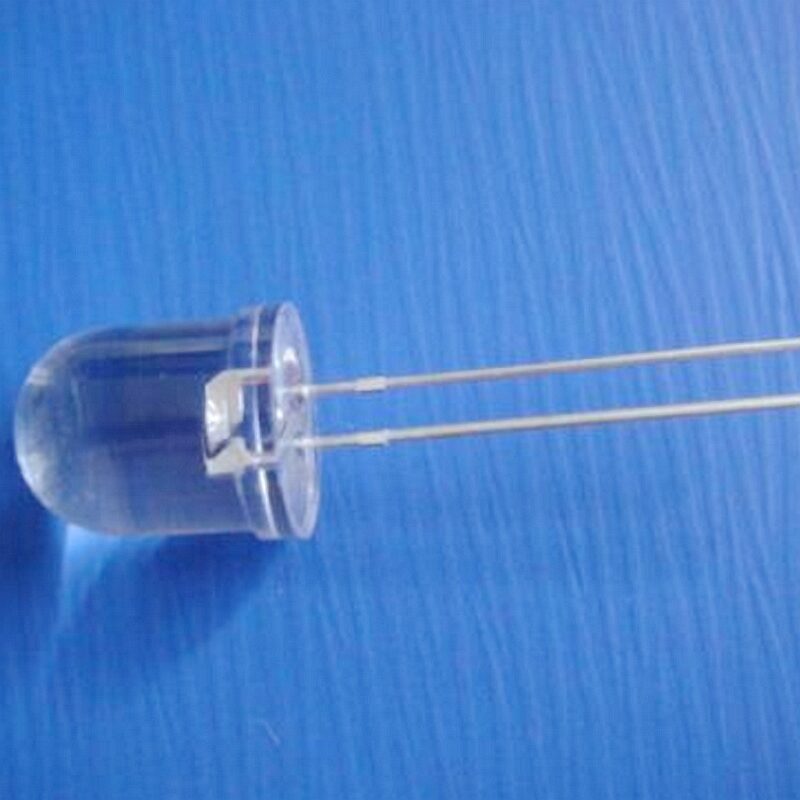

10mm LED 2000nm Light-emitting Diode MIR IR LED Diode

$198.00

10mm LED 2000nm Light-emitting Diode MIR IR LED Diode.  LED 2000nm 10mm Light-emitting Diode. It’s pulsed  LED with 10mm .

SKU: C225 Category: Tags: , ,

Description

10mm LED 2000nm Light-emitting Diode. It’s pulsed  LED with 10mm diametion .  2000nm is far infrared wavelength. It can be used in many applications. Just contact us if you need more information.

Operating mode: pulsed

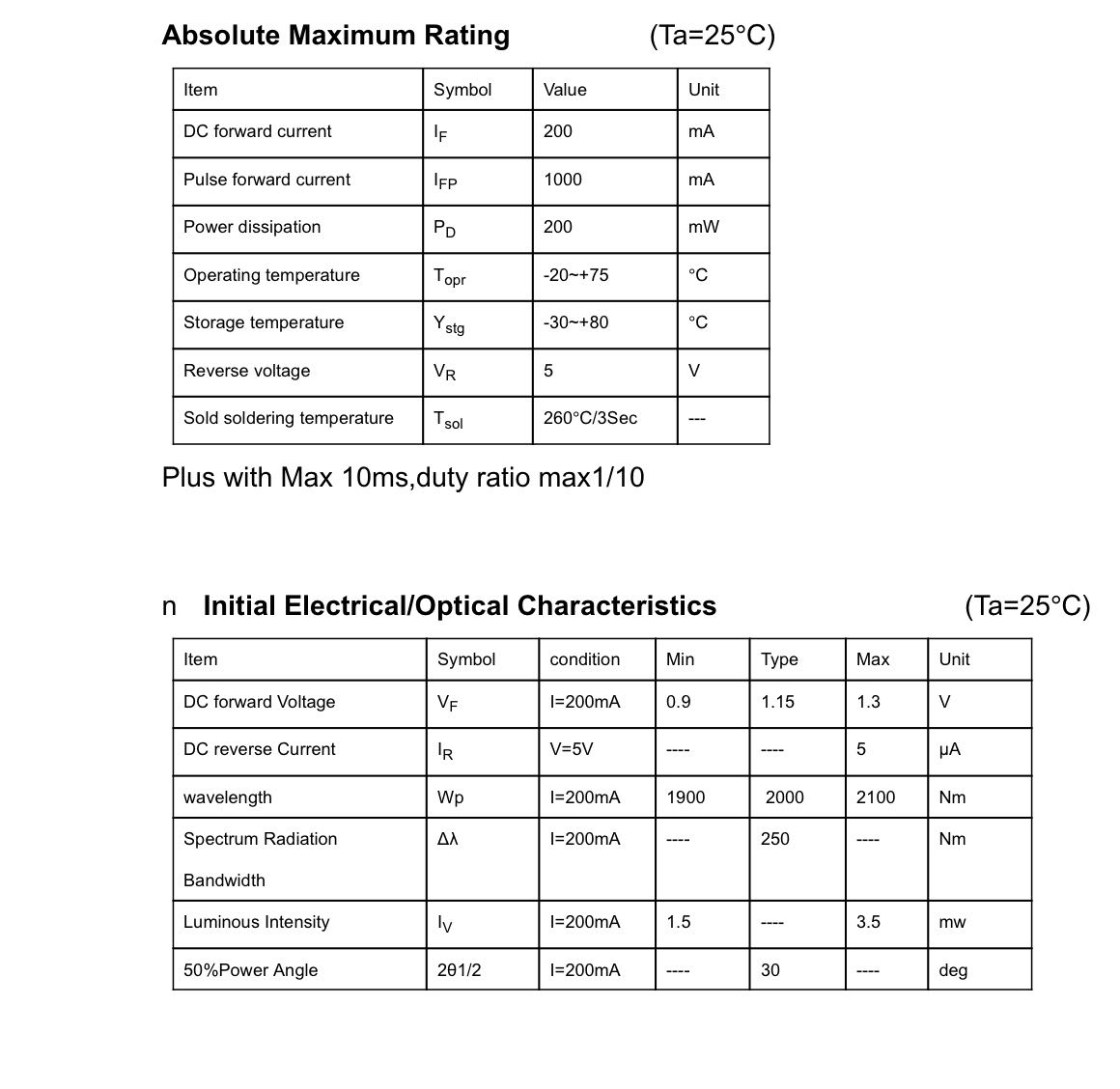

Absolute Maximum Rating:

DC forward current : 200 mA

Pulse forward current : 1000 mA

Power dissipation: 200 mW

Operating temperature: -20~75℃

Storage temperature: -30~80℃

Reverse voltage : 5V

Sold soldering temperature: 260℃/3Sec

Plus with Max 10ms,duty ratio max 1/10

Initial Electrical/ Optical Characteristics

DC forward voltage : 0.9-1.3 V

DC reverse current: 5uA

Wavelength: 1900-2100nm

Spectrum Radiation Bandwidth: 250nm

Luminous intensity: 1.5-3.5mw

50% Power Angle: 30 deg
