Description
1500M/1000M Rangefinder sensor Laser Distance Meter Serial Module Distance Speed Measurement TTL singal

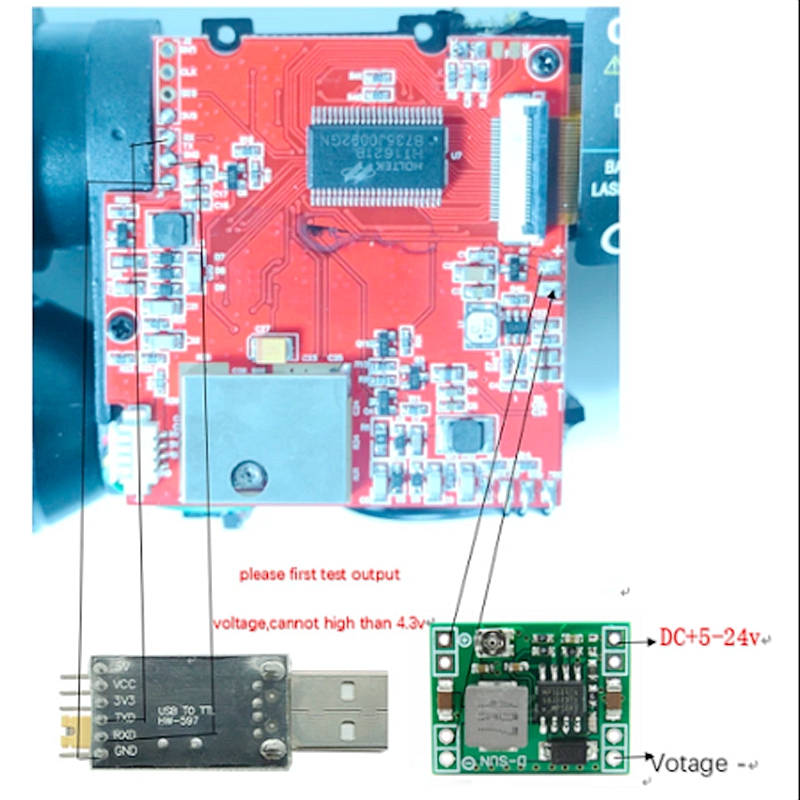

TTL signal (you can change to other signal RS232, RS422, RS485, etc.)
baud rate：115200
Data bit：8
Checkout bit：None
Stop position：1
Flow control：None
|
MODLE |
HR600 HR1000 HR1500 |
|
Range range |
3m-600m 1000m 1500m |
|
Accuracy |
±0.1mm-0.5m@300m,1m@300-1500m |
|
Measurement time |
1000 HZ -300HZ @100M, 100HZ @ 200m |
|
Speed measurement accuracy |
<5km/h |
|
working temperature |
-5-40℃ |
|
Laser wavelength（nm） |
905±5nm |
|
Peak power of laser（W） |
50w |
|
pulse width（ns） |
25ns@ FWHM |
|
Telescope ratio（X） |
7 |
|
Telescope eyepiece aperture（mm） |
16 |
|
Telescope objective lens aperture（mm） |
24 |
|
The distance of the pupil mm） |
10 |
|
Receiving lens aperture（mm） |
25 |
|
Item size（L xHxW） |
135X77X40MM |
|
weight（g） |
270G |
|
Laser safety grade |
CLASS 1 |
Packet List:
1 X Rangefiner serial SENSOR
1x english munal

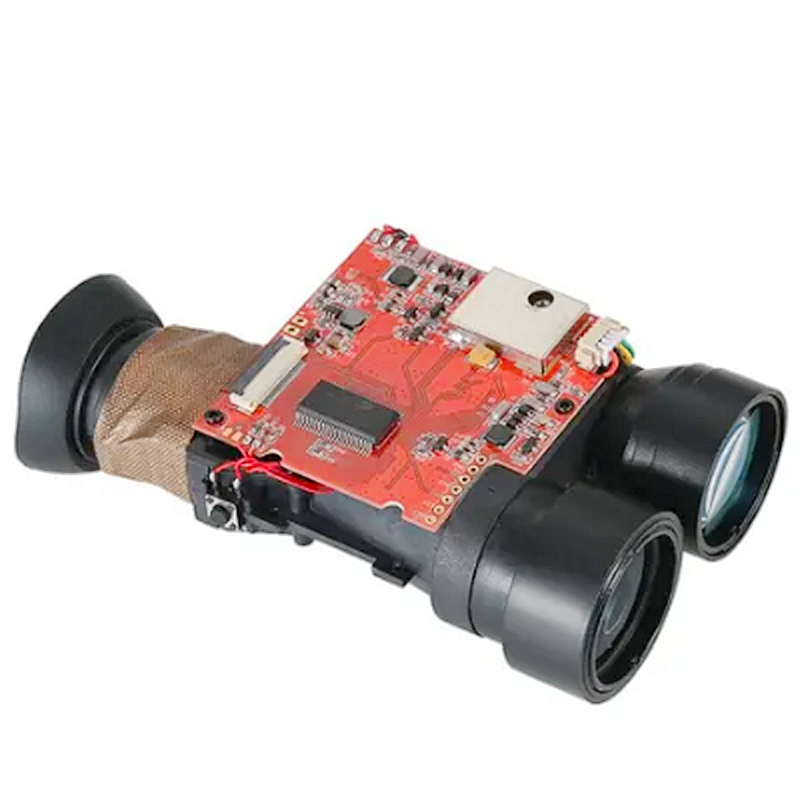

DIY 1000M Laser Distance Meter Serial Module Rangefinder Sensor Distance Speed Measurement
