hamamatsu Microchannel plate photomultiplier tube R3809U-52

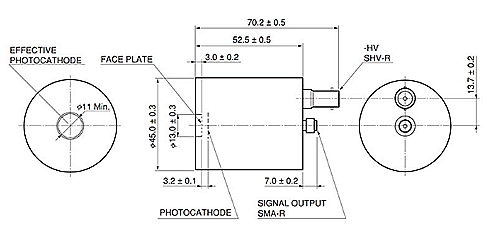

hamamatsu Microchannel plate photomultiplier tube R3809U-52 - Image 2

hamamatsu Microchannel plate photomultiplier tube R3809U-52

$299.00

hamamatsu Microchannel plate photomultiplier tube R3809U-52 Download Datasheet: hamamatsu Microchannel plate photomultiplier tube R3809U-52 45 mm dia., MCP-PMT, Bialkali photocathode (Effective area :11 mm dia./Spectral response : 160 nm to 650 nm) Specifications Type MCP-PMT Tube Size Dia.45 mm Photocathode Area Shape Round Photocathode Area Size Dia.11 mm Wavelength (Short) 160 nm Wavelength (Long) 650…

Category:

Description

hamamatsu Microchannel plate photomultiplier tube R3809U-52

Download Datasheet:

hamamatsu Microchannel plate photomultiplier tube R3809U-52

45 mm dia., MCP-PMT, Bialkali photocathode (Effective area :11 mm dia./Spectral response : 160 nm to 650 nm)

Specifications

Type MCP-PMT
Tube Size Dia.45 mm
Photocathode Area Shape Round
Photocathode Area Size Dia.11 mm
Wavelength (Short) 160 nm
Wavelength (Long) 650 nm
Wavelength (Peak) 420 nm
Photocathode Material Bialkali
Window Material Silica glass
Dynode Structure MCP
Dynode Stages 2
[Max. Rating] Anode to Cathode Voltage -3400 V
[Cathode] Luminous Sensitivity Min. 20 μA/lm
[Cathode] Luminous Sensitivity Typ. 50 μA/lm
[Cathode] Radiant Sensitivity Typ. 50 mA/W
[Anode] Luminous Sensitivity Typ. 15 A/lm
[Anode] Gain Typ. 3.0 x 105
[Time Response] Rise Time Typ. 160 ps
[Time Response] Transit Time Spread Typ. 25 ps
