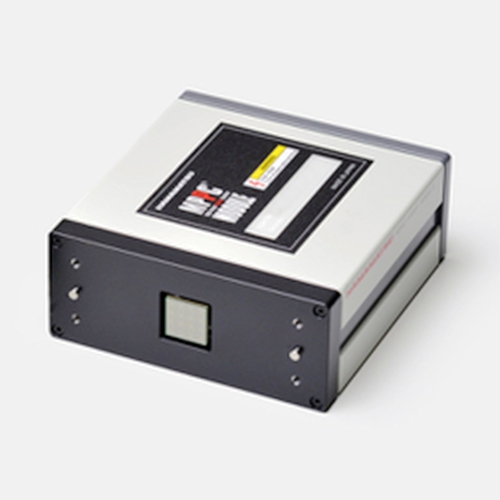

hamamatsu MPPC module C13369-3050EA-04 MPPC array module for very-low-level light detection, 16 ch analog output
Download Datasheet:
The C13369-3050EA-04 is an optical measurement module with an MPPC array that can detect very-low-level light (analog output type). The module consists of a 16 ch MPPC array, an amplifier, and a high-voltage power supply circuit. It has a photosensitive area of 3 × 3 mm. The signal output type of these MPPC module is 16 ch analog. You can simply connect an external power supply (±5 V) to use this module.
Features
– Built-in MPPC array (4 × 4 ch)
– High sensitivity in the short wavelength range
– Low noise equivalent power
– Built-in temperature compensation function
-Compact and lightweight
– Analog output
Specifications
| Built-in sensor | S13361-3050NE-04 |
|---|---|
| Cooling | Non-cooled |
| Effective photosensitive area/ch | 3 x 3 mm |
| Number of pixels/ch | 3584 |
| Number of channels | 16 (4 x 4) ch |
| Pixel pitch | 50 μｍ |
| Note | Analog output |
| Measurement condition | Ta=25 ℃ |
