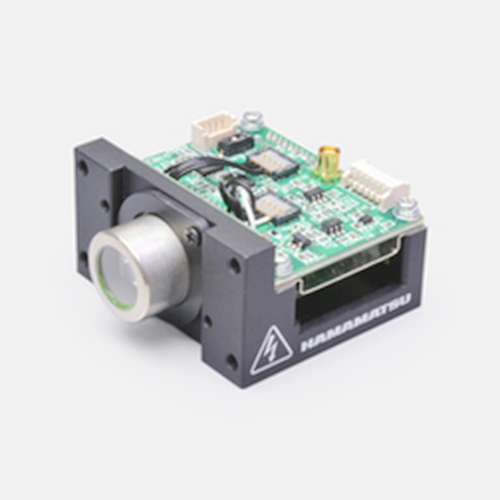

hamamatsu MPPC module C14456-3050GD Optical measurement modules for low-level-light detection, Analog output
Download Datasheet:
The C14456-3050GD is optical measurement module capables of detecting low-level light using its built-in TE-cooled MPPC for the visible to near infrared region. The module consists of a TE-cooled MPPC, amplifier, comparator circuit, high-voltage power supply circuit, and temperature controller. The photosensitive area is φ3 mm, and the signal output is digital. The module operates by supplying an external power supply (±5 V). As this product is compact and lightweight, it is suitable for integration into devices.
Features
-Built-in TE-cooled MPPC
-For visible to near infrared region
-Built-in temperature control function
-Low dark count
-Digital output
Specifications
| Built-in sensor | S14422-3050DG |
|---|---|
| Cooling | TE-cooled |
| Effective photosensitive area/ch | φ3 mm |
| Number of pixels/ch | 2836 |
| Number of channels | 1 ch |
| Pixel pitch | 50 μｍ |
| Note | Digital output |
| Measurement condition | Ta=25 ℃ |
