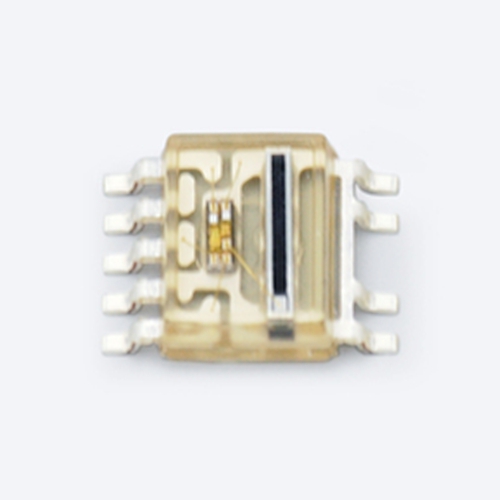

hamamatsu Photo IC for laser beam sync detection S11257-01DT Low voltage operation (3.3 V)
Download Datasheet:
hamamatsu Photo IC for laser beam sync detection S11257-01DT Low voltage operation (3.3 V)
The S11257-01DT photo IC uses a high-speed PIN photodiode designed for laser beam synchronous detection. It operates at a low voltage (3.3 V) compatible with low-voltage peripheral components mounted on the same PC board.
Features
-Low voltage operation (3.3 V)
-High sensitivity (Current amplifier gain: 6 times)
-Digital output
-Small package
-Suitable for lead-free solder reflow

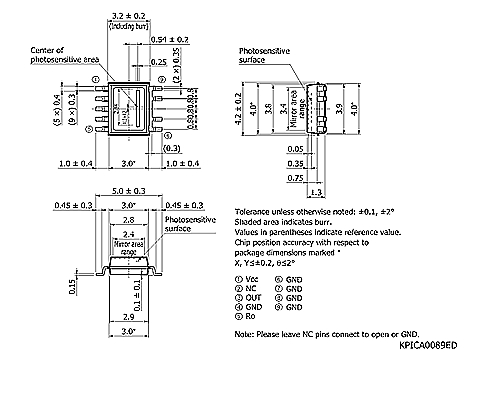

-Photosensitive area: 2.84 × 0.25 mm
