hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow

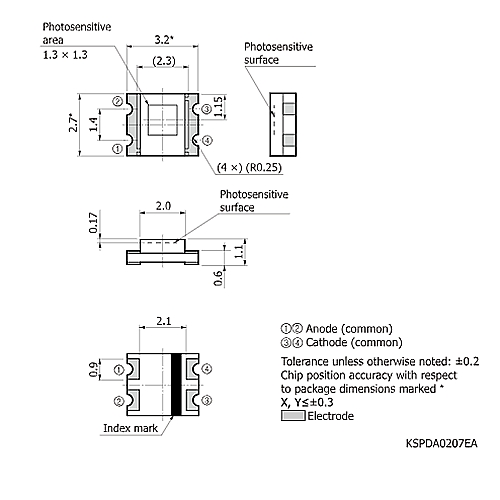

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow - Image 2

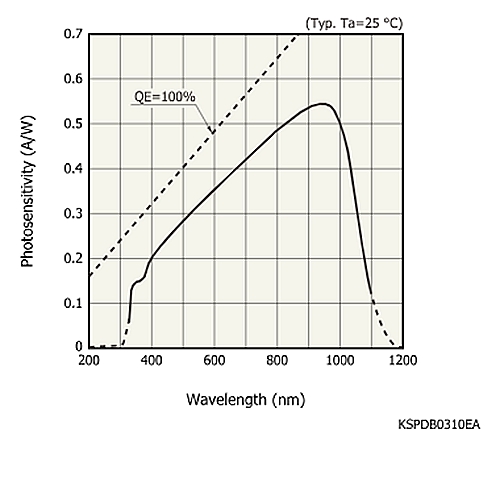

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow - Image 3

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow

$299.00

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow Download Datasheet: hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow The S10625-01CT is a Si photodiode for visible to near infrared range and is compatible with lead-free solder reflow processes. The small and thin leadless package allows reducing the mount area…

Category:

Description

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow

Download Datasheet:

hamamatsu Si photodiode S10625-01CT COB type, applicable to lead-free solder reflow

The S10625-01CT is a Si photodiode for visible to near infrared range and is compatible with lead-free solder reflow processes. The small and thin leadless package allows reducing the mount area on a printed circuit board.

Features
– COB type
– Small package: 3.2 x 2.7 x 1.1tmm
– Applicable to lead-free solder reflow
– Photosensitive area: 1.3 × 1.3 mm

Specifications

Photosensitive area 1.3 × 1.3 mm
Package Glass epoxy
Package category Surface mount type
Cooling Non-cooled
Reverse voltage (max.) 10 V
Spectral response range 320 to 1100 nm
Peak sensitivity wavelength (typ.) 940 nm
Photosensitivity (typ.) 0.54 A/W
Dark current (max.) 10000 pA
Rise time (typ.) 0.5 μs
Terminal capacitance (typ.) 200 pF
Measurement condition Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=1 V, Terminal capacitance: VR=0 V, f=10 kHz, Typ., unless otherwise noted
