hamamatsu Si photodiode S12497 A scintillator can be mounted directly on the chip

$299.00

hamamatsu Si photodiode S12497 A scintillator can be mounted directly on the chip Download Datasheet: hamamatsu Si photodiode S12497 A scintillator can be mounted directly on the chip The S12497 is a Si photodiode suitable for non-destructive inspection of baggage and the like and general industrial measurement. As it is a back-illuminated photodiode, photosensitive area…

Category:

Description

hamamatsu Si photodiode S12497 A scintillator can be mounted directly on the chip

Download Datasheet:

hamamatsu Si photodiode S12497 A scintillator can be mounted directly on the chip

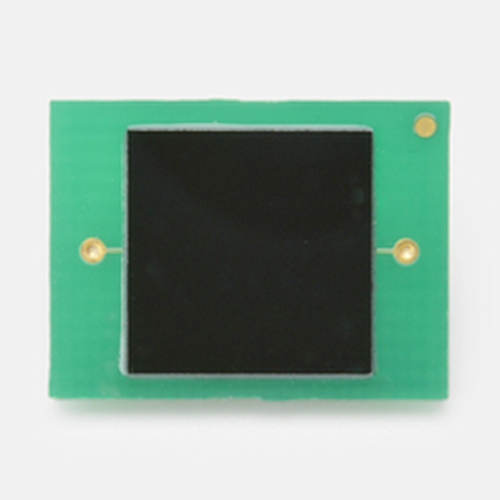

The S12497 is a Si photodiode suitable for non-destructive inspection of baggage and the like and general industrial measurement. As it is a back-illuminated photodiode, photosensitive area does not have wires, and therefore a scintillator can be mounted directly on the photodiode.

Features
– Spectral response range : 400 to 1100 nm
– Photosensitive area: 9.5 × 9.5 mm – Easy scintillator mounting

Specifications

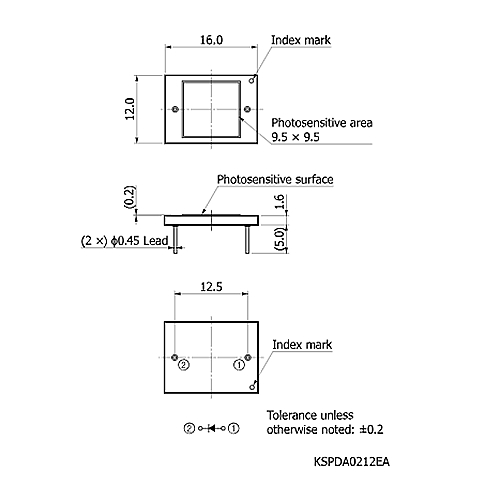

Photosensitive area 9.5 × 9.5 mm
Package Glass epoxy
Package category Unsealed
Cooling Non-cooled
Reverse voltage (max.) 10 V

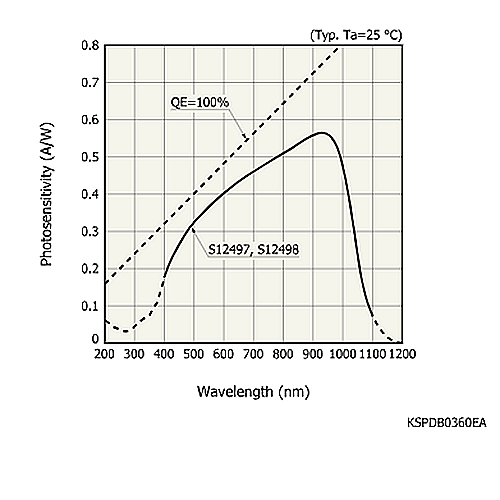

Spectral response range 400 to 1100 nm
Peak sensitivity wavelength (typ.) 920 nm
Photosensitivity (typ.) 0.57 A/W
Dark current (max.) 200 pA
Rise time (typ.) 15 μs
Terminal capacitance (typ.) 950 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=920 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
