hamamatsu Si photodiode S1337-1010BR For UV to IR, precision photometry

$299.00

hamamatsu Si photodiode S1337-1010BR For UV to IR, precision photometry Download Datasheet: hamamatsu Si photodiode S1337-1010BR For UV to IR, precision photometry Features – Low capacitance Specifications Photosensitive area 10 × 10 mm Package Ceramic Package category — Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 340 to 1100 nm Peak sensitivity wavelength…

Category:

Description

hamamatsu Si photodiode S1337-1010BR For UV to IR, precision photometry

Download Datasheet:

hamamatsu Si photodiode S1337-1010BR For UV to IR, precision photometry

Features
– Low capacitance

Specifications

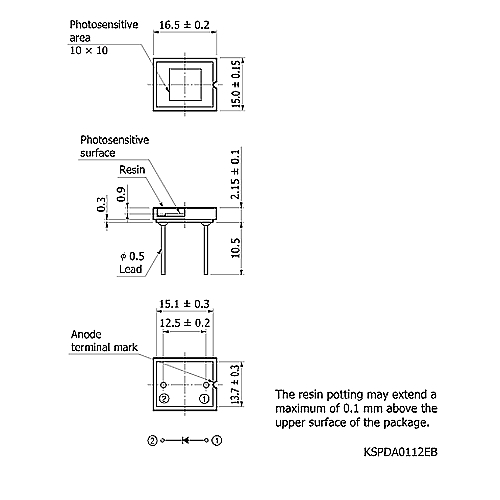

Photosensitive area 10 × 10 mm
Package Ceramic
Package category —
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 340 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm

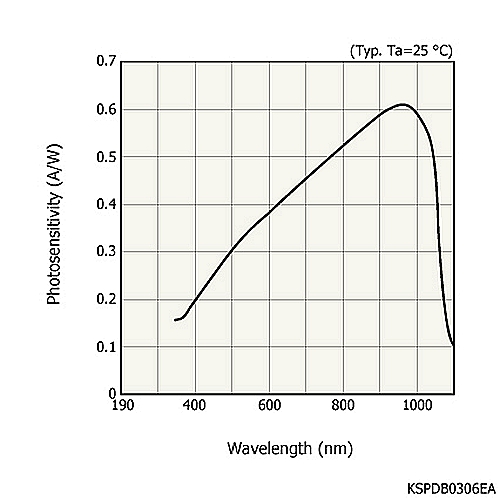

Photosensitivity (typ.) 0.62 A/W
Dark current (max.) 200 pA
Rise time (typ.) 3 μs
Terminal capacitance (typ.) 1100 pF
Noise equivalent power (typ.) 1.5×10-14 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
