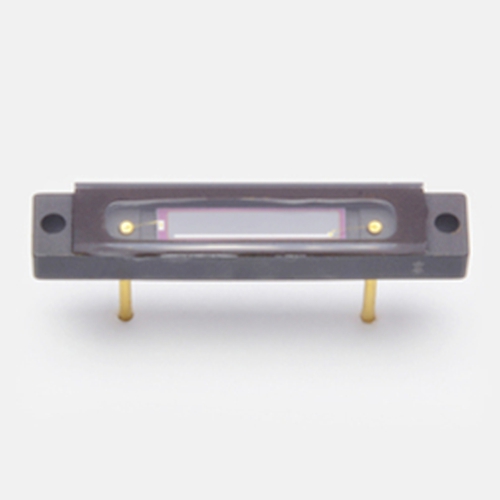

hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry
hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry - Image 2
hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry - Image 3

hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry

$299.00

hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry Download Datasheet: hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry Features – Low capacitance Specifications Photosensitive area 5.9 × 1.1 mm Package Ceramic Package category — Cooling Non-cooled Reverse voltage (max.) 5 V Spectral response range 190 to 1100 nm Peak sensitivity wavelength…

Category:

Description

hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry

Download Datasheet:

hamamatsu Si photodiode S1337-16BQ For UV to IR, precision photometry

Features
– Low capacitance

Specifications

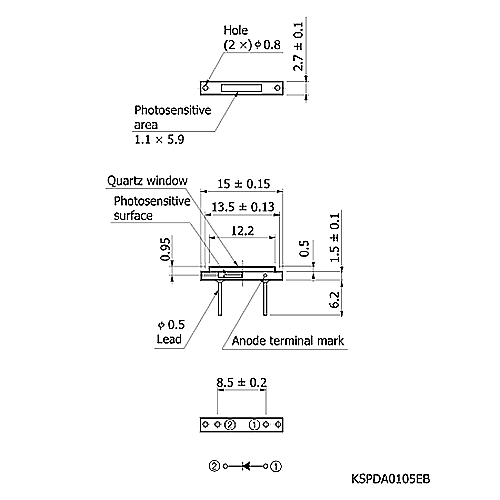

Photosensitive area 5.9 × 1.1 mm
Package Ceramic
Package category —
Cooling Non-cooled
Reverse voltage (max.) 5 V

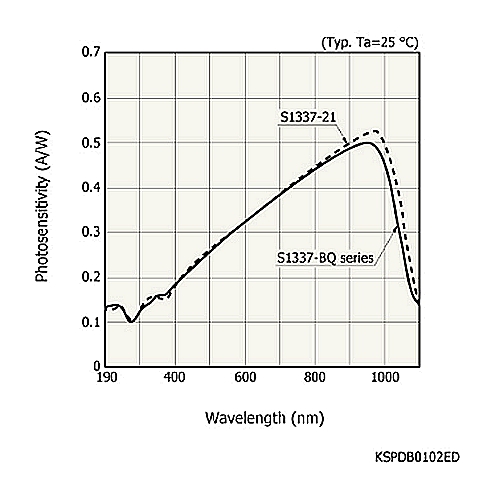

Spectral response range 190 to 1100 nm
Peak sensitivity wavelength (typ.) 960 nm
Photosensitivity (typ.) 0.5 A/W
Dark current (max.) 50 pA
Rise time (typ.) 0.2 μs
Terminal capacitance (typ.) 65 pF
Noise equivalent power (typ.) 1.0×10-14 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=960 nm, Dark current: VR=10 mV, Terminal capacitance: VR=0 V, f=10 kHz, unless otherwise noted
