hamamatsu Si photodiode S6428-01 RGB color sensor
hamamatsu Si photodiode S6428-01 RGB color sensor - Image 2

hamamatsu Si photodiode S6428-01 RGB color sensor

$299.00

hamamatsu Si photodiode S6428-01 RGB color sensor Download Datasheet: hamamatsu Si photodiode S6428-01 RGB color sensor The S6428-01 is a color sensor designed to respectively detect monochromatic colors of blue (λp=460 nm). Features -Plastic package (6 × 8 mm) -Spectral response range: 400 to 540 nm (λp=460 nm) -Insensitive to near IR range -High sensitivity:…

Category:

Description

hamamatsu Si photodiode S6428-01 RGB color sensor

Download Datasheet:

hamamatsu Si photodiode S6428-01 RGB color sensor

The S6428-01 is a color sensor designed to respectively detect monochromatic colors of blue (λp=460 nm).

Features

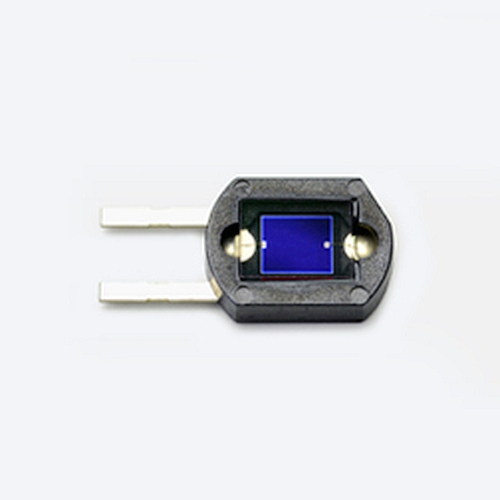

-Plastic package (6 × 8 mm)

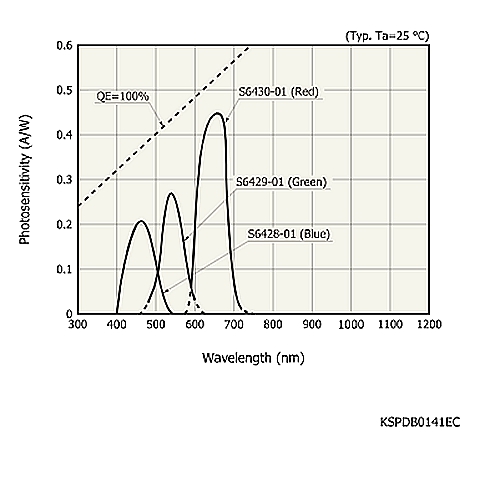

-Spectral response range: 400 to 540 nm (λp=460 nm)
-Insensitive to near IR range
-High sensitivity: 0.22 A/W Typ. (λ=λp)
-Low dark current

Specifications

Package material Plastic
Photosensitive area 2.8 × 2.4 mm
Spectral response range 400 to 540 nm
Dark current (max.) 0.02 nA
Terminal capacitance 200 pF
Rise time 0.5 μs
Note For blue
PIO Measurement Conditions(Product unit) Typ. Ta=25 deg.C, unless otherwise noted
