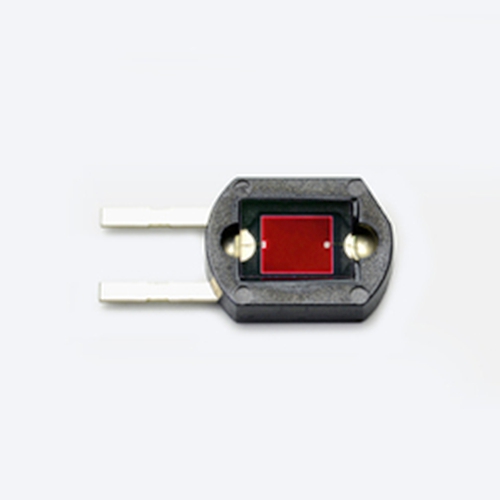

hamamatsu Si photodiode S6430-01 RGB color sensor
hamamatsu Si photodiode S6430-01 RGB color sensor - Image 2

hamamatsu Si photodiode S6430-01 RGB color sensor

$299.00

hamamatsu Si photodiode S6430-01 RGB color sensor Download Datasheet: hamamatsu Si photodiode S6430-01 RGB color sensor The S6430-01 is a color sensor designed to respectively detect monochromatic colors of red (λp=660 nm). Features -Plastic package (6 × 8 mm) -Spectral response range: 590 to 720 nm (λp=660 nm) -Insensitive to near IR range -High sensitivity:…

Category:

Description

hamamatsu Si photodiode S6430-01 RGB color sensor

Download Datasheet:

hamamatsu Si photodiode S6430-01 RGB color sensor

The S6430-01 is a color sensor designed to respectively detect monochromatic colors of red (λp=660 nm).

Features
-Plastic package (6 × 8 mm)

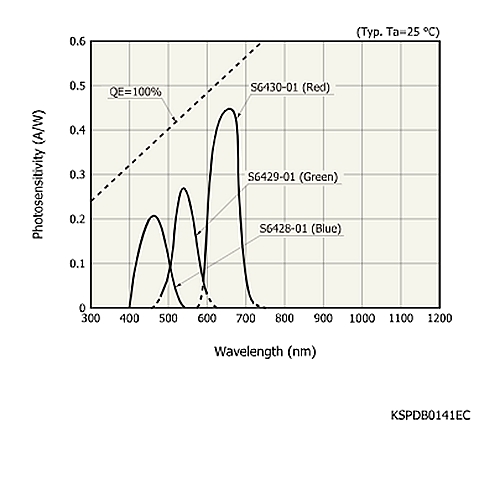

-Spectral response range: 590 to 720 nm (λp=660 nm)
-Insensitive to near IR range
-High sensitivity: 0.45 A/W Typ. (λ=λp)
-Low dark current

Specifications

Package material Plastic
Photosensitive area 2.8 × 2.4 mm
Spectral response range 590 to 720 nm
Dark current (max.) 0.02 nA
Terminal capacitance 200 pF
Rise time 0.5 μs
Note For red
PIO Measurement Conditions(Product unit) Typ. Ta=25 deg.C, unless otherwise noted
