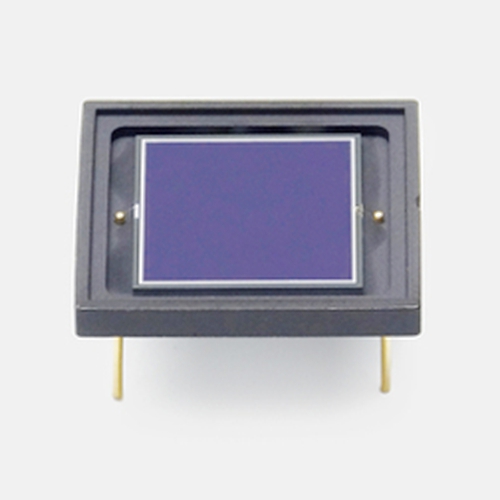

hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes
hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes - Image 2
hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes - Image 3

hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes

$299.00

hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes Download Datasheet: hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes S8552 have sensitivity in the vacuum UV region. It is specially suitable for excimer laser (ArF: 193 nm, KrF: 248 nm) monitoring. Its design optimized for use in the VUV region provides improved stability in…

Category:

Description

hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes

Download Datasheet:

hamamatsu Si photodiode S8552 Vacuum UV (VUV) monitoring photodiodes

S8552 have sensitivity in the vacuum UV region. It is specially suitable for excimer laser (ArF: 193 nm, KrF: 248 nm) monitoring.

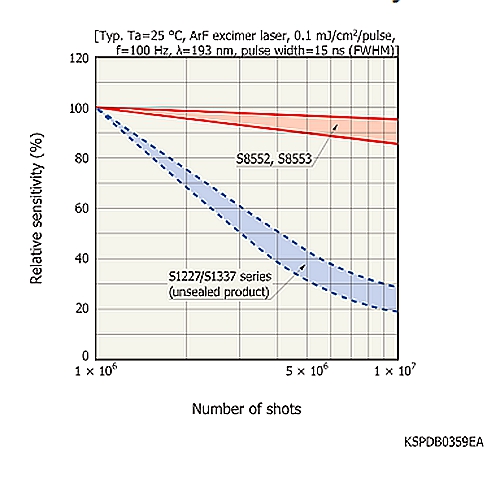

Its design optimized for use in the VUV region provides improved stability in sensitivity for VUV light irradiation compared to previous products.



Features
– Improved reliability for excimer lasers (ArF: 193 nm, KrF: 248 nm)
– Large photosensitive area: 10 × 10 mm

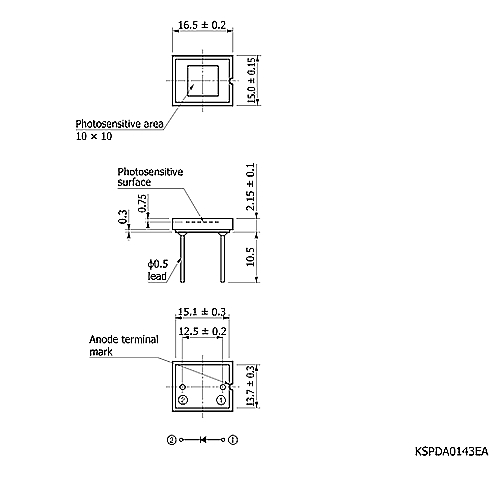

– Windowless package: 16.5 × 15.0 mm ceramic package

Specifications

Photosensitive area 10 × 10 mm
Package Ceramic
Package category Unsealed
Cooling Non-cooled
Reverse voltage (max.) 5 V
Spectral response range 190 to 1000 nm
Photosensitivity (typ.) 0.06 A/W
Dark current (max.) 1000 pA
Rise time (typ.) 9 μs
Terminal capacitance (typ.) 4000 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=193 nm, unless otherwise noted
