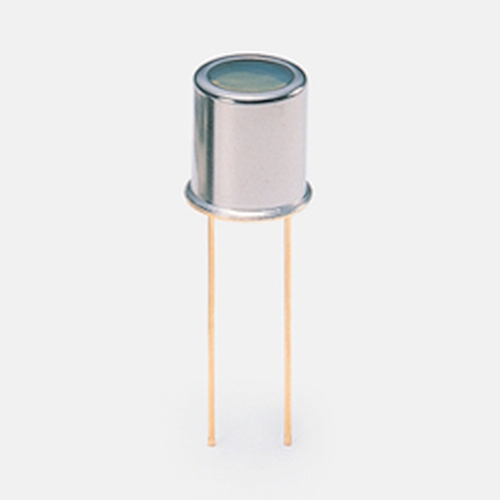

hamamatsu Si photodiode S9219-01 Spectral response like human eye
hamamatsu Si photodiode S9219-01 Spectral response like human eye - Image 2
hamamatsu Si photodiode S9219-01 Spectral response like human eye - Image 3

hamamatsu Si photodiode S9219-01 Spectral response like human eye

$299.00

hamamatsu Si photodiode S9219-01 Spectral response like human eye Download Datasheet: hamamatsu Si photodiode S9219-01 Spectral response like human eye Features – Accurate visible-compensated filter is used – High reliable metal package – TO-5 (active area: 3.6 × 3.6 mm) Specifications Photosensitive area 3.6 × 3.6 mm Package Metal Package category TO-5 with filter Cooling…

Category:

Description

hamamatsu Si photodiode S9219-01 Spectral response like human eye

Download Datasheet:

hamamatsu Si photodiode S9219-01 Spectral response like human eye

Features
– Accurate visible-compensated filter is used
– High reliable metal package

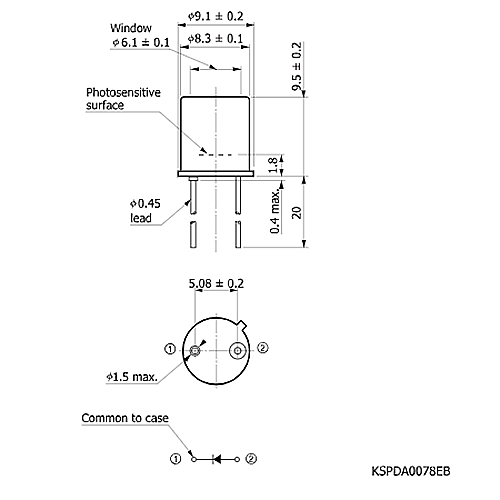

– TO-5 (active area: 3.6 × 3.6 mm)

Specifications

Photosensitive area 3.6 × 3.6 mm
Package Metal
Package category TO-5
with filter
Cooling Non-cooled
Reverse voltage (max.) 5 V

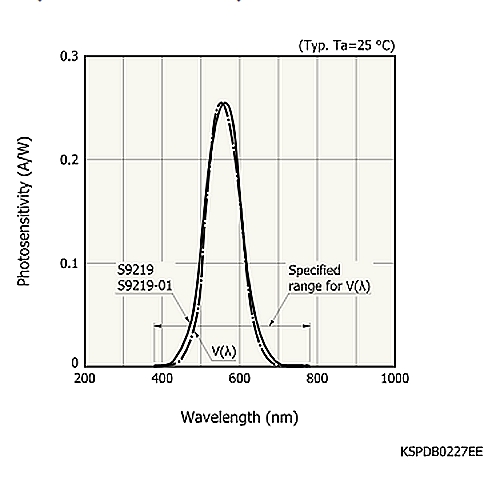

Spectral response range 380 to 780 nm
Peak sensitivity wavelength (typ.) 550 nm
Photosensitivity (typ.) 0.22 A/W
Dark current (max.) 50 pA
Rise time (typ.) 0.5 μs
Terminal capacitance (typ.) 150 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V, f=1 kHz, unless otherwise noted
