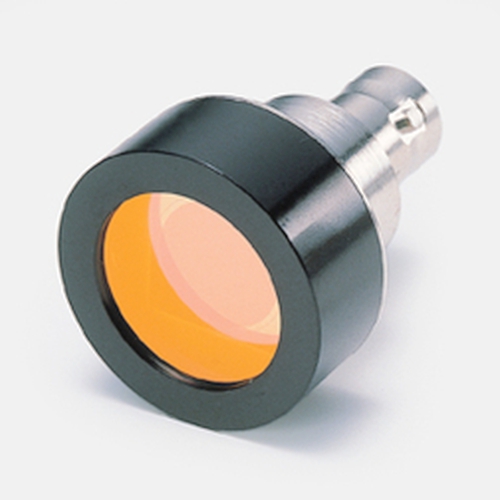

hamamatsu Si photodiode S9219 Spectral response like human eye
hamamatsu Si photodiode S9219 Spectral response like human eye - Image 2
hamamatsu Si photodiode S9219 Spectral response like human eye - Image 3

hamamatsu Si photodiode S9219 Spectral response like human eye

$299.00

hamamatsu Si photodiode S9219 Spectral response like human eye Download Datasheet: hamamatsu Si photodiode S9219 Spectral response like human eye Features – Accurate visible-compensated filter is used – High reliable metal package – Metal package with BNC connector (photosensitive area: φ11.3 mm) Specifications Photosensitive area φ11.3 mm Package Metal Package category With filter Cooling Non-cooled…

Category:

Description

hamamatsu Si photodiode S9219 Spectral response like human eye

Download Datasheet:

hamamatsu Si photodiode S9219 Spectral response like human eye

Features
– Accurate visible-compensated filter is used
– High reliable metal package

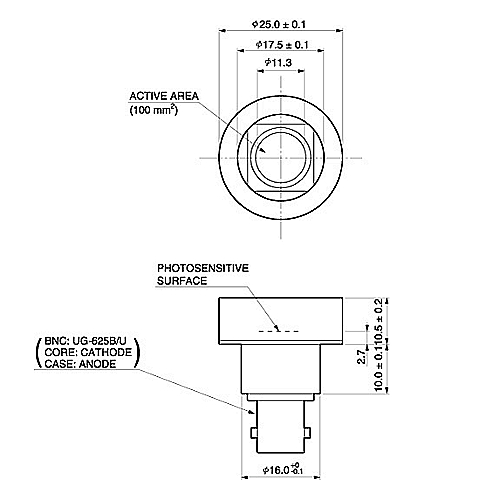

– Metal package with BNC connector (photosensitive area: φ11.3 mm)

Specifications

Photosensitive area φ11.3 mm
Package Metal
Package category With filter
Cooling Non-cooled
Reverse voltage (max.) 5 V

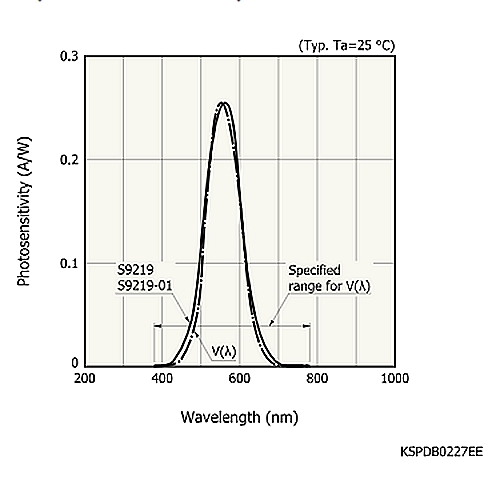

Spectral response range 380 to 780 nm
Peak sensitivity wavelength (typ.) 550 nm
Photosensitivity (typ.) 0.24 A/W
Dark current (max.) 500 pA
Rise time (typ.) 2.5 μs
Terminal capacitance (typ.) 1100 pF
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=λp, Dark current: VR=10 mV, Rise time: VR=0 V, Terminal capacitance: VR=0 V, f=1 kHz, unless otherwise noted
