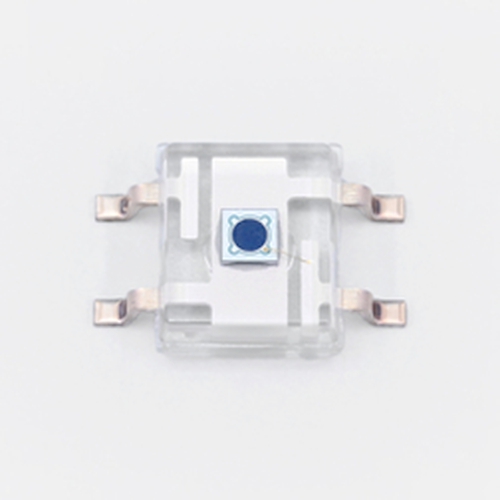

hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package
hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package - Image 2
hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package - Image 3

hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package

$299.00

hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package Download Datasheet: hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package The S10783 is a high-speed APC (auto power control) detector developed for monitoring laser diodes with a peak wavelength of 660 nm or 780 nm. Features – High-speed response: 300 MHz typ. (λ=650…

Category:

Description

hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package

Download Datasheet:

hamamatsu Si PIN photodiode S10783 High-speed detector with plastic package

The S10783 is a high-speed APC (auto power control) detector developed for monitoring laser diodes with a peak wavelength of 660 nm or 780 nm.

Features
– High-speed response:
300 MHz typ. (λ=650 nm, VR=2.5 V), 250 MHz typ. (λ=780 nm, VR=2.5 V)
– High sensitivity: 0.46 A/W typ. (λ=650 nm)
– Surface mount type

Specifications

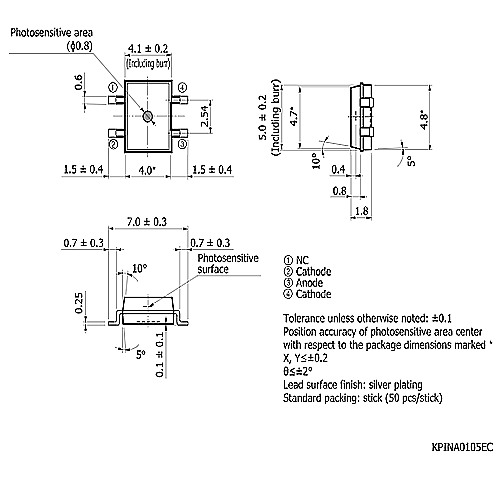

Photosensitive area φ0.8 mm
Package Plastic
Package category —
Cooling Non-cooled
Reverse voltage (max.) 20 V

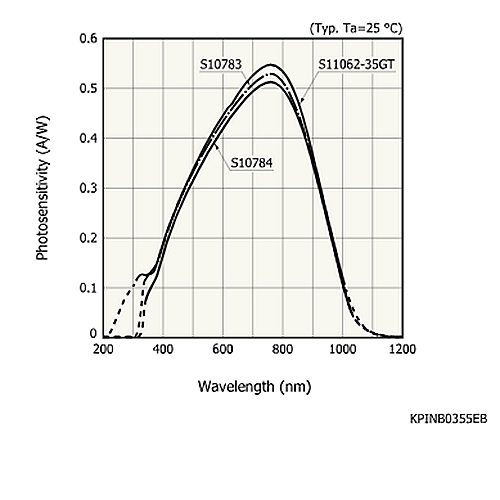

Spectral response range 330 to 1040 nm
Peak sensitivity wavelength (typ.) 760 nm
Photosensitivity (typ.) 0.52 A/W
Dark current (max.) 1000 pA
Cutoff frequency (typ.) 250 MHz
Terminal capacitance (typ.) 4.5 pF
Noise equivalent power (typ.) 3.5×10-15 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=2.5 V, Cutoff frequency: VR=2.5 V, λ=780 nm, Terminal capacitance: VR=2.5 V, f=1 MHz, Noise equivalent power: VR=2.5 V, unless otherwise noted
