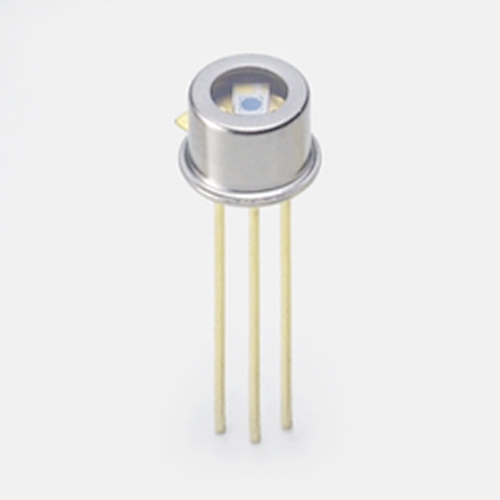

hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz)
hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz) - Image 2
hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz) - Image 3

hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz)

$299.00

hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz) Download Datasheet: hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz) The S5972 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.…

Category:

Description

hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz)

Download Datasheet:

hamamatsu Si PIN photodiode S5972 High-speed response (500 MHz)

The S5972 is a high-speed Si PIN photodiode designed for visible to near infrared light detection. This photodiode provides wideband characteristics at a low bias, making them suitable for optical communications and other high-speed photometry.

Features
– High-speed response: 500 MHz (VR=10 V)
– Low price
– High reliability

Specifications

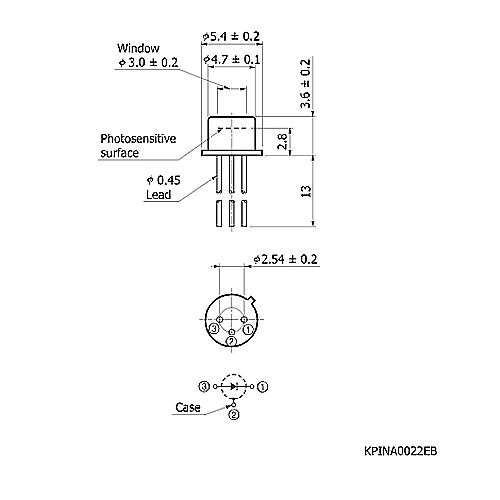

Photosensitive area φ0.8 mm
Package Metal
Package category TO-18
Cooling Non-cooled
Reverse voltage (max.) 20 V

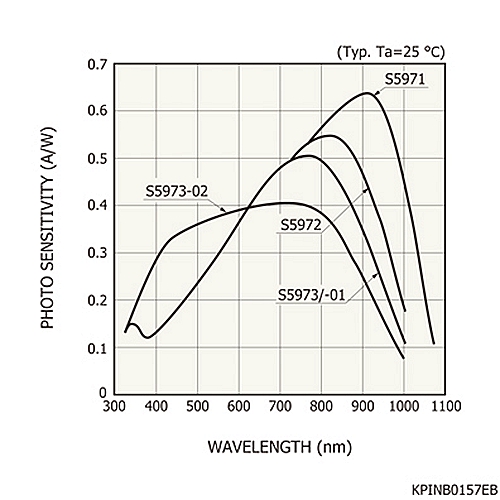

Spectral response range 320 to 1000 nm
Peak sensitivity wavelength (typ.) 800 nm
Photosensitivity (typ.) 0.55 A/W
Dark current (max.) 500 pA
Cutoff frequency (typ.) 500 MHz
Terminal capacitance (typ.) 3 pF
Noise equivalent power (typ.) 3.1×10-15 W/Hz1/2
Measurement condition Typ. Ta=25 ℃, Photosensitivity: λ=780 nm, Dark current: VR=10 V, Cutoff frequency: VR=10 V, Terminal capacitance: VR=10 V, f=1 MHz, Noise equivalent power: VR=10 V, λ=λp, unless otherwise noted
