• Certification: ce
• Model Number: V2

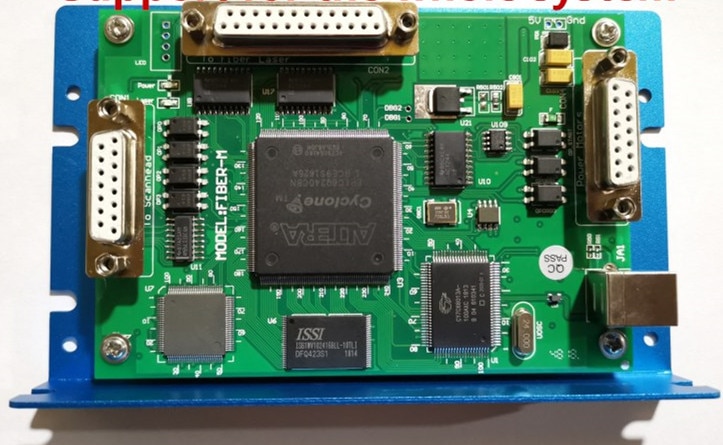

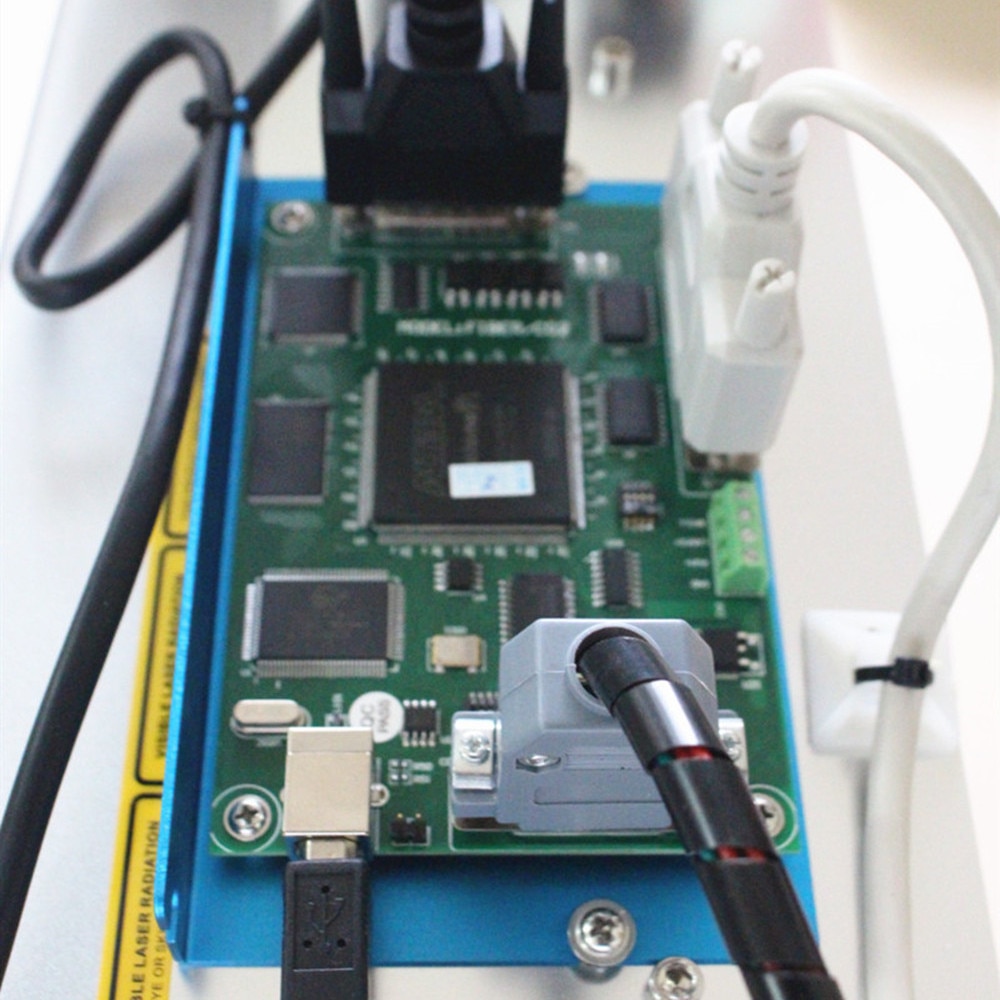

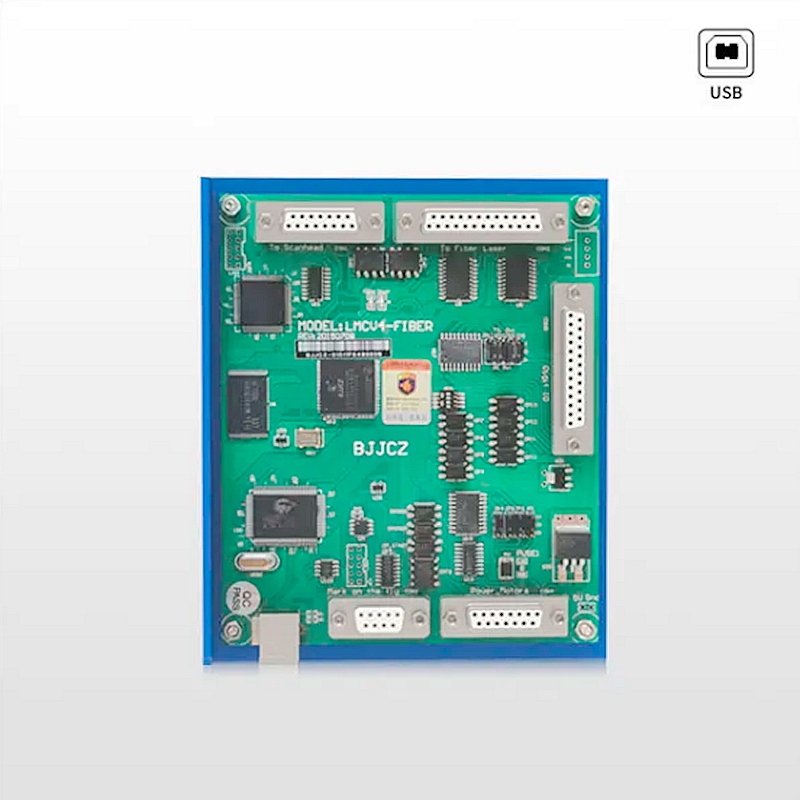

LMCV4 series laser controller works with EZCAD2 software via USB2.0. It is one of the most popular lasers and galvo controllers in the market, with competitive price and high stability. It is compatible with most of the industrial laser sources like fiber, UV, CO2, and green. Laser galvo scanner head with XY2-100 protocol can be controlled. It is widely adopted by global laser system integrators for their laser marking, etching, welding, cutting, engraving machines with galvo scanner…

Note: JCZ stopped the upgrade of EZCAD2 and its controllers due to technical reasons, all new technologies will be only added to EZCAD3 and DLC controllers.

1. Use the DB25 socket connector, Can be directly connected pulsed fiber laser.

2. The galvanometer control signal is digital and can be directly connected to a universal digital galvanometer.

3. Extended axis (stepper motor/servo motor) output: It can output the direction/pulse signal of two channels to control the stepper motor (or servo motor), which can be used for shaft rotation or splicing.

4. 6 universal input digital signals (TTL compatible). XORG0 (IN14) (IN15) where IN0~IN3 are designated as laser state input signals are quoted by CON2 (Laser ST0~Laser ST3).

5. 2 general purpose output digital signals (TTL compatible). OUT4, OUT5 are TTL outputs;

6. ReMark (cache content repeated marking) Signal: used for marking the same content, requiring high-speed marking.

7. Compatible with USB2.0.
