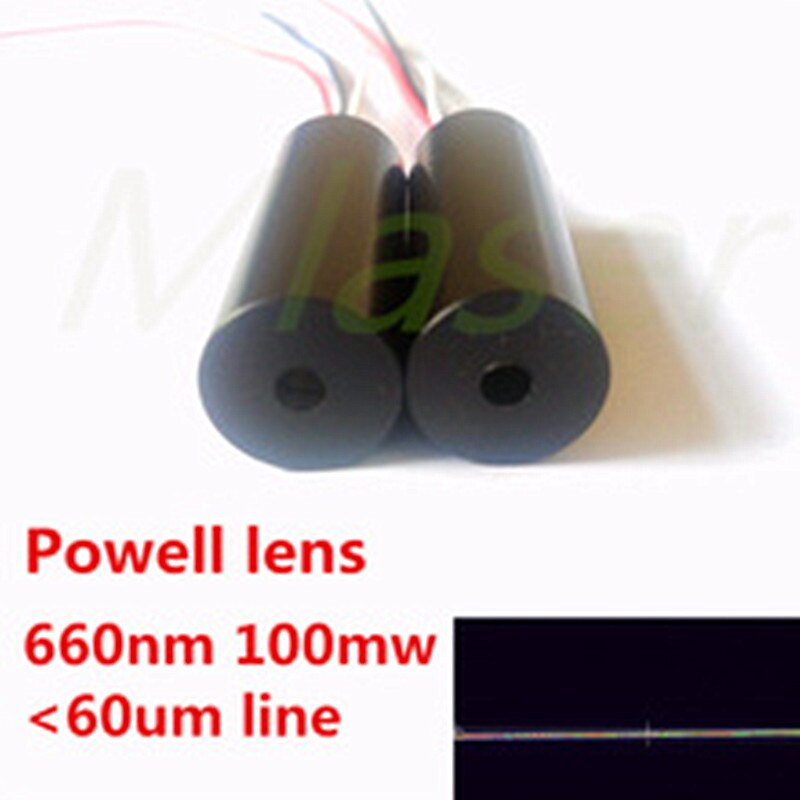

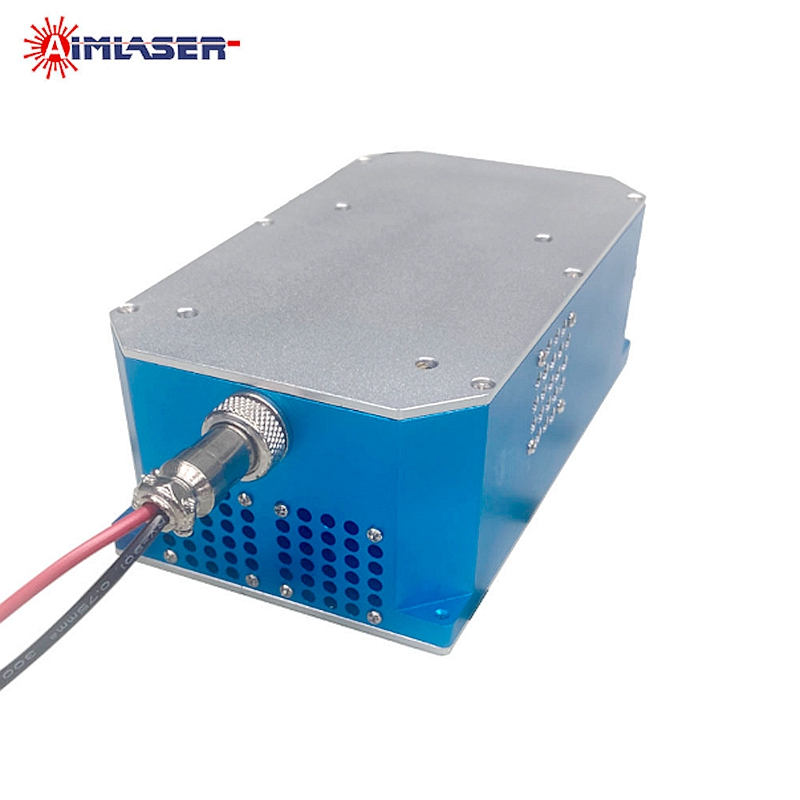

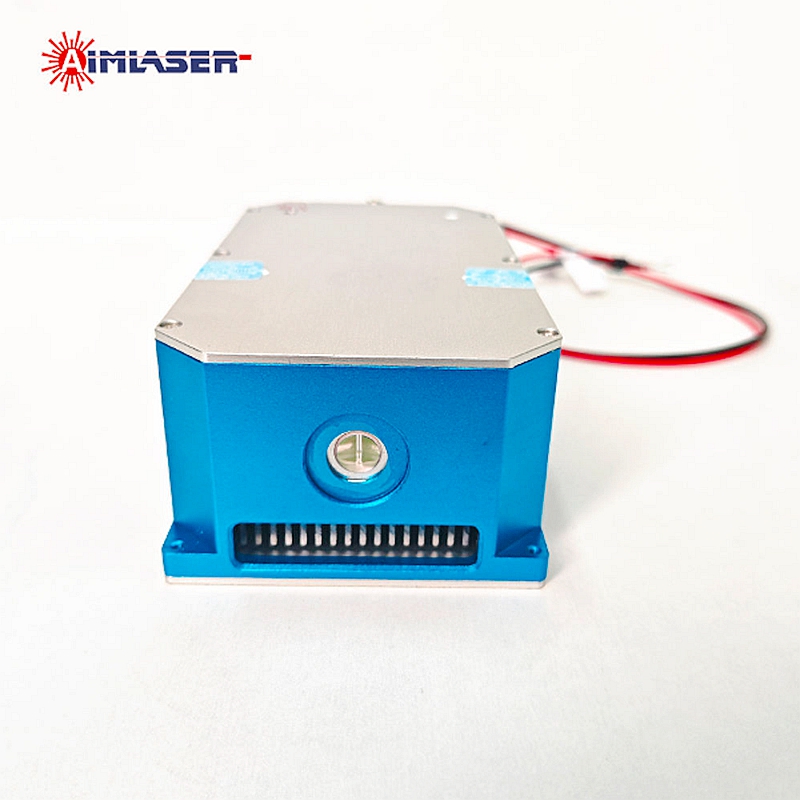

Powell Lens Line width <100um 405nm-980nm Laser Module for industrial-grade high-precision scanning

Understanding Powell Lenses

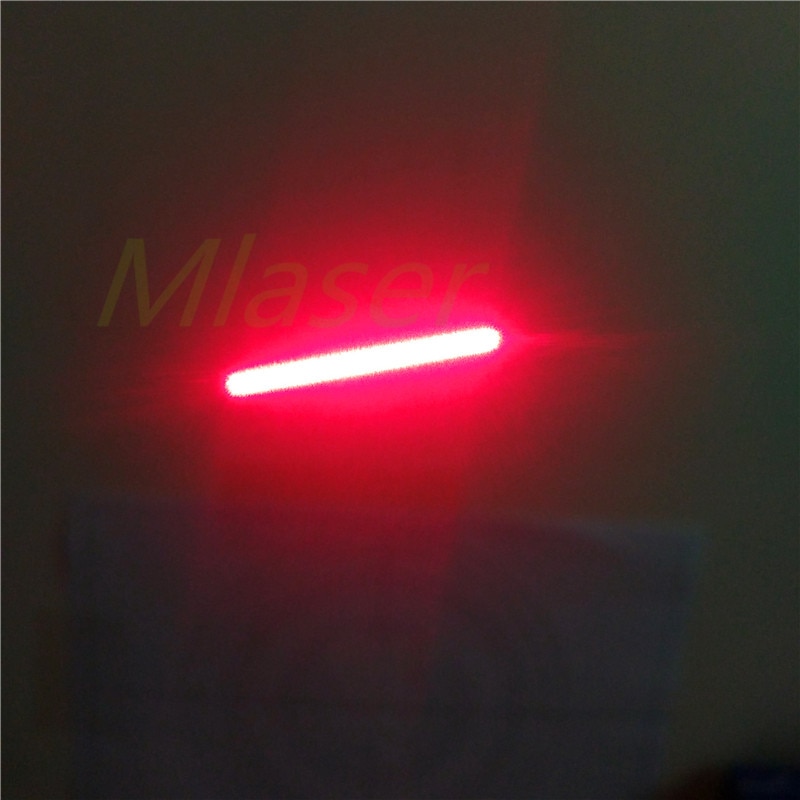

Powell lenses are laser line generator lens that can fan out collimated beams in one dimension. They have the shape of a prism with a rounded roof, and are often used to transform a narrow laser beam into a uniformly illuminating line. While a cylindrical lens produces a poorly illuminated line with fading edges and a hot spot at the center, the straight lines produced by Powell lenses have an even distribution of energy and an even distribution of light along the line.

This even distribution is caused, surprisingly enough, by the rounded roof that characterizes the Powell lens. This two dimensional aspheric curve introduces a large spherical aberration into the system, and this spherical aberration is involved decreasing the light in the central area while increasing the light intensity at the edge. Thus instead of the non uniform Gaussian laser beam that would be produced by cylindrical lenses a uniform straight line is generated. Although there are other ways to perform uniform laser illumination, Powell lenses are by far the most powerful and flexible way to achieve this.

Powell lenses were discovered in 1986 by Dr. Ian Powell, at the National Research Council of Canada in Ottawa, Ontario. They are currently widely used in both industrial and research applications in settings where a uniform intensity distribution is essential, either because the laser light serves as an illumination source or, for instance in materials processing, when the entire area illuminated by the laser must be processed in a uniform, equatable manner.

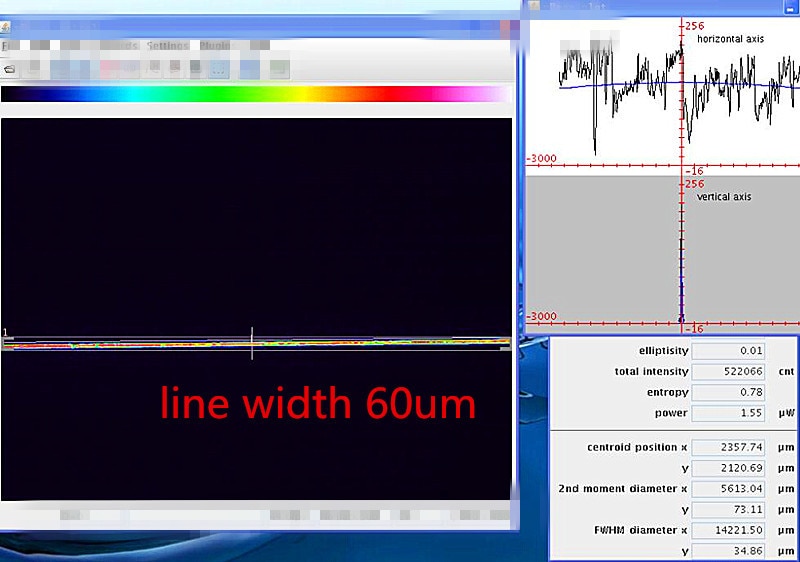

line widthSP1SP2


Industrial areas / Medical / Biochemical / Laser Tag

Item Pictures
laser (5)
Any part or specification of each module can be modified.

We divide a laser diode module structure into 4 main sections:

– a laser diode
– an optical lens
– a laser driver circuit
– optical and mechanical properties


1. Laser diode:

-Main characteristics of laser diode: wavelength, output power, and operating temperature


2. Optical Lens:

– Main characteristics for the beam collimation: divergence angle, laser spot size

– Choice of the laser pattern: laser dot, laser line, laser cross line, or any kind of laser pattern achieved through using DOE


Spot size: The laser spot size has a direct relationship to the distance of projection.


3. Laser Driver Circuit:

The driving circuit of the laser modules can be either APC (Auto Power Control) or ACC (Auto Current Control).

An APC driver controlled laser module will automatically adjust the input current in order to output a constant value of optical power.

An ACC driver controlled laser module will in another way have a constant value of input current, while the output power may vary.

4. Optical and mechanical properties:

-Main characteristics for mechanical requirements: dimension requirements, boresight or called coaxial angel accuracy of laser module.
