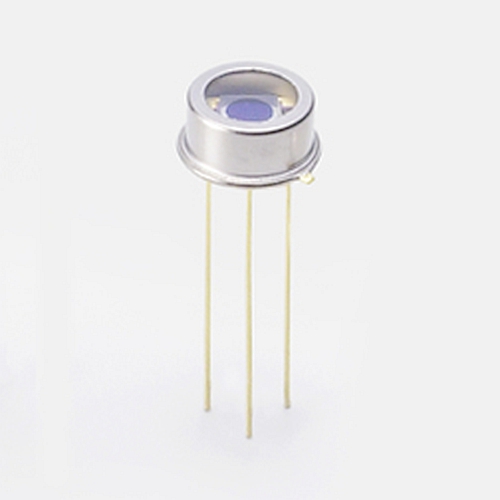

Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode
Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode - Image 2
Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode - Image 3

Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode

$299.00

Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode Download Datasheet: Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode The S3072 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 45 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed…

Category:

Description

Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode

Download Datasheet:

Si PIN photodiode S3072 Large area, high-speed Si PIN photodiode

The S3072 is a Si PIN photodiode having a relatively large photosensitive area yet it offers excellent frequency response at 45 MHz. This photodiode is suitable for FSO(free space optics) and high-speed pulsed light detection.

Features
– Photosensitive area size: φ3.0 mm
– Cutoff frequency: 45 MHz (VR=24 V)
– High reliability: TO-5 metal package

Specifications

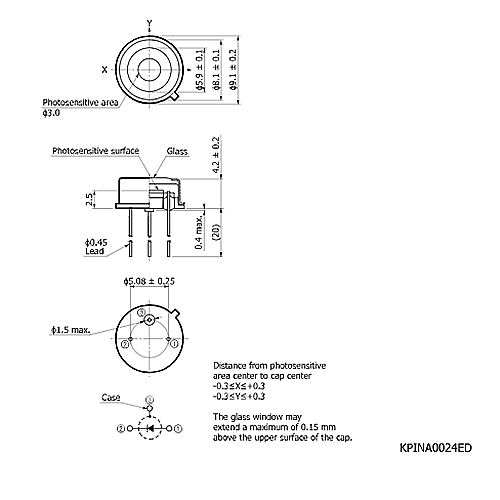

Photosensitive area φ3.0 mm
Package Metal
Package category TO-5
Cooling Non-cooled
Reverse voltage (max.) 50 V

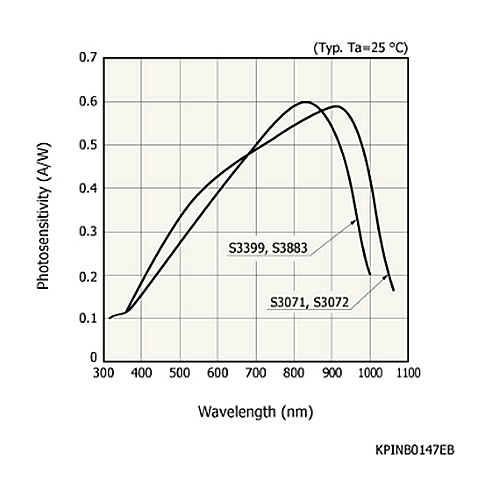

Spectral response range 320 to 1060 nm
Peak sensitivity wavelength (typ.) 920 nm
Photosensitivity (typ.) 0.54 A/W
Dark current (max.) 10000 pA
Cutoff frequency (typ.) 45 MHz
Terminal capacitance (typ.) 7 pF
Noise equivalent power (typ.) 1.6×10-14 W/Hz1/2
Measurement condition Ta=25 ℃, Typ., Photosensitivity: λ=780 nm, Dark current: VR=24 V, Cutoff frequency: VR=24 V, Terminal capacitance: VR=24 V, f=1 MHz, λ=λp, Noise equivalent power: VR=24 V, λ=λp, unless otherwise noted
