Description

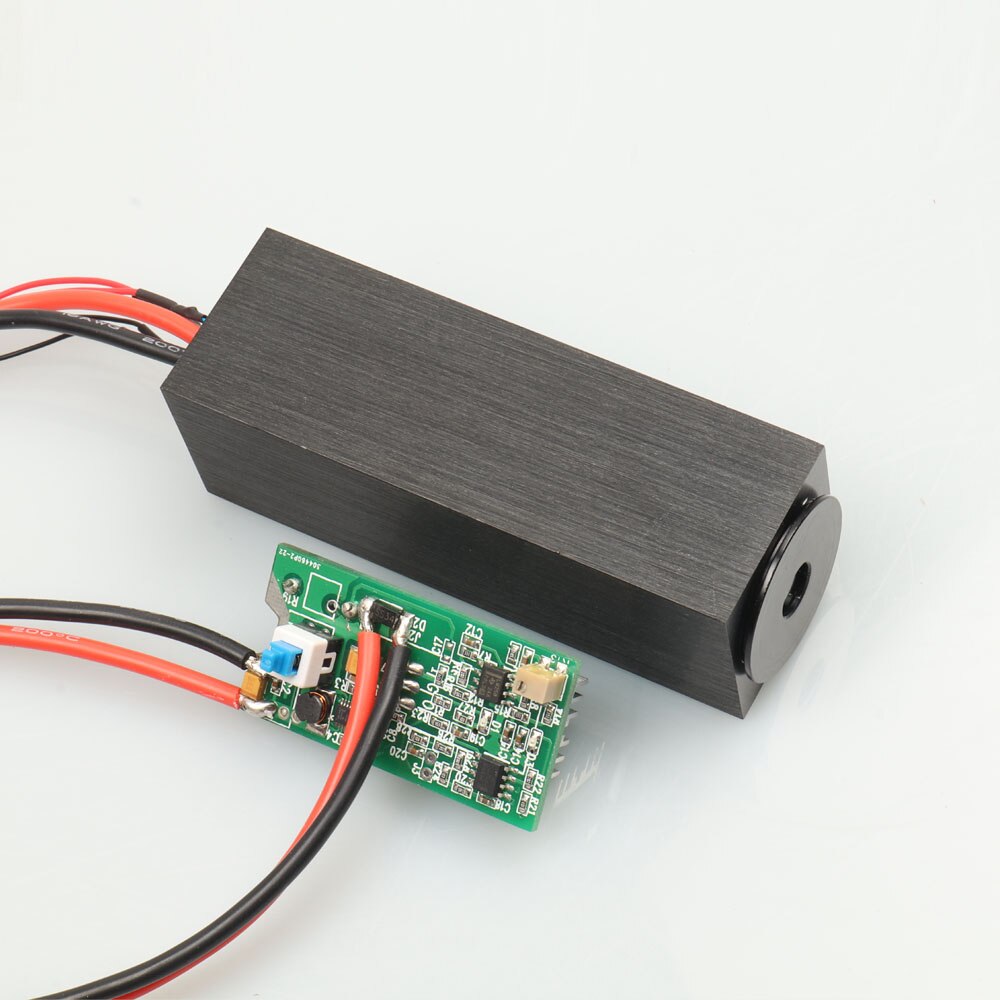

XPL-M532HG1000 1000mw 532nm DPSS green laser module
1. DANGER! Don’t shine the beam to eyes!
2. Becauful the working voltage! It will destroy the LD if the voltage is too high.
Specification:
|
Technical Specs Name: |
XPL-M532HG1000 |
|
Wavelength: |
532nm nominal center |
|
Type: |
Dpss Laser |
|
Lasing medium: |
Pump Laser |
|
Transverse mode: |
TEM00 |
|
Min power: |
1000mw |
|
Arctic series class: |
Class IV |
|
Beam Diameter: |
<Dia3.0mm |
|
Beam divergence: |
<2.0mrad |
|
Stability(at 25℃) |
<10% |
|
Preheating time |
<10s |
|
Best working temperature |
25℃ |
|
Operating temperature |
5-35℃ |
|
Temperature control |
Air-cooled or TEC cool |
|
Body: |
6061-T6 Aircraft-Grade Aluminum |
|
Laser finish: |
Ordinary Oxidation |
|
Color of shell: |
Black |
|
Size: |
30x30x90mm(laser head)+90x45x8mm(driver) |
|
Weight: |
380g (laser +driver) |
|
Power consumption: |
1.8V @ <6.5A |
|
Power supply: |
DC2.4V |
|
Continuous expected lifetime: |
>5,000 hours |
|
Warranty: |
1 Year |
