Description

10 GHz Analog Driver for Analog Applications

pplications at frequencies up to 12 GHz.
The DR-AN-10-MO is characterized by a low Noise Figure and a linear transfer
function whose 1 dB compression point is above 21 dBm. It exhibits flat Group
Delay and Gain curves with reduced ripple over the entire bandwidth.
The DR-AN-10-MO operates from a single power supply for safety and ease of

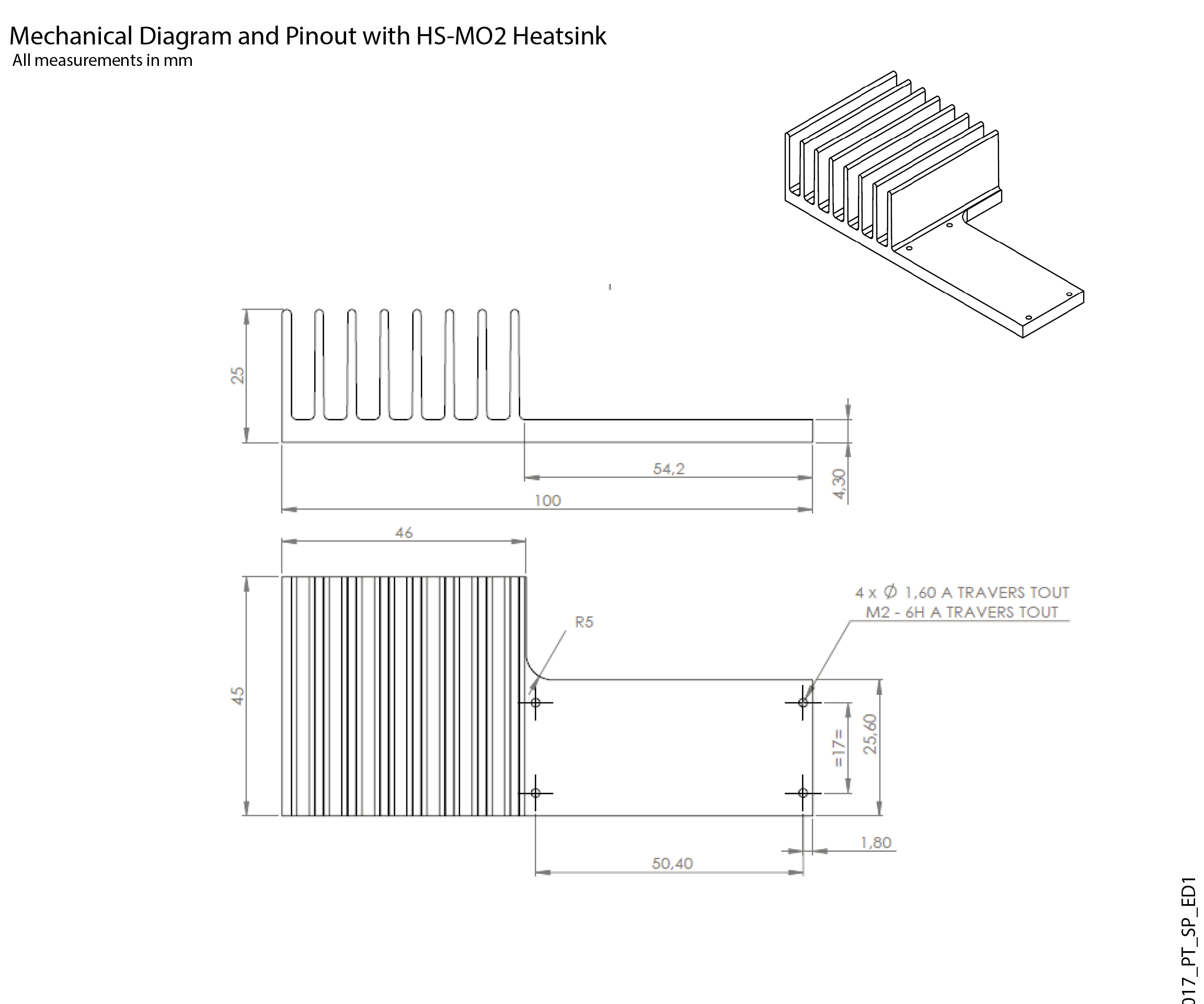

use, and offers gain control over 3 dB. The amplifier comes in a compact 52 mm
x 25.6 mm housing with K type RF connectors (compatible SMA) and with an
optional heat sink.
This amplifier module is ideally suited to drive optical modulators for analog
applications

FEATURES
• Output voltage up to 9 Vpp
• Linear amplifier
• Flat gain up to 12 GHz
• Single voltage power supply
• Low group delay variation

APPLICATIONS
• LiNbO3
modulators
• OFDM, RF over fiber
• Linear amplification
• Clock amplifier
• Research & Development

OPTIONS
• Heat-sink

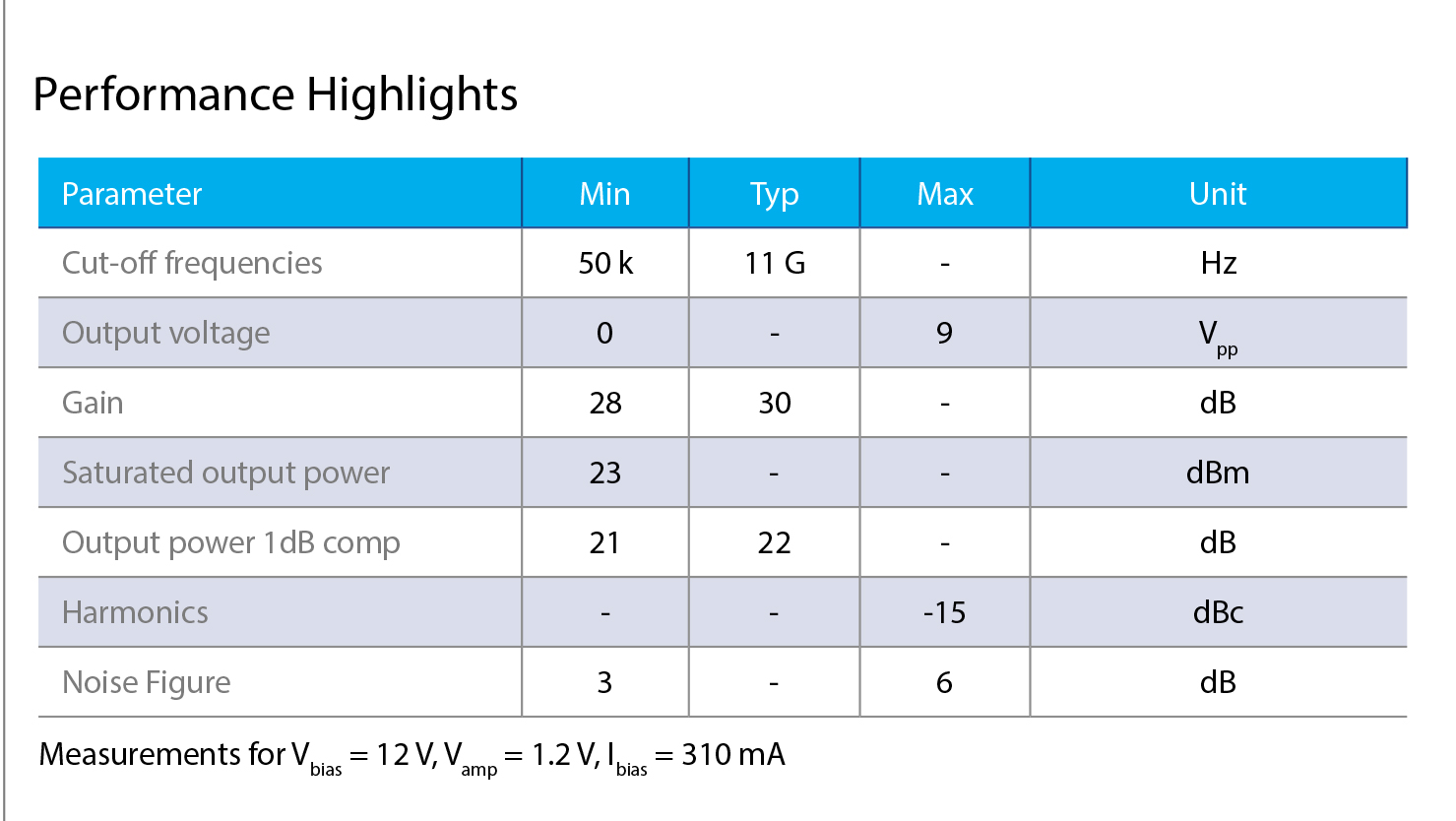

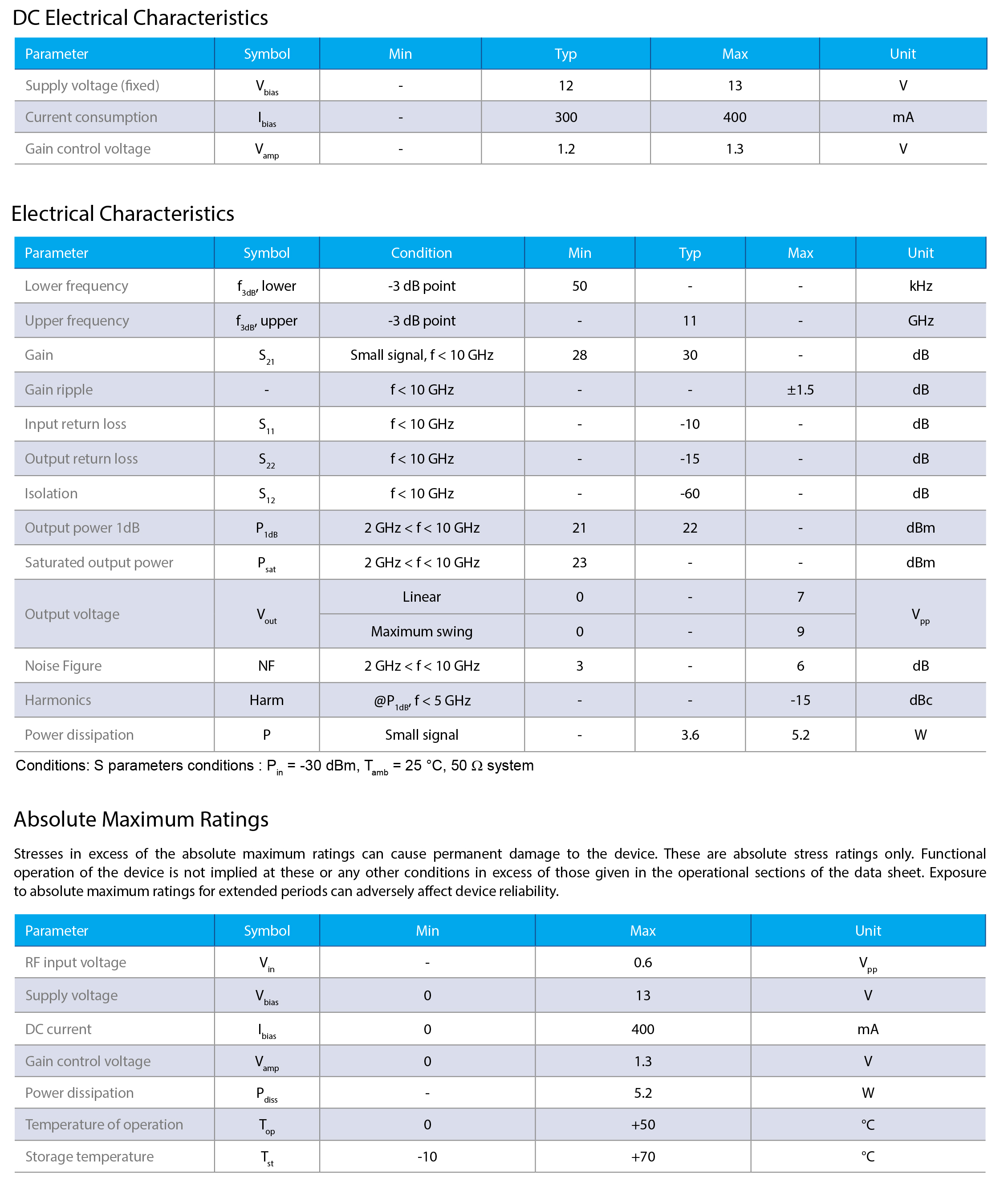

Cut-off frequencies: 11 G
Output voltage: 0- 9 Vpp
Gain :28-30 dB
Saturated output power: 23 dBm
Output power 1dB comp: 21-22 dB
Harmonics: -15 dBc
Noise Figure: 3 – 6 dB



Please kindly check the attached datasheet :
