Description:

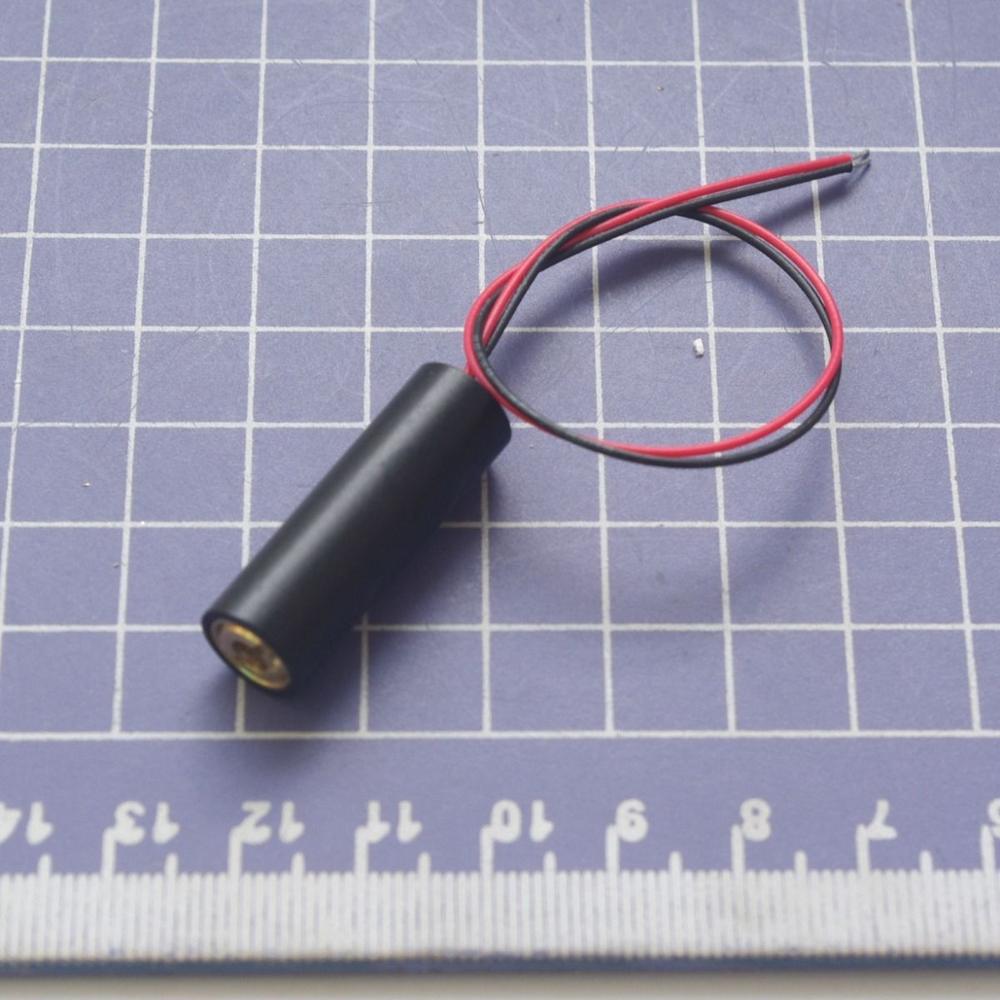

Size: 12 × 42mm (we also have other size, if you need please leave us a message to consult)

Material: aluminum

Surface Treatment / Color: aluminum black

Life: continuous output and life> 10,000 hours

Output wavelength: 808nm / 10nm

Output power: <200mw

Range:> 2000 m

Spot shape / Diameter:Line

Circuit control: ACC constant current circuit

Operating Voltage: DC = 3V ~ 5V

Working Current: <270mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10C ~ +40 C

Storage temperature: -20 C ~ +60 C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.
