Description
cree xml xml2 led T6 U2 Flashlight driver 17mm 20mm 2.7-4.2V 2-2.2A 5-Mode/1 Mode LED Driver for CREE XML LED Emitter
- Output Voltage: 3-3.7V
- Material: Aluminum Board
- Features: High Quality Great Value
- Output Signal: 3-3.7V
- Item Type: Lighting Transformers
- Warranty: 1 year
- Weight: 0.5g
- Model Number: XML T6 Driver
- Input Signal: 3-4.2V
- Input Voltage: 3-4.2V
Specification:

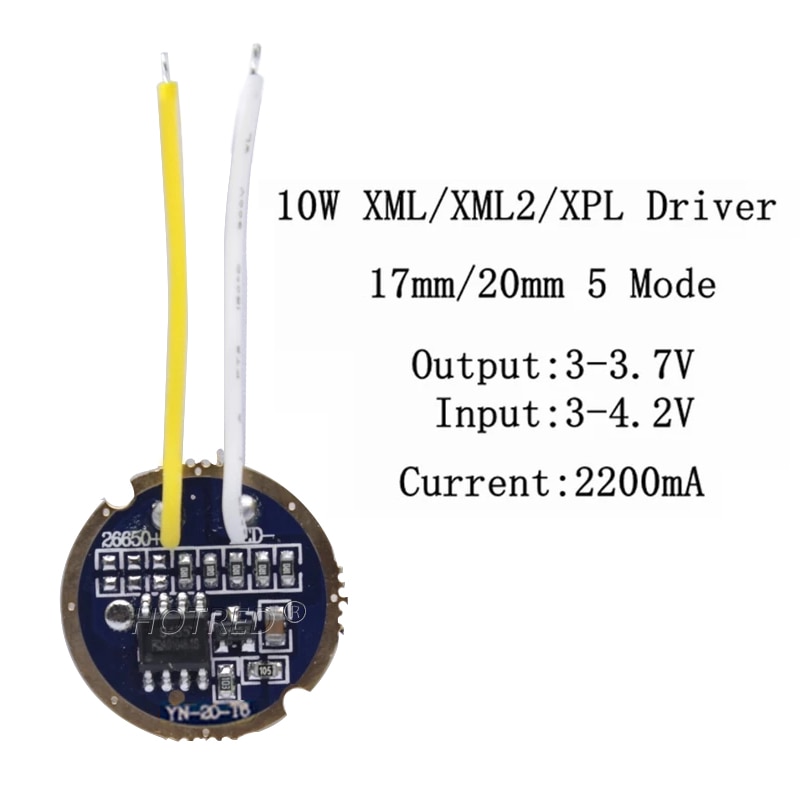

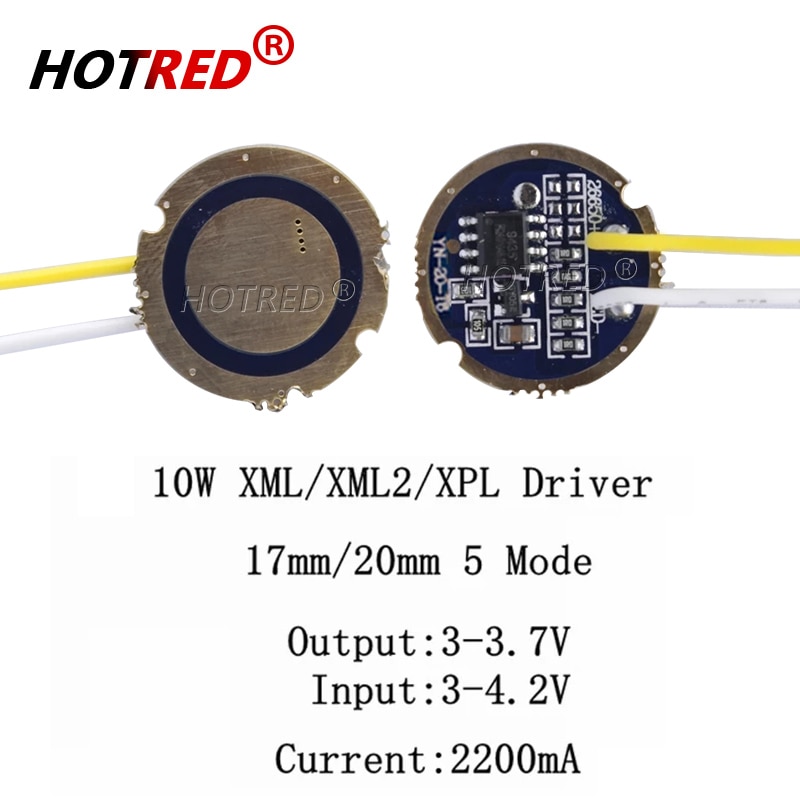

CREE XML LED Driver
Input Voltage: 3.-4.2V DC
Output Current:350-2200mA
Output Voltage: 3-3.7V
Work for 1pcs XML/XML2 T6 U2 LED 10W high power led chip
Connection:
RED/Led+:LED Output Positive
Blue/Led-:LED Output Negative
Diameter: 17mm/20mm
Thickness: 1.6mm
Operating Temperature: -20~80 degree
Storage Temperature: -20~80 degree
Function: Open circuit, Short circuit and Over loading
Application: Fit for P7,XML-T5,XML-T6 High Power LED light.
Remark:
(Note: the red wire is positive and the blue wire is negative, both can attach to the led. On the backside,inside of the circle,it is positive for power supply;outside of the circel,it is negtive for power supply.)
Safety information:
Supply voltage of this product is DC3.7V .
Never connect two wires directly in case of short circuit
Lead wire should be connected correctly according to colors that connecting diagram
Warranty of this product is one year, in this period we guarantee replacement or repairing with no charge, but exclude the artificial situation of damage.
Package contentment (Brand NEW) :
1pcs 3.7V LED Driver for Cree P7/XML-T5/XML-T6 High Power LED Light Lamp
