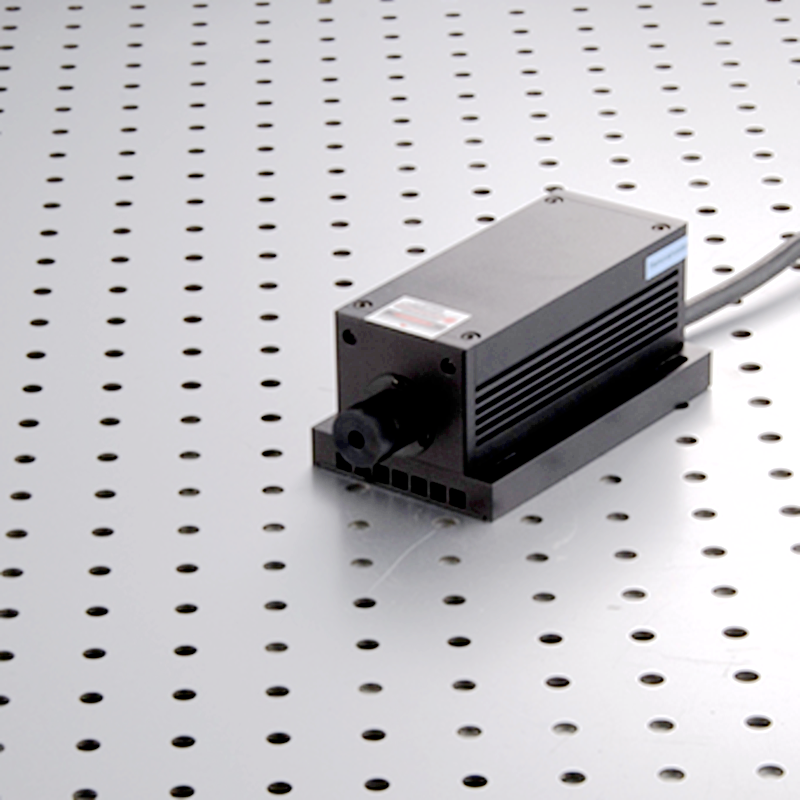

295nm UV Solid State Laser Q-switched Pulsed Laser

$9,800.00

Deep UV Solid State Laser Acousto-Optic Q-switched Pulsed Laser with a short wavelength of 295nm.  The 295nm laser is not a regular UV laser, it’s deep UV laser.

Description

Deep UV Solid State Laser Acousto-Optic Modulator Included Q-switched Pulsed Laser with a short wavelength < 295nm.  The 295nm laser is not a regular UV laser, it’s deep UV laser, as its wavelength is much shorter than other UV laser, such as 405nm, 355nm, 357nm.  295nm UV Solid State Laser Q-switched Pulsed Laser .

Central wavelength (nm) 295+-2
Operating mode Acousto-Optic Modulator Q-switched Laser
Average power (mW) 1-50
Rep. rate (kHz) 10
Pulse duration (ns) 10+-2
Single pulse energy (uJ) 1-5
Peak power(W) 500W@10kHz@50mW
Beam diameter at the aperture (1/e2,mm) Elliptical (1:2), Beam spot1.5*3mm;
Beam divergence, full angle (mrad) <1
Power stability (rms, over 4 hours) <3%, <5%
Beam height from base plate (mm) 120
Warm-up time (minutes) <10
Cooled method Air Cooled
Power supply PSU-AOM (3U)
Expected lifetime (hours) 10000
