Description
- Item Type: Stage Lighting Effect
- Style: DMX Stage Light
- Occasion: Professional Stage & DJ
- Model Number: 5W RGB Laser Module
- Power: 80W
- Voltage: 90-240V
- Brand Name: DYUE
- Laser Name: 6W Laser Module
- Color: RGB Laser Modules
- Guaranteed Power: 5W
- Power Red: 1W / 635nm
- Power Green: 2W / 520nm
- Power Blue: 2W / 447nm
- Beam Specifications: ca. 6.2mm / 1.6mrad
- Laser Sources: CW Diode, DPSS Laser
- Laser Class: 4
- Main Feature: High Power Laser Diode
2pcs/lot Top Quality Laser Module OEM High Power 5W RGB Full Color Laser Diode For Stage Light Show Disco Party Laser Light
Main Features:
Color diode laser at 635,520,447nm is made features of long lifetime,low cost and easy operating, which is widely used in ILDA laser show
Specifications:
Wavelength: 635/520/447nm ( error range 5nm)
Operating mode: CW
Output power:5W
Ratio power: Red laser 1W, Green laser 2, Blue laser 2W
Power stability: less than 1%, less than 3%, less than 5% (rms, over 4 hours)
Beam diameter: 5X4.5, 6.2X5.2, 6.2X5.2 (mm, at the aperture)
Beam divergence: less than 1.6 (full angle, mrad)
Polarization direction: Horizontal + Vertical
Warm-up time: less than 5 minutes
Beam height from base plate: 35mm
Operating temperature: 25 degrees celsius (error range 3)
Power supply: 90-240V AC
Modulaton option: TTL / Analog
Expected liftetime: 10000 hours
Warranty: 1 year

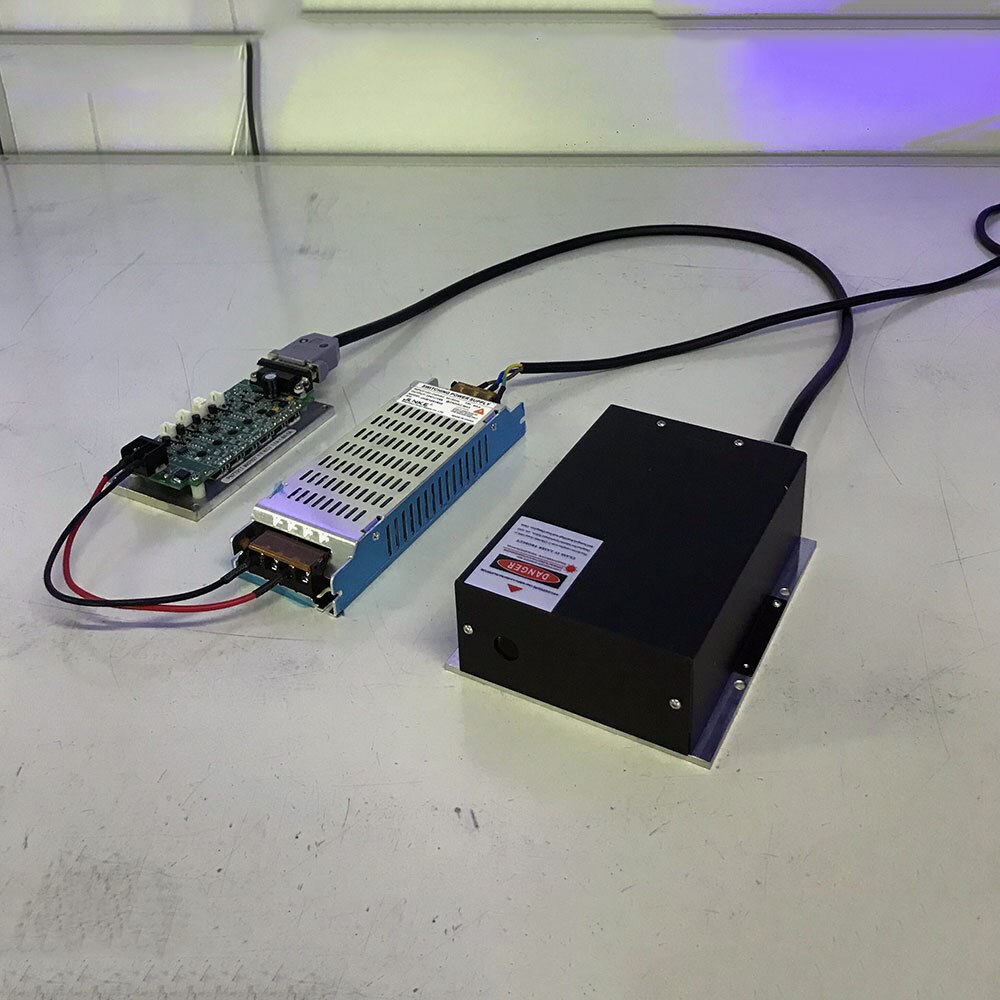

Packing Lists:

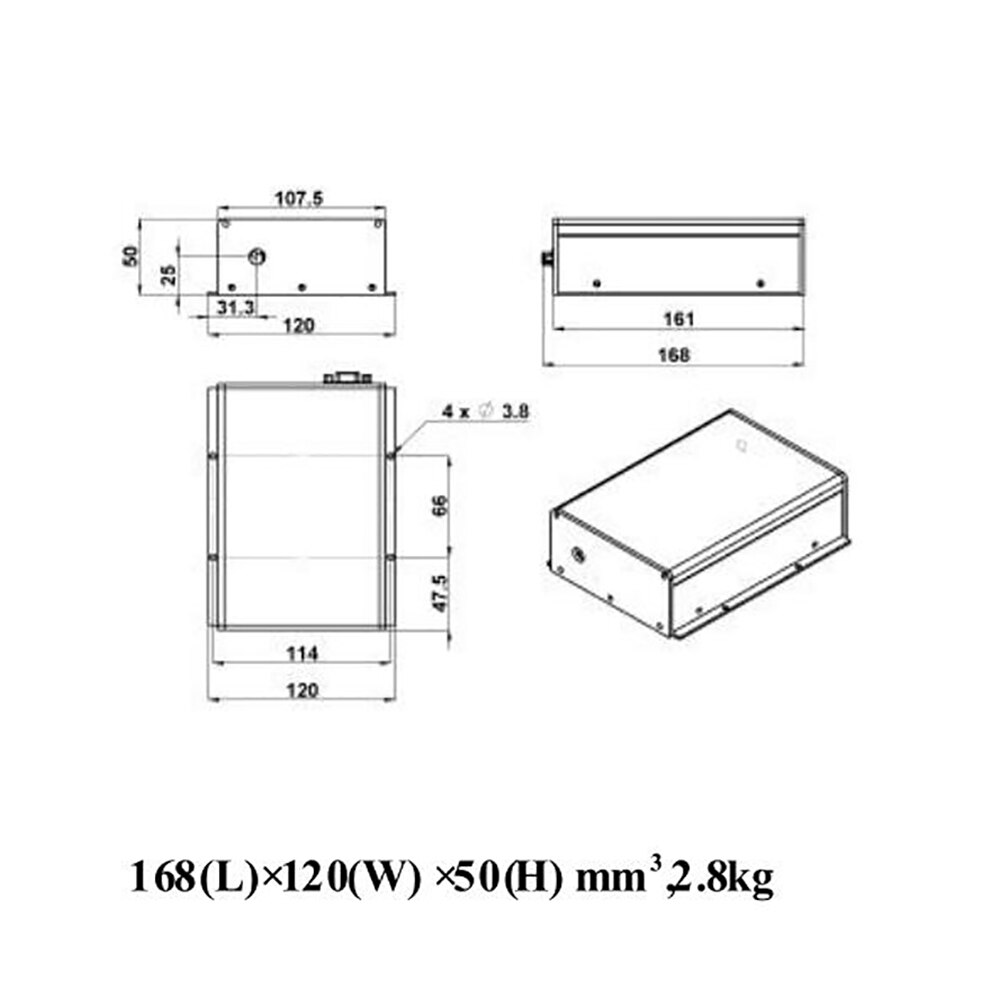

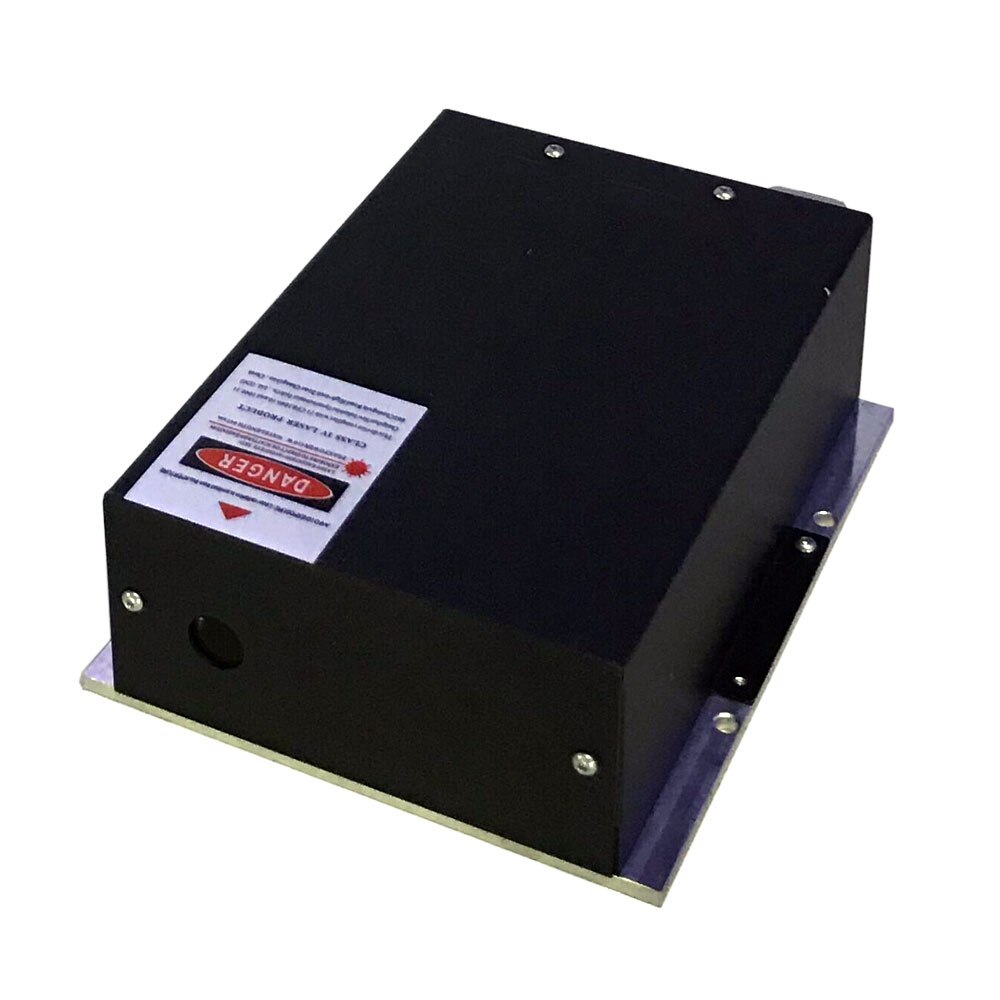

1pcs 5W RGB Laser Module

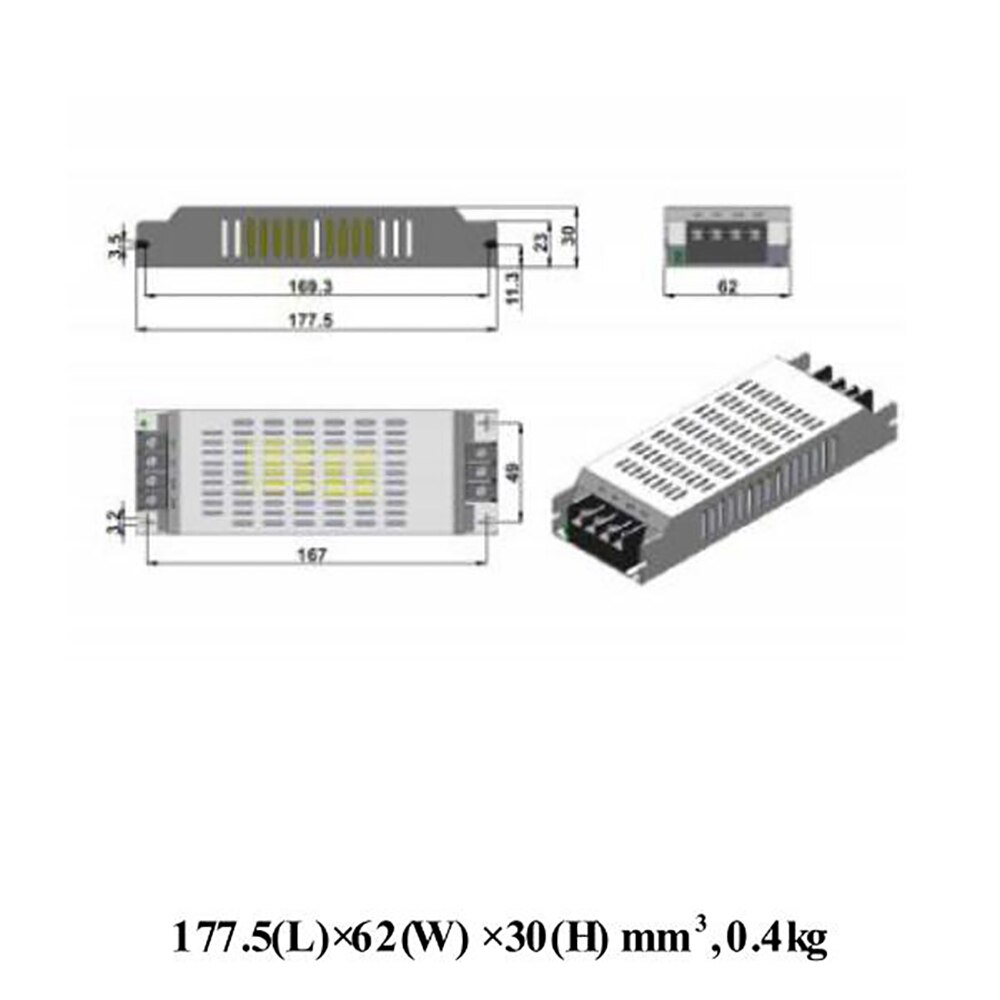

1pcs Power Supply

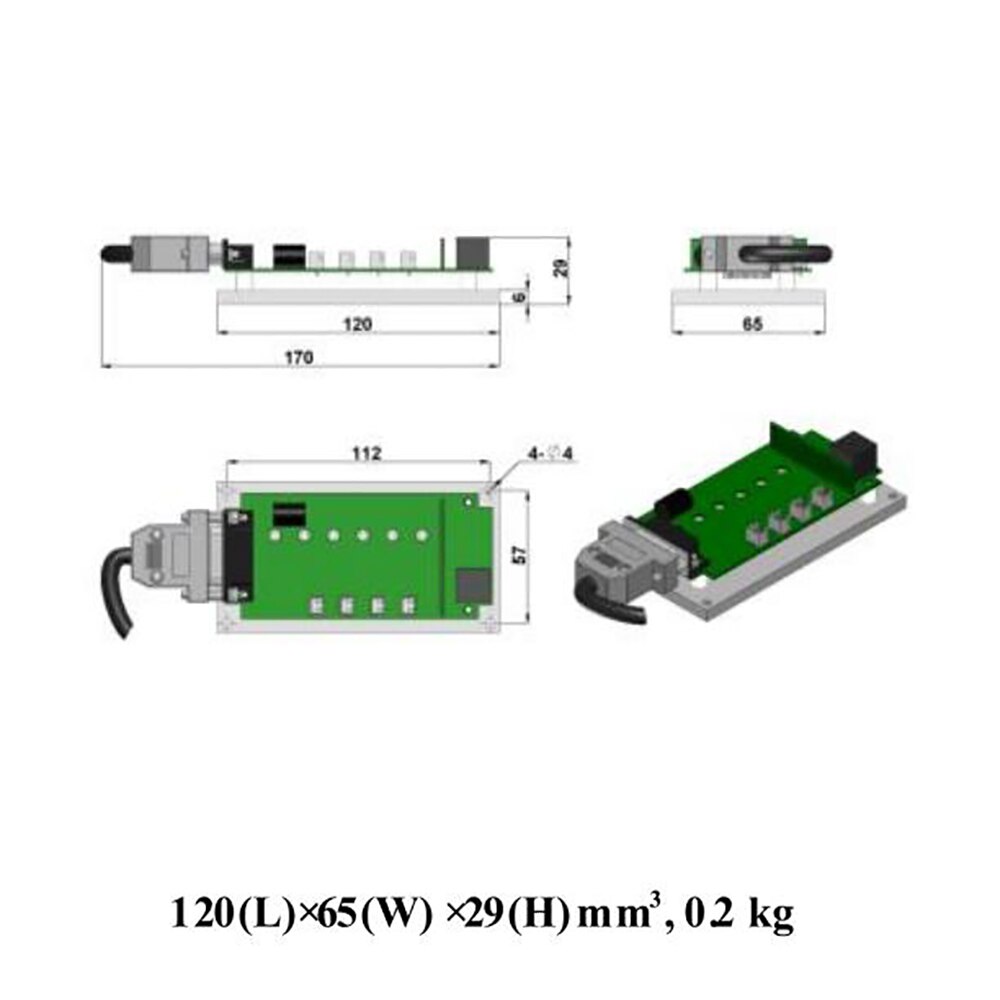

1pcs Driver Board
