31 parallel line effect red green blue laser modules multi-line laser modules 3D scanning laser lights

$690.00$759.00

SKU: N/A Category:

Description

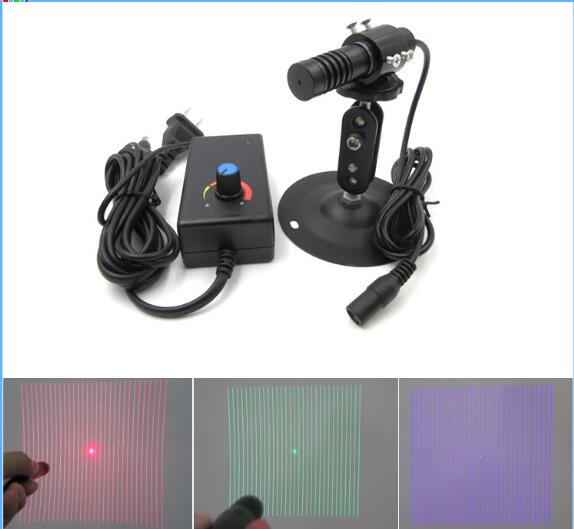

31 parallel line effect red green blue laser modules multi-line laser modules 3D scanning laser lights

[Specifications]
Product Name: Laser Module
Laser Color: Red / Green / Blue
Wavelength: Red 650nm / Green 520nm / Blue 450nm
Laser Shape: Rectangle
Power: 100mW
Installation Height: 0~3 meters
Working Voltage: DC 2.8V~5.2V
Working Current: <500mA
Dimensions: 16*70mm
Optical Lens: Grating sheet (imported from Germany)

At 50 cm: the length of the line is 26.4 cm, the width of the 31 parallel lines is 26.4 cm, and the distance between the lines is 0.88 cm
At 100 cm: the length of the line is 52.8 cm, the width of the 31 parallel lines is 52.8 cm, and the distance between the lines is 1.76 cm

[Package Include]
1 x Laser module
1 x Power supply
1 x Laser module holder



Additional information

color

red, green, blue
