Description
Specifications:
| Name | Laser Module |
| Power | Max.5W Average 3W |
| Wavelength | 445nm-450nm |
| Luminous color | Blue |
| Focu s | Yes |
| Input voltage | DC 12V |
| Current | 5A |
| TTL | Yes, low level (0V): OFF, high level (5V): ON. |
| Frequency | 0-20KHz |
| Cooling mode | radiator and cooling fan |
| Material | aluminum heatsink + brass shell |

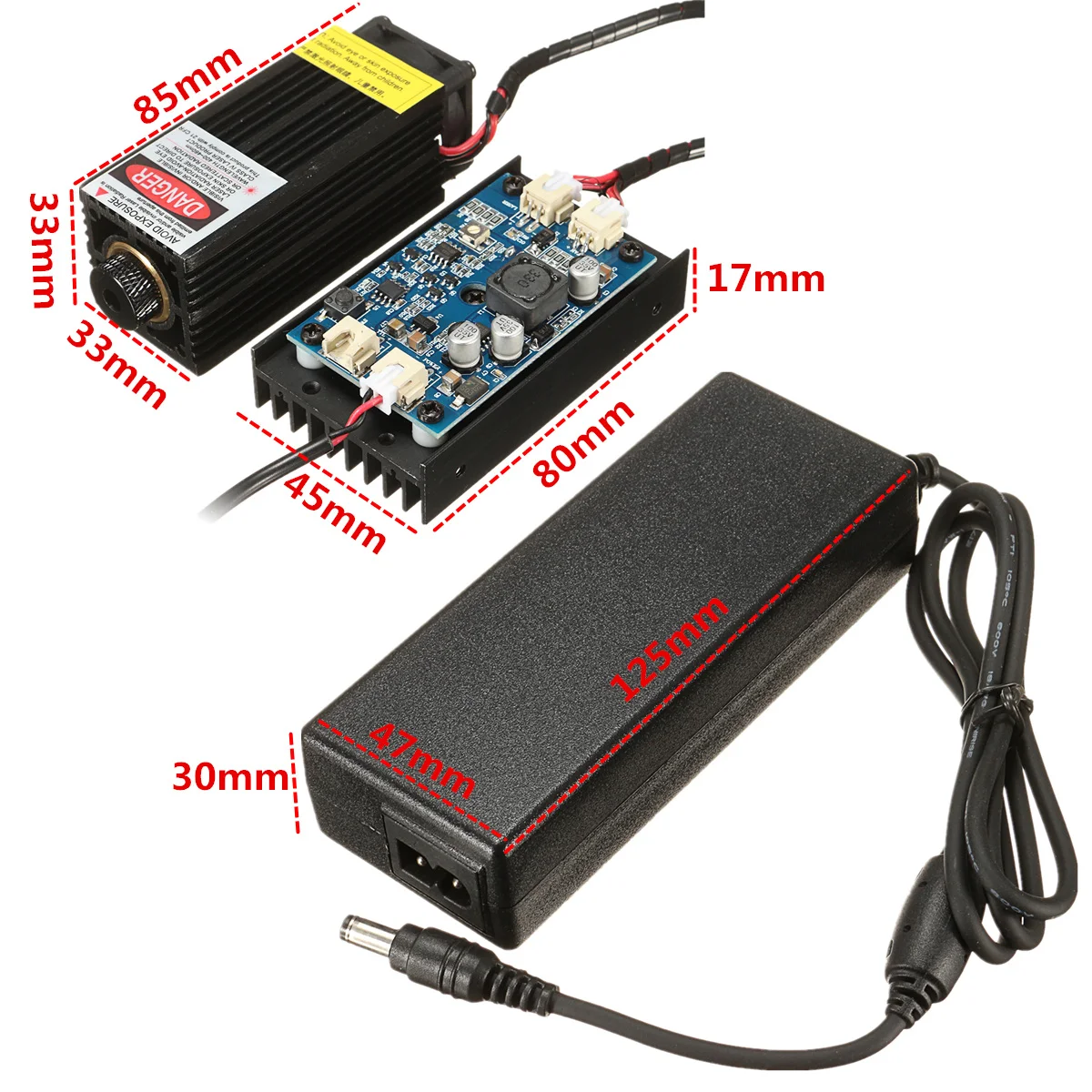

| Size | As the picture shown |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/ Plywood/Foam Paper/Anodized Aluminum |
| Can Not Engrave | Metal/Glass/Ceramics/PCB/Reflective Material/ Transparent Material |
Features:
1. Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
2. Make of Aluminum material,durable and solid,Adjustable focal length.

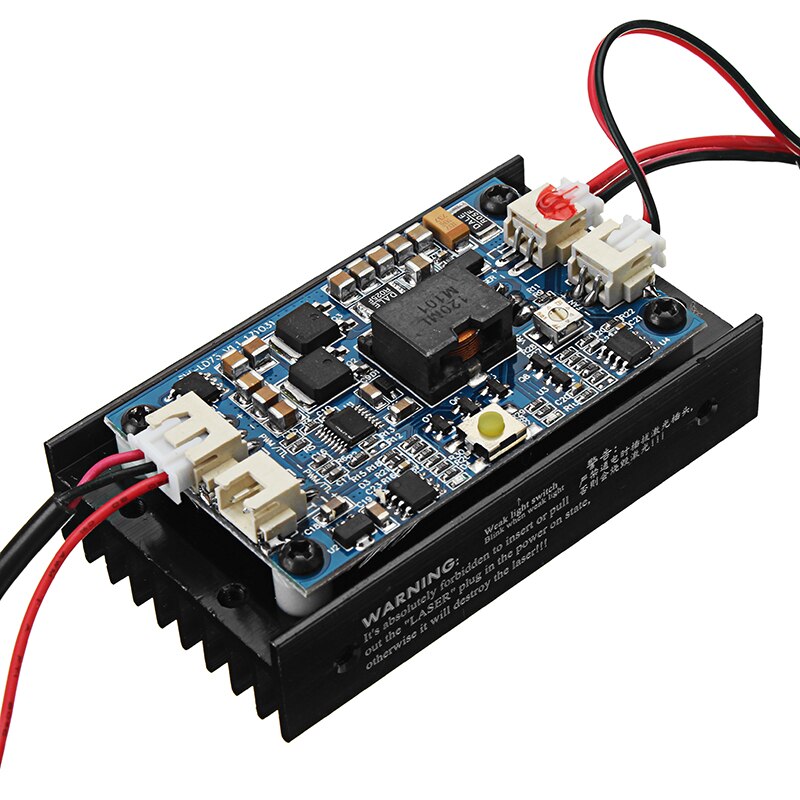

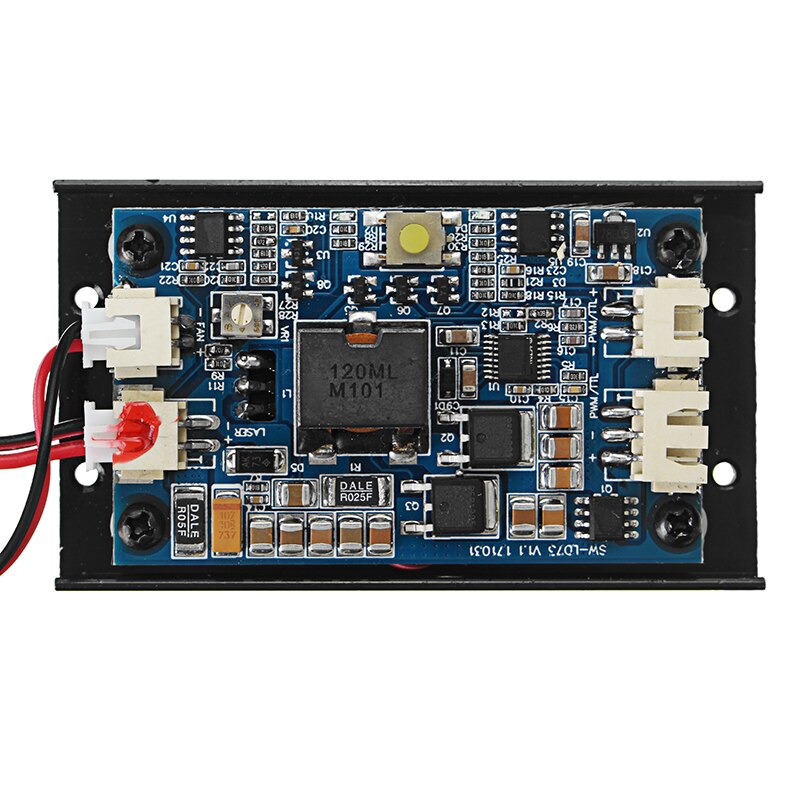

3. Aircraft aluminum TTL driver board with cooling fan ensure long working time continuously.
4. Can carving aluminum,ceramics, stone, wood, bamboo, leather, plastics, etc.(Not suit for iron or other metal)
Note(Please pay attention):
1. Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser
module more than 30 minutes per time and casue the damage ), please feel free to ask our customer service for a help.
4. If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
5. If you have any quality problem about the machine, please feel free to contact us. Many operative problem can be solved according
to your video and problem description. Thank you in advance.
6. This laser module is compatible with our EleksMaker machine.

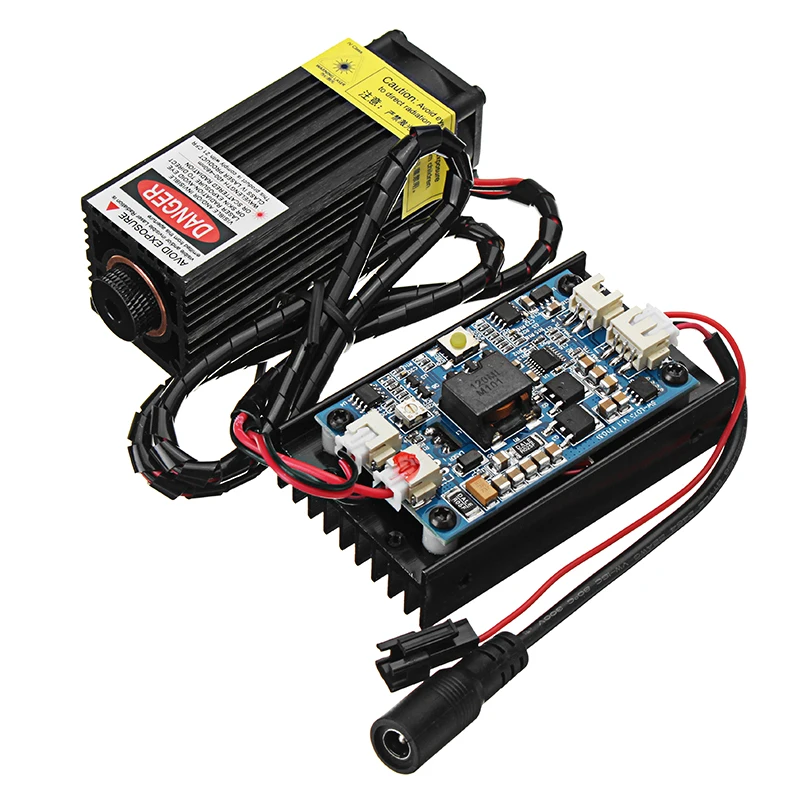

Package included:
1 x 5W Laser Engraving Module
1 x Power Adapter
