Description

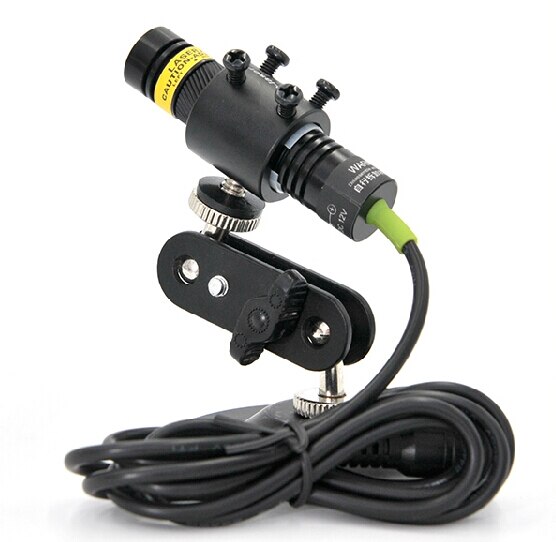

515nm 10mWGreen Spot/Line/Cross Laser Module Laser Diode High Quality Adjustable Focus



Product information:

Wavelength: 515nm

Output power: 10mW

Supply voltage: 12V

Operating current: 44mA

Spot mode: Spot

Product material: aviation aluminum

Working temperature: +-50°C

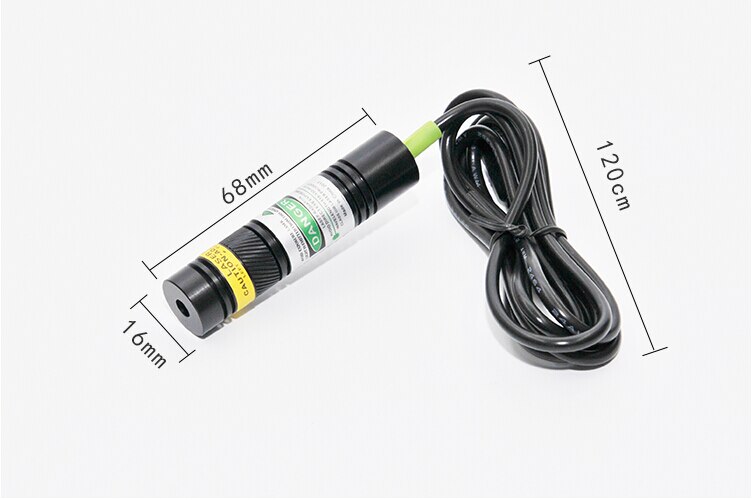

Dimensions: 16*68mm (focusable)

Output band: visible light

The best working distance: 0-15 meters

Weight: 0.34kg



Applicable industry:

Printing Machines / Embroidery Machines / Stitching Machines / Apparel Processing / Cutting Machines / Sewing Equipment, etc.



Features:

1. dedicated power supply:

Supporting special power supply, with strong anti-interference, high stability, suppression of inrush current and slow start, etc., especially suitable for harsh working environment, can effectively ensure product stability and service life.

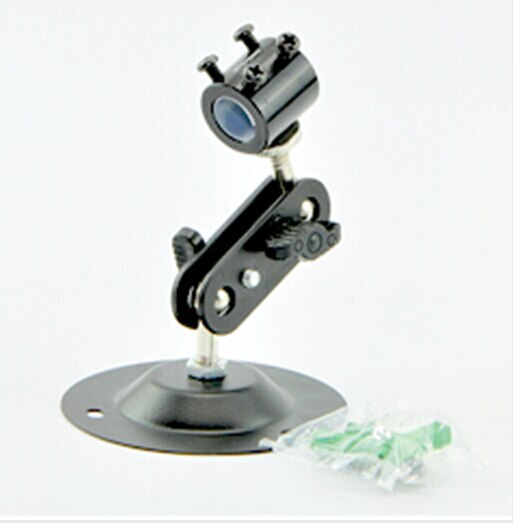

2. Industrial bracket:

Supporting special brackets, with good thermal conductivity and flexibility, so that the laser sniffer can be installed in any vertical or horizontal plane, and make it adjustable 360 degrees in any angle of three-dimensional space, has achieved the best results.



3. Laser:

Adopt original imported diode, small volume, clear light, large angle of light, high straightness. Can fix the focus while also adjusting the thickness of the light, the customer can adjust the focus according to various requirements



Products include:

1*515nm 10mW laser

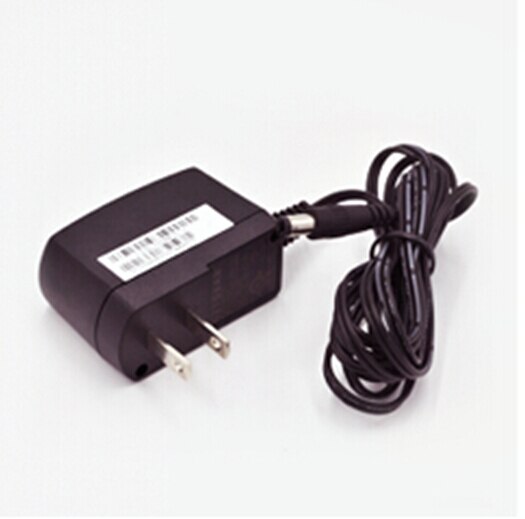

1*12V power adapter

1*stand



Shipping & Delivery

We provide free shipping to international via China Post Airmail or Hong Kong Post Airmail, and every parcel will be registered with tracking number. We can also ship by UPS/EMS/DHL/FedEx for alternative shipping method for corresponding fees. International customers may experience delays by customs or national post providers. Review your duty-free limits. Please let us know before payment if you need split shipment.



Time of Delivery



The time to ship to international via China Post Airmail or Hong Kong Post Airmail quite depends on diffrent desination of the world, it is also subject to change due to the local weather conditions, postal policy and custom checking. Based on the postal Air mail rules and our experience, kindly please be noted that To United States / United Kingdom / Australia, it takes around 10-15 business days; To Canada, it takes around 12-18 business days; To Brazil / South America, it takes around 25-35 business days. To Italy / France / Spain / Germany/ Eastern Europe, it takes aournd 15-20 business days.



Returns & Replacements & Repair



We accept returns & replacements within 7 days from the day the customer receive the products, please make first contact within 7 days from receiving the order. Products should be returned in original condition. As a benefit to our customers, we also provide repair within 3 months from the day when this item is shipped out, after repair is done, we will send you the item, but the customer should pay both shipping ways.
