515nm 30mWGreen Spot/Line/Cross Laser Module Laser Diode High Quality Adjustable Focus


SKU: 32890487549 Category:


515nm 30mWGreen Spot/Line/Cross Laser Module Laser Diode High Quality Adjustable Focus


Product information:

Wavelength: 515nm

Output power: 30mW

Supply voltage: 12V

Operating current: 88mA

Spot mode: Spot

Product material: aviation aluminum

Working temperature: +-50°C

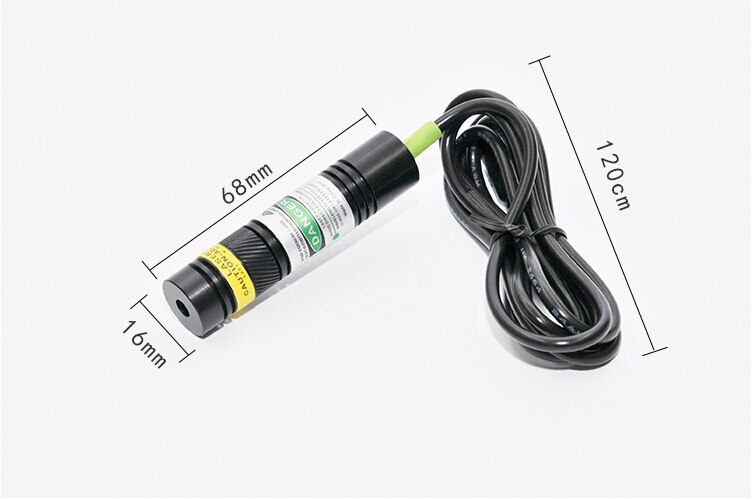

Dimensions: 16*68mm (focusable)

Output band: visible light

The best working distance: 0-15 meters

Weight: 0.34kg


Applicable industry:

Printing Machines / Embroidery Machines / Stitching Machines / Apparel Processing / Cutting Machines / Sewing Equipment, etc.



1. dedicated power supply:

Supporting special power supply, with strong anti-interference, high stability, suppression of inrush current and slow start, etc., especially suitable for harsh working environment, can effectively ensure product stability and service life.

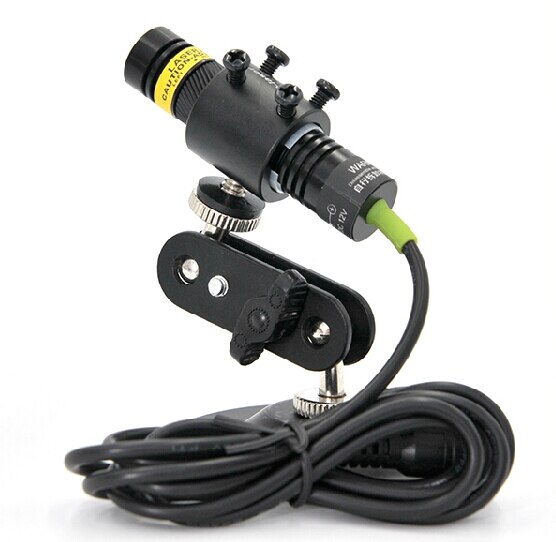

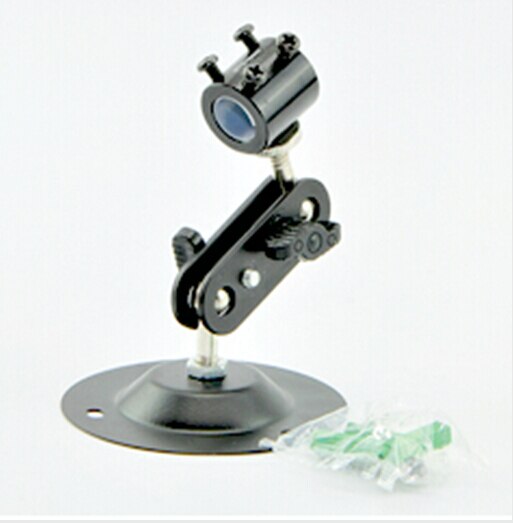

2. Industrial bracket:

Supporting special brackets, with good thermal conductivity and flexibility, so that the laser sniffer can be installed in any vertical or horizontal plane, and make it adjustable 360 degrees in any angle of three-dimensional space, has achieved the best results.


3. Laser:

Adopt original imported diode, small volume, clear light, large angle of light, high straightness. Can fix the focus while also adjusting the thickness of the light, the customer can adjust the focus according to various requirements


Products include:

1*515nm 30mW laser

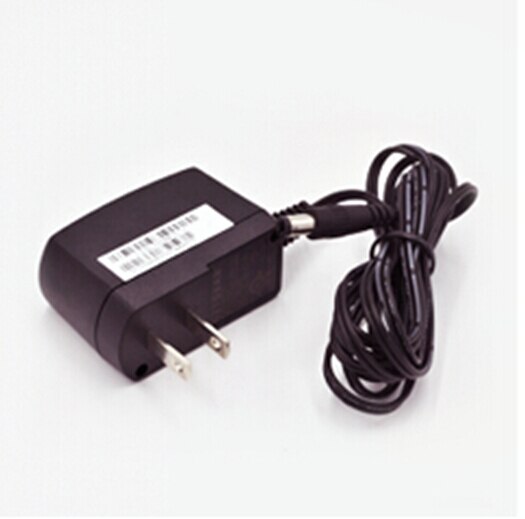

1*12V power adapter
