Technical Data

Laser colour: R G B
Wavelength: 638nm 520nm 445nm
Laser power: 1800mW 1100mW 3100mW
Power output: 6W
Beam size: ca. 5mm
Modulation: Analog/TTL
Net Weight: 0.72kg
Packaging: Carton+foam
Laser-grade: Class 4
Output stability: ±5%
Driver input voltage: DC 11～14V
Modulation: TTL/Analog
TTL trigger mode: Active high（＞DC 2.0V）
TTL Output Power: ＞1K HZOutput power at work=Continuous power x 40%
Working frequency: ＜30KHz
Analog control input voltage: DC 0.5～4.95V
Ambient temp: -30℃～40℃
Working life: ＞10000 Hours
Preheat time: ＜1 Min

Packing List

After opening the package, check if all the items hereunder are inside, and contact your supplier if anything is missing:

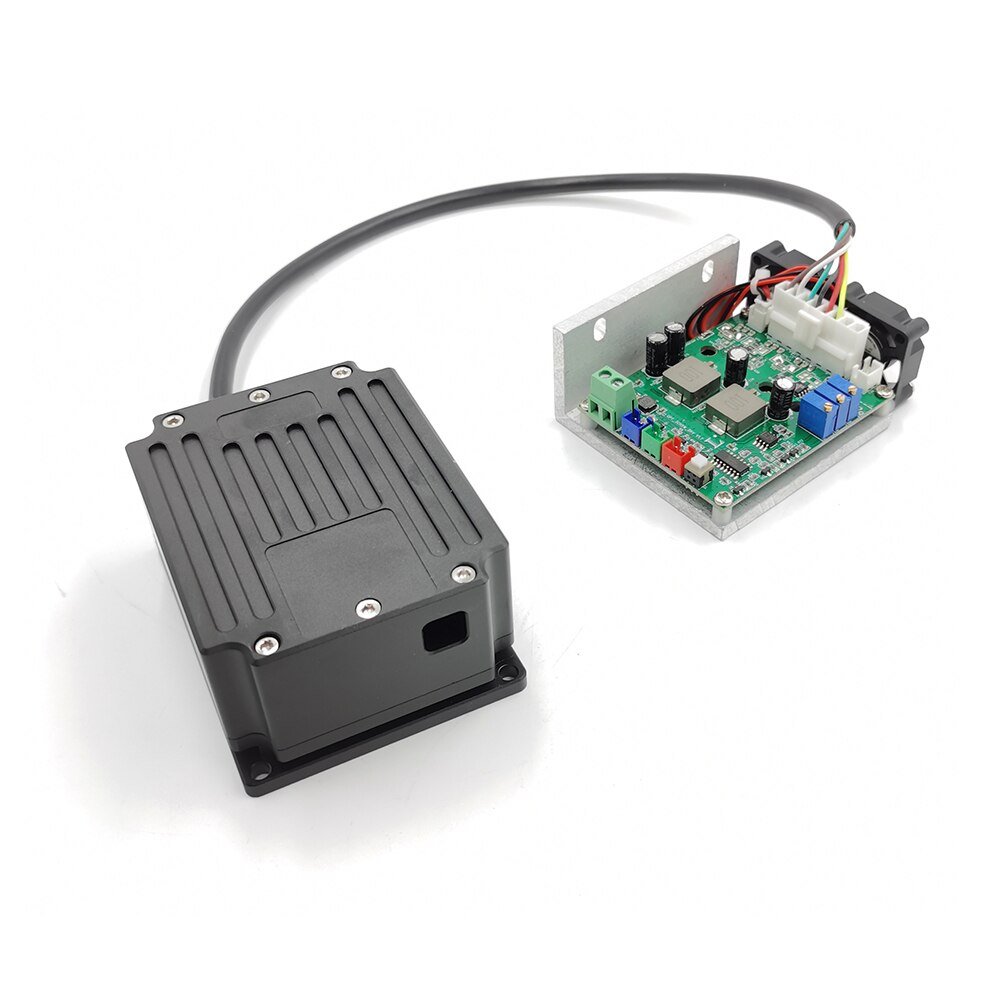

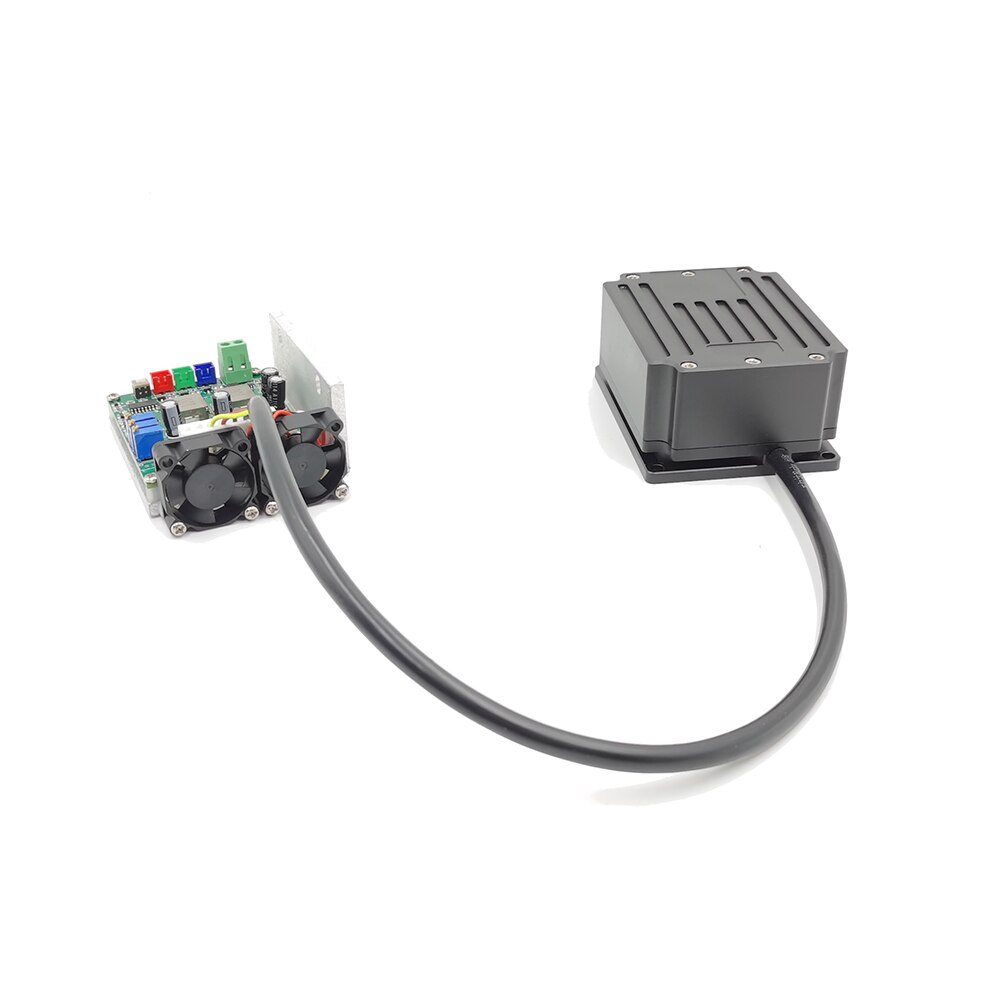

1 x Module

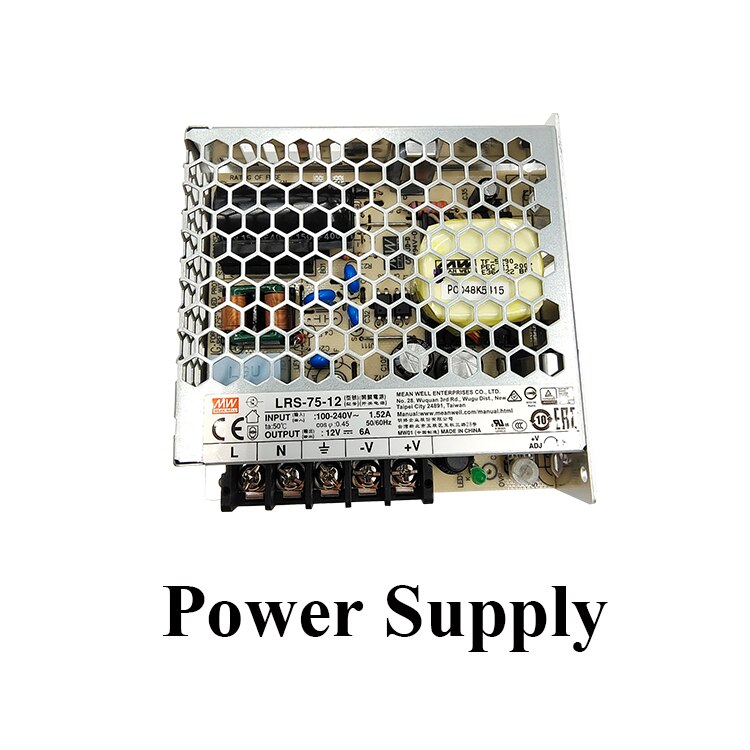

1 x Power Supply

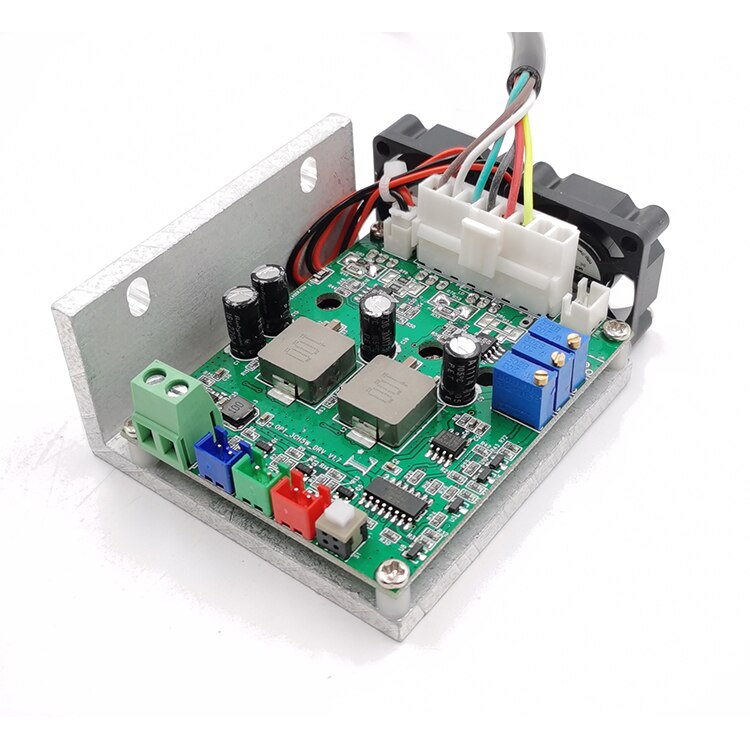

1 x Driver
