638nm SM Single Module Semiconductor Laser Fiber Coupled Diode Laser Square & Arched

$490.00

Category:

Description

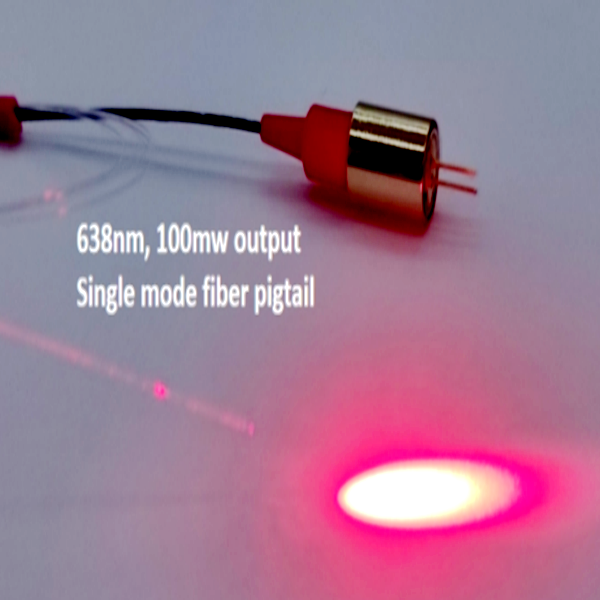

638nm SM Single Module Semiconductor Laser Fiber Coupled Diode Laser Square & Arched

638nm Semiconductor Laser SM Single Module Fiber Coupled Diode Laser Square or Arched.Newest Semiconductor 638nm SM Fiber Coupled Diode Laser – a fiber pigtailed red laser product with excellent output power, superior output beam quality.

Features:
High output power
With isolation of 1064nm
Excellent thermal conductivity
Excellent beam quality

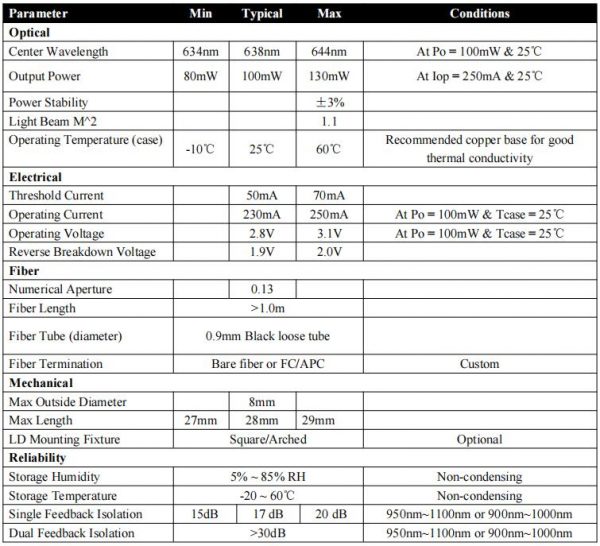

Specifications:
Central Wavelength:638nm
Min Wavelength:634nm
Max Wavelength:644nm
Output power: 100mW
Power Stability:+-3%
Light Beam M2:1.1
Threshold Current:50mA Max 70mA
Operating Current:230mA Max 250mA<
Operating Voltage:2.8V Max 3.1V
Reverse Breakdown Voltage:1.9V Max 2.0V

Numerical Aperture:0.13
Fiber Length: > 1.0m (it can be customized)

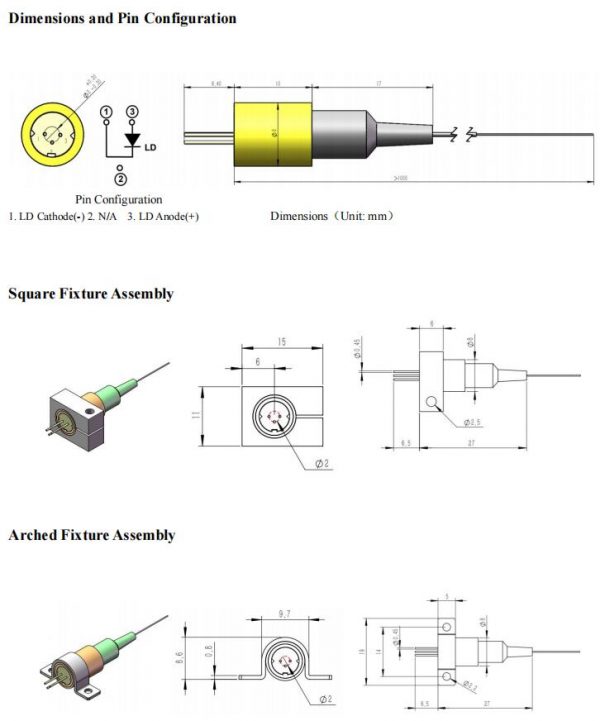

Max Outside Diameter:8mm
Max Length:28mm
Ld Mounting Fixture:Square/Arched

APPLICATIONS<
Indicator light for laser system
RGB source for laser displays<
Laser source for optical test systems
Laser source for bio-detection



60 PDF 638nm Semiconductor Laser SM Single Module Fiber Coupled Diode Laser
