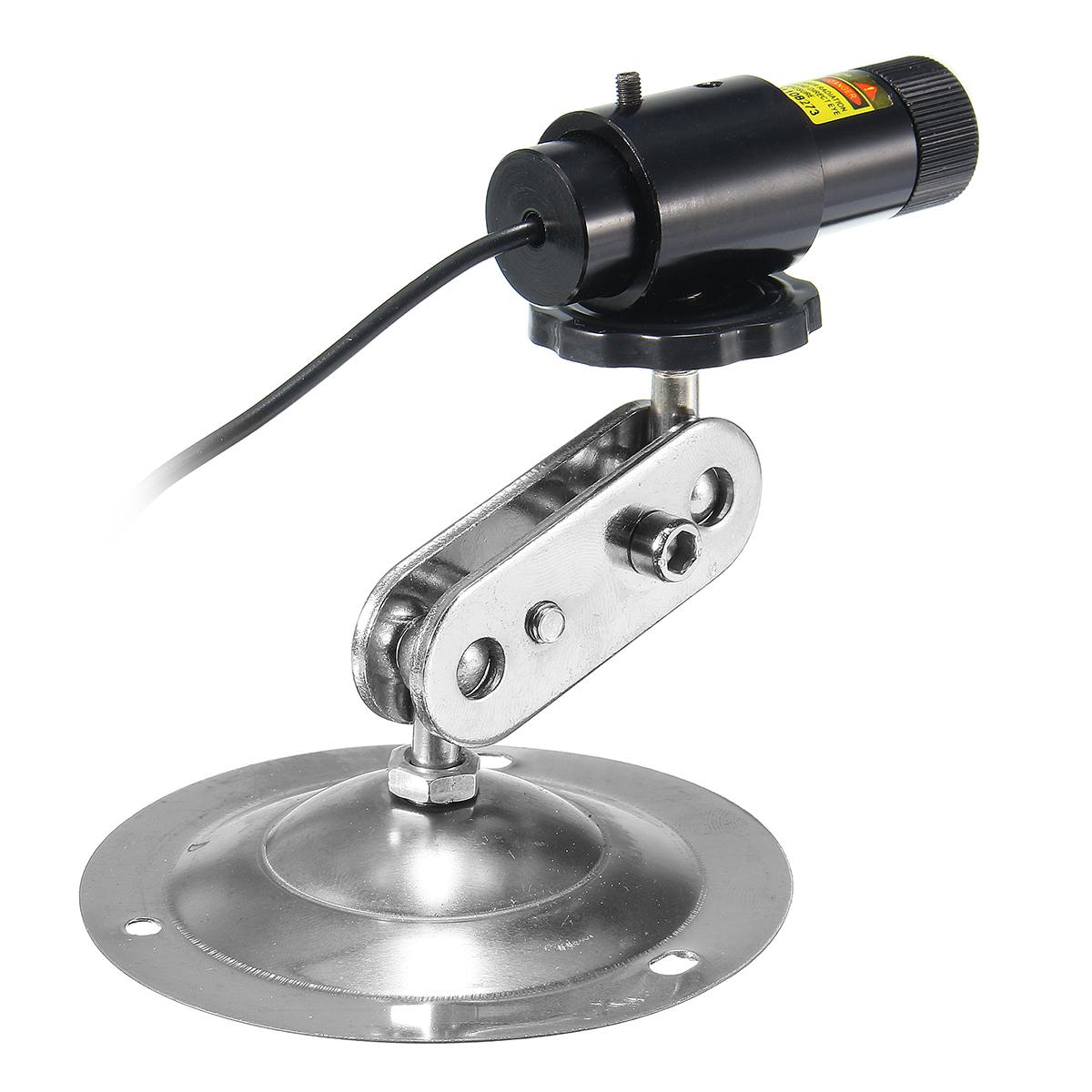

650nm 100mW Red Laser Line Module Locator For Cutting Machine Adapter & Mount Industrial Woodworking Stone


SKU: 32977279886 Category:


High-brightness word line, indoor and outdoor common.
High stability, can work for a long time.
Aviation aluminum coated insulating paint shell, can be fully heat and anti-shock and anti-static.
The use of the die and the lens out of the red line fine and uniform, collimation and stability is very high.
Applicable to stone cutting, diamond positioning, stone bridge cutting machine, marble cutting and so on.
Focusable 648nm 650nm 100mW Red Laser Line Module
Not waterproof

Color: Black
Size: Approx. 60x17mm/2.36"x0.66"
Divergence : 0.1-2mrad
Working voltage:DC 3.6V-5.5v
Line diameter: min 0.5mm at 1 meter
Duty cycle: 2 hours on, 5 minutes off
Working temperature:10℃~35℃
Storage temperature:-40℃~80℃
Weight: 182g

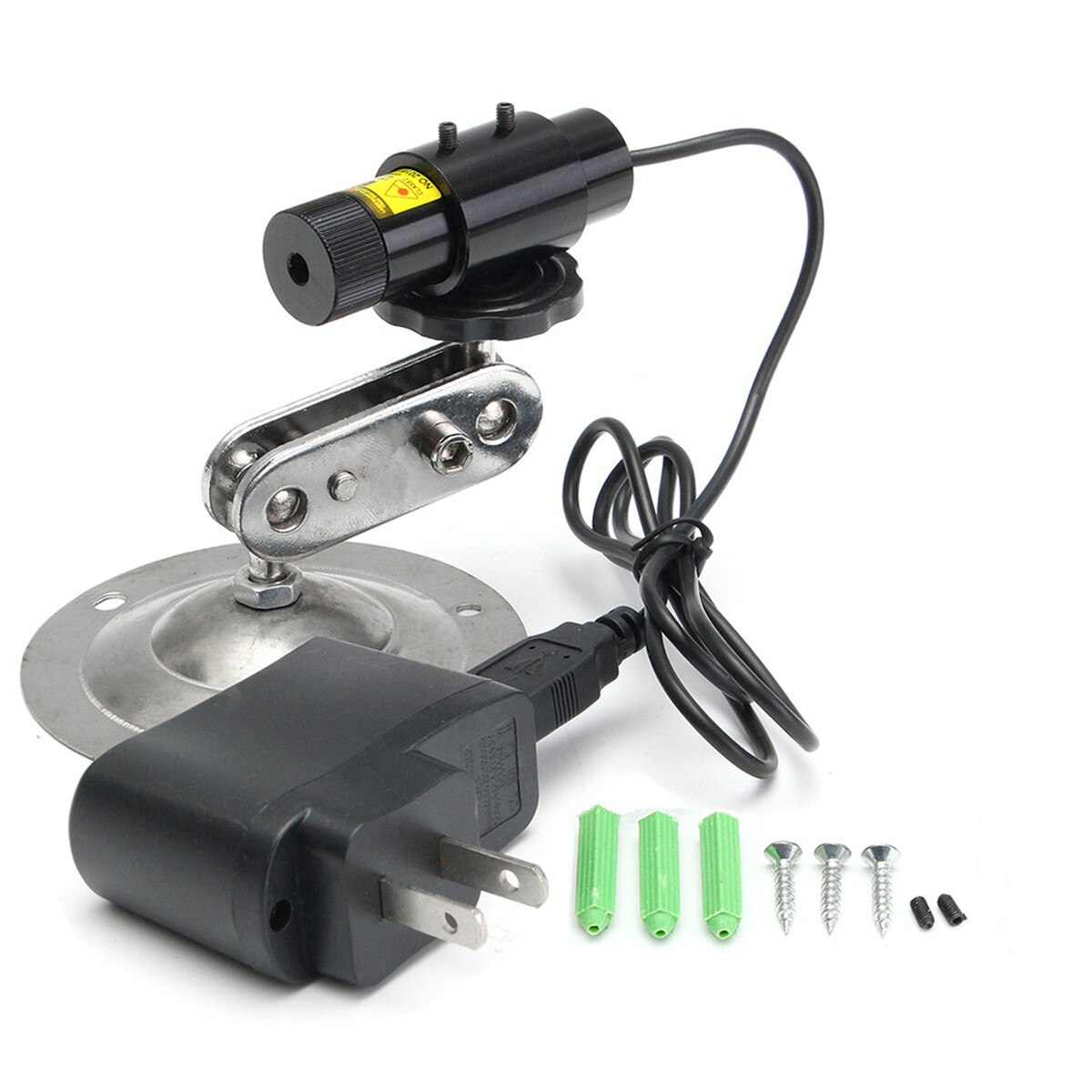

Package Include:
1x Red laser cutting machine LINE module locator
1x bracket

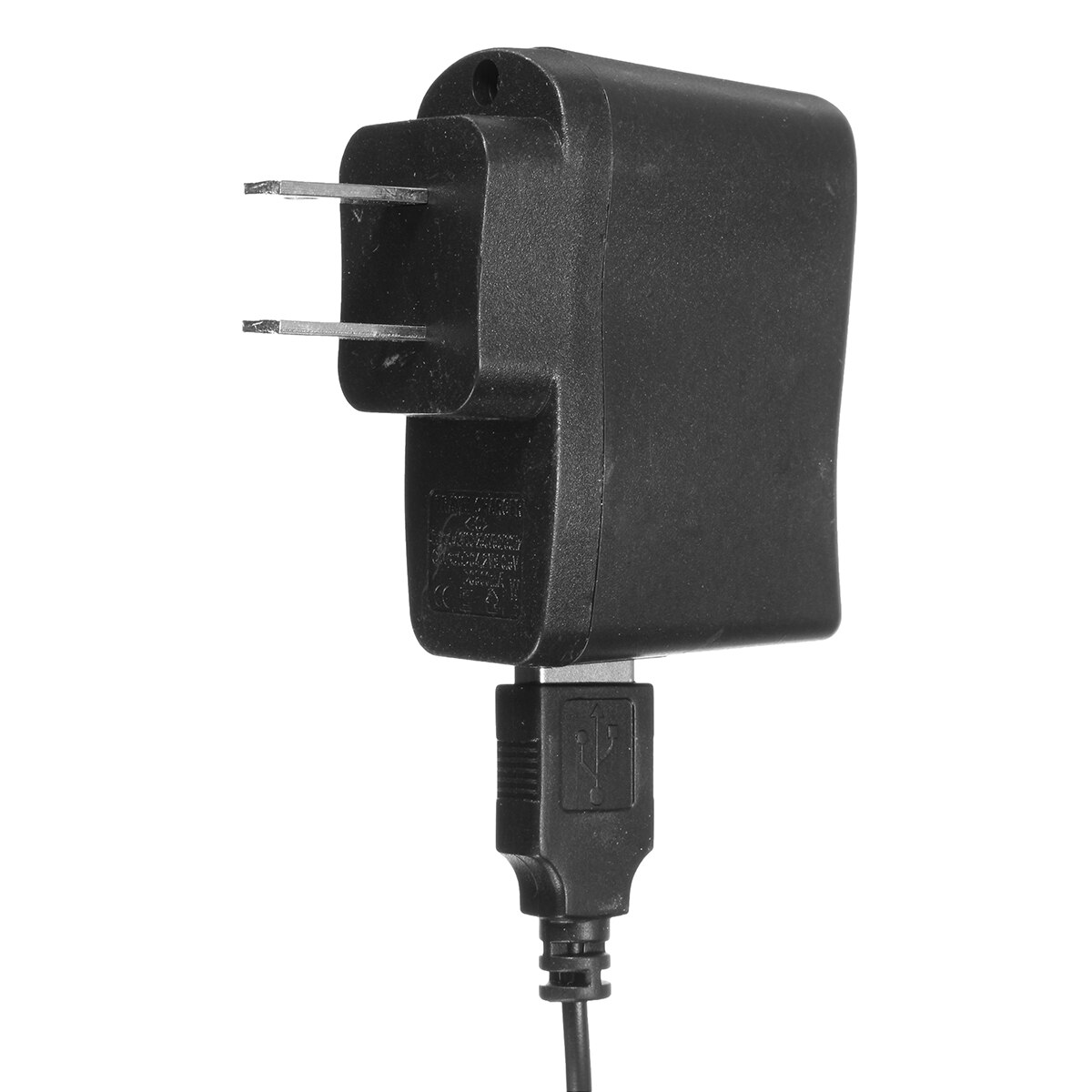

1x US plug adapter
1x mount

– Please allow 1-2mm differs due to manual measurement.
– Due to the different display and different light, the picture may not reflect the actual color of the item. Thank for your understanding.
